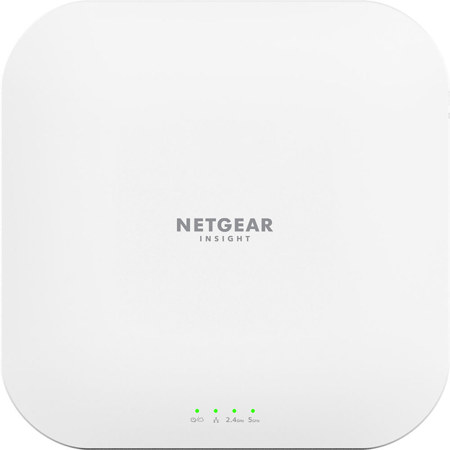

Netgear WAX620 AX3600 Dual Band PoE Multi-Gigabit Wi-Fi 6 Access Point

SKU: NEWAX620100N MFR: WAX620-100NAS
Earn VIP Reward Points

Key Features

  • Experience lightning-fast Wi-Fi 6 speeds, perfect for seamless streaming and gaming in busy environments.
  • Ensure robust network security with WPA3, safeguarding your data in both home and business settings.
  • Enjoy reliable, extended coverage throughout your space thanks to advanced dual-band technology.
  • Effortlessly expand your network with Power over Ethernet (PoE+) for flexible and simple installation.
  • Manage your wireless access points easily using the intuitive mobile app, designed for convenience.
  • Connect numerous devices simultaneously with support for up to 256 clients, ideal for growing networks.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Netgear WAX620 Specifications

Wireless

Wireless

Jump to...
  • Wi-Fi

    Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz) with MU-MIMO Support (4 x 4)

  • Number of Antennas

    1

  • Antenna Gain

    3.1 to 4.3 dBi

  • Supported Protocols

    MAC Filtering
    SSID

  • Antenna Placement

    Internal

  • Bluetooth

    No

Performance

Jump to...
  • Throughput

    3600 Mb/s Total
    5 GHz: 2400 Mb/s
    2.4 GHz: 1200 Mb/s

Interface

Jump to...
  • Networking I/O

    1x RJ45 2.5 GbE WAN PoE+ (30 W, 802.3at)

  • USB Sharing Support

    No

Security

Jump to...
  • Guest Network Support

    Yes

  • Wireless Security

    WPA, WPA2, WPA2-Enterprise, WPA3, WPA3-Enterprise

  • Lock Slot

    No

Management

Jump to...
  • Operation Modes

    Access Point, Bridge, Mesh, Repeater

  • Supported Clients

    256

  • Max SSIDs Supported

    8

  • Mobile App Compatible

    Yes: Android & iOS

Hardware

Jump to...
  • Media Card Reader

    Yes

  • Supported IEEE Standards

    802.11a, 802.11ac, 802.11ax, 802.11b, 802.11g, 802.11n, 802.3af (PoE 15.4 W), 802.3at (PoE+ 30 W)

Electrical

Jump to...
  • Input Power

    12 VDC at 3.5 A

  • Power Consumption

    25.5 W

General

Jump to...
  • Environmental Resistance

    No

  • Operating Conditions

    32 to 104 Degree F (0 to 40 Degree C) at 10 to 90% Humidity

  • Storage Conditions

    -4 to 158 Degree F (-20 to 70 Degree C) at 5 to 95% Humidity

  • Mount Options

    Wall, Ceiling

  • Dimensions

    8.1 x 8.1 x 1.4" (205.7 x 205.7 x 34.3mm)

  • Weight

    1.7 lbs (783g)

  • UPC Code

    606449154504

About Netgear WAX620

Get powerful and reliable Wi-Fi 6 connectivity for all your devices, even in high-density environments. Simplified enterprise-grade security and networking for the smaller business.

Total Network Solution helps you get the most out of your network
Easily deploy, manage, and monitor NETGEAR Insight managed routers, switches, and access points all from a single pane-of-glass.

Industry's Highest Performance Access Point
WAX620 is the industry's highest performance Wi-Fi 6 SMB dual band 4x4 access point with unprecedented performance, speed, capacity and best price-performance.

Best Investment for Today and Tomorrow
WAX620 is backward and forward compatible with all NETGEAR Insight Managed access points and all existing Wi-Fi 6 and Wi-Fi 5 devices, making it the best investment for today and years to come.

Enterprise Level Security
Enjoy enterprise-level security without the enterprise budget with WPA3 and 8 separate wireless networks (SSIDs) for your employees, guests, and more.

Monitor and Manage from Anywhere
User-friendly cloud monitoring and management through the NETGEAR Insight cloud portal and app.

Performance

High-Performance Business Wi-Fi
Faster and more reliable dual band Wi-Fi 6 with 8 streams and up to 2.4Gbps in 5GHz band and 1.2Gbps in 2.4GHz band.

Ideal for High Density Environments
Ultimate Wi-Fi performance for schools, hotels, restaurants, and conference centers.

Greater Network Capacity
Enjoy 4x more connection capacity than your current Wi-Fi and improved efficiency for longer battery life.

Seamless Wireless Mesh
Wire-free installation with other WAX620, WAX610, WAX610Y, WAC540, or WAC564 creates the perfect seamless business network.

Multi-Gigabit Speed
Includes a 2.5 Gbps Ethernet port with PoE for high speed wired network connectivity and easy wiring.

Ease of Use

Easy Setup
Set up, configure, and manage with NETGEAR Insight.

Flexible Mounting
Easy to securely install on the wall of a suspended ceiling with the hardware included.

Security

Business-Level Security
WPA3 for the highest level of Wi-Fi connection security.

8 Wireless Networks (SSIDs)
Separate and secure networks for admin, guests, employees and IoT devices like cameras, locks and more.

Separate VLANs
Keep admin, employee, visitor, HR, Finance department networks safely separated from each other.

Netgear WAX620 Features

  • Business class Wi-Fi based on next generation 802.11ax Wi-Fi 6 technology on both 5.0GHz and 2.4GHz bands. (Backward compatible to 802.11b/g/n/a/ac)
  • Dual band 4x4 (2.4GHz and 5.0GHz) 8 streams of data for an aggregate throughput of up to 3.6Gbps
  • Instant Wi-Fi Mesh forming wireless backhaul with other WAX620, WAC540 or WC564 units to form a Wi-Fi mesh network
  • 40% more throughput in 4-stream 5.0GHz band and 100% more throughput in 4-stream 2.4GHz band compared to previous generation
  • 4 times more client device supported
  • Enterprise security and Enhanced Open security, such as WAP3, WPA Enterprise, 8x SSID and VLAN
  • Basic Service Set Coloring (BSS Coloring) enabling significant improvement in radio frequency channel efficiency and reduction of interference
  • Orthogonal Frequency Division Multiple Access (OFDMA) allowing simultaneous services to multiple devices in the same channel thus improving bandwidth efficiency and reducing latency
  • 2.5GbE port, backward compatible with 100/1000Mbps Ethernet, supported by NETGEAR GSM4210P, MS510TXPP and other multi-gig Ethernet switches
  • Target Wake Time (TWT) allows more efficient power usage resulting in longer battery life in Wi-Fi 6 client devices
  • Beamforming+; Advanced 6th generation Wi-Fi technology such as up and downstream MU-MIMO
  • One 802.3at 2.5Gbps PoE port. Remote management and monitoring from NETGEAR Insight app or Cloud portal for unrivaled management experience of your wireless network
  • App managed. Faster installation through NETGEAR Insight app or Cloud portal. No additional hardware needed

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience lightning-fast Wi-Fi 6 speeds, perfect for seamless streaming and gaming in busy environments.
  • Ensure robust network security with WPA3, safeguarding your data in both home and business settings.
  • Enjoy reliable, extended coverage throughout your space thanks to advanced dual-band technology.
  • Effortlessly expand your network with Power over Ethernet (PoE+) for flexible and simple installation.
  • Manage your wireless access points easily using the intuitive mobile app, designed for convenience.
  • Connect numerous devices simultaneously with support for up to 256 clients, ideal for growing networks.

What's in the box:

  • Netgear WAX620 AX3600 Dual Band PoE Multi-Gig Wi-Fi 6 Access Point
  • Wall/Ceiling Mount Set
  • User Manual
  • Netgear 5 Year Limited Warranty
