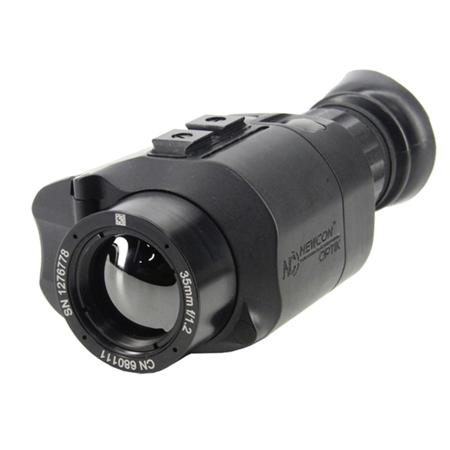

Newcon Optik TVS 11 35mm 30Hz Thermal Monocular, 388x284

SKU: NETVS11640N MFR: TVS 11 (640)
Earn VIP Reward Points

Key Features

  • Experience superior thermal imaging with a high-resolution 388x284 display for clear visuals.
  • Achieve enhanced detection range with this thermal monocular, spotting targets up to 1280 meters.
  • Enjoy versatile mounting options; designed for helmet, head, weapon, or handheld thermal use.
  • Operate in extreme conditions; this thermal imager functions reliably from -40°C to 80°C.
  • Benefit from a smooth 30 Hz refresh rate, providing fluid and real-time thermal observation.
  • Maximize battery life with up to 8 hours of operation, ensuring extended thermal surveillance.
See More Product Details
Special Order?Estimated to Ship: 09/05/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Newcon Optik TVS 11 35mm 30Hz Thermal Monocular, 388x284 Specifications

  • Designed for

    Helmet, head and weapon mounting as well as handheld use

  • Full Frame Rates

    30 Hz

  • Zoom

    2x, 4x (8x optional)

  • Pixel size

    17Mu

  • Operating Wavelength

    7.5 to 13.5micrometer

  • Sensitivity

    <50 mK at F1.0 (milikelvin)

  • Video interface

    RCA

  • DRI range

    1280 / 320 / 160m (4199.42' / 1049.86' / 524.93')

  • Display type and resolution

    MOLED, 800x600 (pixels)

  • Objective focal length / F Number

    35mm / F1.20

  • Field of view

    18 x 14 deg.

  • Eye relief

    25mm

  • Dioptric correction

    -6 to +2

  • Battery Type

    2x CR123 Lithium

  • Shock Resistance

    10oz / 283.49g

  • Hours of Operation

    6 (rechargeable) / 8 (battery)

  • Temperature

    -40 to 80 deg. C / -40 to 176 deg. F

  • Dimensions

    130 x 80 x 60mm

  • Weight

    400g / 14.11oz

About Newcon Optik TVS 11 35mm 30Hz Thermal Monocular, 388x284

The TVS 11 and TVS 12C are thermal handheld monoculars. Both devices are well suited to a variety of law enforcement, search and rescue and industrial applications. Both devices utilize passive infrared sensing technology allowing users to detect extremely small differences in the temperature of objects, people and other heat sources within the fi eld of view. Unlike traditional night vision devices, the TVS 11 and TVS 12C can be operated 24 hours a day, in daytime and at night, even in the total darkness of an enclosed space.

Both devices can also see through smoke, fog and other obscurants. Both units feature "black hot" and "white hot" image polarity, while the TVS 12C has additional display color options including sepia and rainbow. Both units can also be connected to external display devices allowing other parties to view the observed image in real time. The TVS 11 is designed for helmet, head and weapon mounting as well as handheld use. The TVS 12C is designed for handheld and tripod mounted use.

Key Features

  • Experience superior thermal imaging with a high-resolution 388x284 display for clear visuals.
  • Achieve enhanced detection range with this thermal monocular, spotting targets up to 1280 meters.
  • Enjoy versatile mounting options; designed for helmet, head, weapon, or handheld thermal use.
  • Operate in extreme conditions; this thermal imager functions reliably from -40°C to 80°C.
  • Benefit from a smooth 30 Hz refresh rate, providing fluid and real-time thermal observation.
  • Maximize battery life with up to 8 hours of operation, ensuring extended thermal surveillance.

What's in the box:

  • Newcon Optik TVS 11 35mm Thermal Monocular
  • Objective Lens Cap
  • 2x CR123 Battery
  • Car Power Adapter
  • Video/Charge Cable
  • Wrist Strap
  • Head Gear
  • TVS Head Gear Adapter
  • Soft Case
  • Newcon Optik 1 Year Limited Warranty
