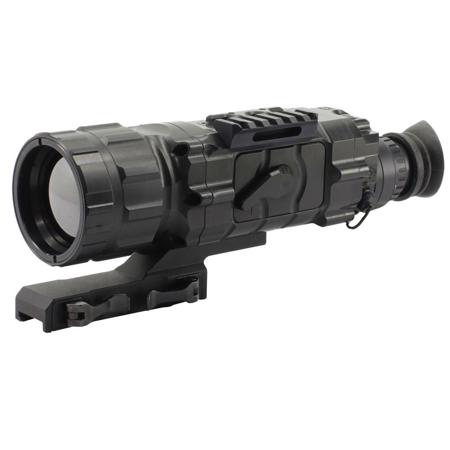

Newcon Optik 1x54mm Thermal Riflescope, 30Hz, 388x284

SKU: NETVS13M640Q MFR: TVS 13M (640)
Earn VIP Reward Points

Key Features

  • Experience superior clarity with the 388x284 thermal resolution for detailed imaging.
  • Detect targets up to 2200m with this riflescope, enhancing your situational awareness.
  • Enjoy extended use with an 8-hour continuous battery life for long operations in the field.
  • Customize your view with 2x/4x digital zoom, perfect for detailed thermal observation.
  • Operate confidently in any weather; this thermal riflescope is MIL-STD-810 waterproof.
  • Quickly identify threats with a fast 3-second startup time; be ready when it matters most.
See More Product Details
Special Order?Estimated to Ship: 08/21/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Newcon Optik TVS 13M 54mm Thermal Riflescope, 30Hz, 388x284 Specifications

  • Field of view

    10.4x8.3 deg.

  • Eye Relief

    30mm

  • Operating Wavelength

    7.5 - 13.5 micrometer

  • DRI range

    2200 / 560 / 280 (7217.76 / 1837.25 / 918.62')

  • Pixel Size

    17Mu

  • Sensitivity

    <50 mK at f1.0 (milikelvin)

  • Refresh Rate

    25 Hz (PAL)

  • NETD

    0.08K

  • Continues Operation

    8 hours

  • Start up Time

    <= 3 seconds

  • Detection range

    <1500

  • MTBF

    >=20,000 H (Calculated)

  • Controls

    On/Off
    Brightness Contrast
    Video Mode
    Standby/Convert

  • Digital Zoom

    2.0x, 4.0x (8x optional)

  • Focal Length

    54mm Lens

  • Focal Ratio

    f/1.25

  • Anti-shock Protection

    Yes

  • Lens Coating

    High efficiency, Anti-scratch

  • Battery

    6 x AA or Rechargeable Powerpack

  • Tripod Mount

    Yes

  • Reticles

    6 Options

  • Video Interface

    RCA

  • Electrical Characters Type

    Multiday, Power Input, Video Output

  • Display

    800 x 600 color MOLED

  • Dioptric adjustment

    -6 to +2

  • Waterproof

    MIL-STD-180

  • Floating

    No

  • Shock Resistance

    300g / 10.58oz

  • Detection Recognition Distance

    Lens: 54mm
    Man Detection: 2200m / 7217.76'
    Man Recognition: 560m / 1837.25'
    Man Identification: 280m / 918.62'
    Tank Detection: 6600m / 21653.28'
    Tank Recognition: 1700m / 5577.36'
    Tank Identification: 850m / 2788.68'

  • Operating Temperature

    -40 to 50 deg. C / -40 to 122 deg. F

  • Dimensions

    280 x 68 x 78mm / 11.02 x 2.68 x 3.07"

  • Weight

    Without battery and mount: 0.950kg / 2.09lbs
    With mount: 1.0kg / 2.20lbs
    With battery and mount: 1.2kg / 2.65lbs

About Newcon Optik TVS 13M 54mm Thermal Riflescope, 30Hz, 388x284

Where precision and reliability are paramount, the TVS 13M Thermal Riflescope stands out as a high-quality, advanced piece of technology designed for critical missions and challenging environments. Engineered for both medium and long-range target engagement, this innovative thermal riflescope is a vital asset for observation, reconnaissance, and tactical operations, making it an indispensable tool for border patrol, law enforcement, tactical teams, and special operations forces.

The TVS 13M is not only durable but also versatile, coming equipped with a M1913 quick-release mount for seamless integration with a variety of firearms. Additionally, its capability to function as a hand-held observation device adds to its multifunctional appeal. The high-resolution 388x284 thermal sensor provides a clear and detailed image, crucial for long-range accuracy, while the fast 30Hz frame rate ensures smooth tracking of moving targets, offering a significant advantage over slower alternatives.

This thermal riflescope operates flawlessly 24/7, with no performance degradation in daylight, smoke, or fog, setting it apart from traditional night vision devices. Its robust construction is capable of withstanding the demands of close-quarter battles as well as the recoil from high-caliber long-range rifles, ensuring reliable performance under the most strenuous conditions.

The TVS 13M is feature-rich, offering multiple image polarity options such as black hot/white hot, sepia, and rainbow, allowing for optimal image contrast in various scenarios. The video output capability is a strategic addition, enabling real-time observation and information sharing among unit members.

In summary, the TVS 13M Thermal Riflescope is an exceptional choice for professionals seeking an advanced, reliable, and innovative optical solution for critical missions. Its superior image clarity, rapid refresh rate, and robust feature set make it a force multiplier in the field of tactical and reconnaissance operations.

Newcon Optik TVS 13M 54mm Thermal Riflescope, 30Hz, 388x284 Features

  • Advanced 1x54mm Thermal Riflescope designed for critical tactical and reconnaissance operations
  • High-resolution 388x284 thermal sensor for clear, detailed imaging in all conditions
  • Fast 30Hz frame rate for smooth tracking of moving targets
  • 24/7 operational capability with no performance degradation in daylight, smoke, or fog
  • Robust construction for use with high-caliber long-range rifles and close-quarter battles
  • Feature-rich with multiple image polarity options and video output capability for real-time observation

Key Features

  • Experience superior clarity with the 388x284 thermal resolution for detailed imaging.
  • Detect targets up to 2200m with this riflescope, enhancing your situational awareness.
  • Enjoy extended use with an 8-hour continuous battery life for long operations in the field.
  • Customize your view with 2x/4x digital zoom, perfect for detailed thermal observation.
  • Operate confidently in any weather; this thermal riflescope is MIL-STD-810 waterproof.
  • Quickly identify threats with a fast 3-second startup time; be ready when it matters most.

What's in the box:

  • Newcon Optik TVS 13M 54mm Thermal Riflescope
  • M1913 Quick Release Mount
  • Newcon Optik 1 Year Warranty
