Questions & Answers

FAQ

What types of devices can connect to the Netgear XS508M Switch?

The Netgear XS508M Switch can connect to a variety of devices, supporting Fast Ethernet, 1-Gigabit, 2.5-Gigabit, 5-Gigabit, and 10-Gigabit speeds.

Can I use Cat5E cables with the XS508M Switch?

Yes, the XS508M Switch is compatible with standard Cat5E Ethernet cables, eliminating the need for Cat6 upgrades.

Does the XS508M Switch support fiber connectivity?

Yes, the XS508M features a 1 SFP+ Fiber port that supports both 1-Gigabit and 10-Gigabit connectivity.

How does the XS508M Switch optimize device performance?

The switch automatically detects the required speed of connected devices and delivers the optimal performance, ranging from Fast Ethernet to 10-Gigabit.

Is the XS508M Switch suitable for business networks?

Yes, the XS508M Switch is ideal for enhancing both home and business network connectivity with its high-speed capabilities.

Reviews about this item

Review Summary

2025-03-17T20:00:00

Rated 5 out of 5

Great Switch

Runs cool and quiet. Each port adjusts to the optimal speed

Wallert

2019-05-28T20:00:00

Rated 5 out of 5

Good switch

The switch works great at 10 gb/sec speed, just be sure that the 5th serial number is not 7, as there were problems with these units using jumbo frames @ 10 gb/sec.

Bill19121

2019-05-28T20:00:00

Rated 5 out of 5

Great switch

Works great, don't forget to cover the key hole in the back when switching it on

Helmuth34074

2019-05-28T20:00:00

Rated 5 out of 5

Works as advertised

Works great with the 740 AP's to deliver really fast 2.5Gb WiFi. I am happy, so is my customers

TYCharley90276

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Netgear XS508M Specifications

General

General

Jump to...
  • 100M/1G/2.5G/5G/10G RJ-45 copper

    7 ports

  • 10G SFP+ ports

    1x 10G/1G SFP+ and Copper (combo)

  • Form Factor

    Desktop/Rackmount

Performance

Jump to...
  • Packet buffer memory

    128KB (Dynamically shared across only used ports)

  • Forwarding modes

    Store-and-forward

  • Bandwidth

    160Gbps

  • MAC Address database size

    2K (48-bit MAC addresses)

  • Packet forwarding rate

    (64 byte packet size) (Mpps)
    10Gbps: 14,880,952fps
    5Gbps: 7,440,476fps
    2500Mbps: 3,720,238fps
    1000Mbps: 1,488,095fps
    100Mbps: 148,810fps

  • Jumbo frame support

    Up to 9K packet size

  • Acoustic noise level @ 25 Degree C

    22.5 (dBA) (ANSI-S10.12)

  • Mean Time Between Failures @ 25 Degree C

    1145157 hours (MTBF)

Power/Energy Efficiency

Jump to...
  • 802.1p-based QoS/CoS Supported

    Yes

  • Auto Power Down

    Yes

  • Short Cable Detection/Power Saving

    Yes

Quality of Service (QoS)

Jump to...
  • IEEE 802.3az (Energy Efficient Ethernet)

    Yes

  • Honors DSCP (DiffServ) Tags

    Yes

  • Weighted Round Robin (WRR)

    Yes

  • Priority Queues

    8

IEEE Network Protocols

Jump to...
  • IEEE Network Protocols

    IEEE 802.3 Ethernet
    IEEE 802.3u 100BASE-TX
    IEEE 802.3ab 1000BASE-T
    IEEE 802.3x Full-Duplex Flow Control
    IEEE 802.1p Class of Service
    IEEE 802.3az Energy Efficient Ethernet (EEE
    IEEE 802.3an 10GBASE-T
    IEEE 802.3bz 5Gbps and 2.5Gbps Ethernet Over Copper Twisted Pair Cable
    IEEE 802.3ae 10-Gigabit Ethernet Over Fiber
    IEEE 802.3aq 10-Gigabit over Fiber (10GBASE-LRM)
    IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX

  • Per port

    Speed, Link, Activity

  • Per device

    Power and Fan

Power Consumption

Jump to...
  • Power Supply

    Fixed internal PSU, 100-240VAC, 50-60Hz, 1.5A max
    Power cord localized to country of sale

  • Max power

    39Watts (worst case, all ports used, line-rate traffic)

  • Min power (link-down standby)

    21.31Watts

  • Heat Dissipation

    max: 147.86 BTU/hr
    min: 80.8 BTU/hr

  • Fan(s)

    x1

Environmental

Jump to...
  • Operating temperature

    32 to 122 Degree F (0 to 50 Degree C)

  • Humidity (relative)

    95% maximum relative humidity (RH), non-condensing

  • Altitude

    10,000' (3,000m) maximum

  • Storage temperature

    - 4 to 158 Degree F (-20 to 70 Degree C)

Electromagnetic Emissions and Immunity

Jump to...
  • Certifications

    47 CFR FCC Part 15, SubpartB, Class B
    ICES-003:2016 Issue 6, Class B
    ANSI C63.4:2014
    EN 55032:2012+AC2013, Class B
    EN 55024:2010
    EN 61000-3-2:2014, Class B
    EN 6100-3-3:2013
    AS/NZS CISPR 32:2015, Class B
    VCCI V-3/2015.04, Class B
    V-4/2012.4
    Korea KC mark
    CNS 13438

  • Electromagnetic Compliance

    USA / IC: FCC 15B (Class B) + ICES -003
    CE/AUS/NZ: EN55032/24 + CISPR 32
    Japan: VCCI
    AUS/NZ: BSMI (CNS 13438)
    Taiwan: sDoC
    Korea: KCC

Safety Certifications

Jump to...
  • Certifications

    CE: CB 60950-1, LVD 60950-1
    AUS/NZ: AS/NZS 60950-1
    USA: UL 60950-1, SNE VA
    Taiwan: BSMI (CNS 14336-1)

Physical

Jump to...
  • Dimensions (W x D x H)

    12.91 x 6.65 x 1.7" (328 x 169 x 43.2mm)

  • Weight

    3.28 lbs (1.49kg)

  • UPC Code

    606449131123

About Netgear XS508M

FEATURED REVIEWS

Good switch

By Bill19121

The switch works great at 10 gb/sec speed, just be sure that the 5th serial number is not 7, as there were problems with these units using jumbo frames @ 10 gb/sec.

Great switch

By Helmuth34074

Works great, don't forget to cover the key hole in the back when switching it on

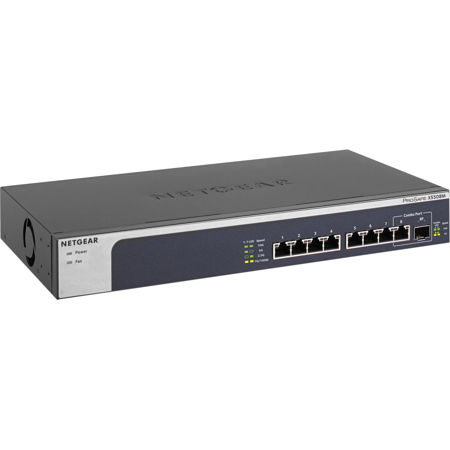

Are you ready to unlock the full potential of your 10G/Multi-Gigabit devices? The Netgear XS508M 8-Port 10-Gigabit Ethernet Unmanaged Switch is your gateway to high-performance networking. This cutting-edge switch is equipped with eight Copper Ethernet ports, offering versatile connectivity options that range from Fast Ethernet to 1-Gigabit, 2.5-Gigabit, 5-Gigabit, and up to 10-Gigabit speeds. Additionally, the XS508M features a 1 SFP+ Fiber port, providing support for both 1-Gigabit and 10-Gigabit connectivity, thus enhancing your network's flexibility and scalability.

Each port on the XS508M is intelligently designed to automatically detect and deliver the optimal speed required by your connected devices. This feature marks a significant advancement over traditional 10-Gigabit switches, which are limited to providing only 1-Gigabit connectivity to devices that demand less than 10-Gigabit. One of the most remarkable aspects of the XS508M is its compatibility with standard Cat5E Ethernet cables, eliminating the need for costly Cat6 wiring upgrades and saving you both time and money.

Whether you're aiming to optimize your home network or boost your business's connectivity, the Netgear XS508M 8-Port 10-Gigabit Ethernet Unmanaged Switch is a reliable and cost-effective solution. Experience seamless, high-speed connections and elevate your network performance with this innovative Ethernet switch. Perfect for use with 740 AP's to deliver ultra-fast 2.5Gb WiFi, this switch ensures satisfaction for both you and your customers. Don't forget to cover the keyhole in the back when powering it on for optimal performance.

Netgear XS508M Features

  • Plug-and-play: Automatic connectivity to your router or modem of 4 or 7 additional wired connections. No need for an IT expert!
  • All speeds welcome: Expand your network instantly, and give your devices either 100Mb, 1, 2.5, 5 or 10-Gigabit, automatically
  • Mounting flexibility: Small and silent desktop or rackmount form factor for quiet operation - Adapts to your needs and configuration in any environment
  • Industry leading support: Next Business Day replacement and 24/7 chat with a NETGEAR expert
  • Energy efficient: Switches automatically adjust power consumption according to the link status and cable length

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • 8 Copper Ethernet ports supporting Fast Ethernet to 10-Gigabit speeds
  • 1 SFP+ Fiber port for versatile 1-Gigabit or 10-Gigabit connectivity
  • Automatic speed detection for optimal device performance
  • Compatible with standard Cat5E cables, eliminating the need for Cat6 upgrades
  • Ideal for enhancing home or business network connectivity
  • Perfect for pairing with 740 AP's for fast 2.5Gb WiFi delivery

What's in the box:

  • Netgear XS508M 8-Port 10-Gigabit Ethernet Unmanaged Switch
  • Power Cord
  • Rack-Mounting Hardware
  • User Manual
  • Netgear 5 Year Limited Warranty
