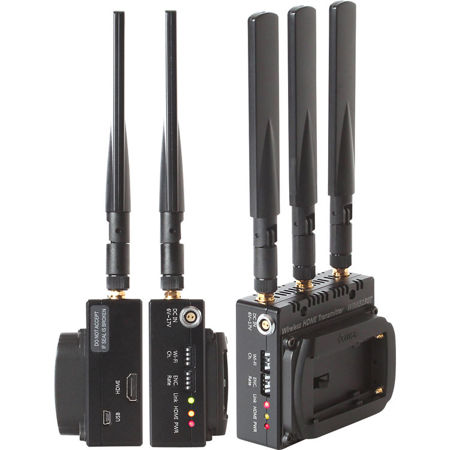

Nimbus WiMi5150A Wireless HDMI H.264 Decoder/Receiver with Zero Latency (30ms)

Nimbus WiMi5150A Wireless HDMI H.264 Decoder/Receiver with Zero Latency (30ms)

SKU: NIWIMI5150AR
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Nimbus WiMi5150AR Specifications

Wireless

Wireless

Jump to...

  • Wireless Range

    4921.26' (1500m) (Line-of-Sight)

  • # of Channels

    11 (40 MHz)

  • Frequency Range

    4.9 to 5.09 GHz
    5.15 to 5.25 GHz
    5.5 to 5.7 GHz
    5.72 to 5.85 GHz

  • Latency

    <= 30 ms

  • Wi-Fi

    5 GHz Wi-Fi 5 (802.11ac)

Interface

Jump to...

  • Video Connectors

    1x HDMI (HDMI 1.3) Output

  • Embedded Audio

    HDMI

Format Support

Jump to...

  • Video Format

    HDMI: 1080p at 24, 30, 50, 59.94, 60 fps

    HDMI: 1080i/720p at 50, 59.94 fps

    HDMI: 576p/576i at 50 fps

    HDMI: 480p at 59.94, 60 fps

    HDMI: 480i at 59.94 fps

  • Audio Format

    16-Bit 48 kHz LPCM Audio

Power

Jump to...

  • Battery Support

    1x Sony L-Series / NP-F Type

  • Power Connector

    1x 2-Pin LEMO Input

General

Jump to...

  • Mounting

    1x 1/4"-20 Female

  • Dimensions

    3.54 x 3.15 x 1.18" (9 x 8 x 3cm)

  • Weight

    0.6 lb (270g)

Other

Jump to...

  • UPC Code

    193913000035

About Nimbus WiMi5150AR

Full HD sender & receiver
• H.264 (MPEG-4 Parts10: AVC)
• Baseline profile with level 4.2
• Zero delay (10ms), end-to-end (30ms), H.264 engine
• Transmission of 1080p60 HDMI over Wi-Fi
• Video formats of DTV and VESA Spec

Live streaming from DSLR, Camcorder over Wi-Fi
• Full HD live streaming server on transmitter over Wi-Fi
• RTSP streaming server (RTP/UDP)

Multicasting
• Max. 3 receivers can receive the same video from a transmitter at maximum 1.5km, each
• Multiple pair s of operation at one location

Comfortable & Wide coverage of Wireless
• Wireless: up to 1,500m (5,000ft) @ line of sight in open space
• IEEE 802.11ac, 5 GHz , 11 Ch. available @ 40MHz bandwidth

Applications
• Drone/UAV Video transmission
• Wireless ENG/DSLR Camera
• Digital signage, wireless Kiosk, medical imaging

Interfaces
• HDMI: 1080p60, HDMI v1.3 compatible
• DIP switches: Selection of Wi-Fi frequency and encoding rate
• USB: Firmware update

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • WiMi5150A Wireless HDMI H.264 Decoder/Receiver
  • 3x 6 dBi Bar Antenna
  • Sony L-Series Battery Plate
  • DCA12M Mini 12 VDC Adapter
  • Nimbus 1 Year Warranty
