New Arrival

Nanlux Evoke 150C 150W RGB LED Spotlight

SKU: NLEV150C MFR: EV150C
Earn VIP Reward Points

Key Features

  • Achieve stunning color accuracy with an average CRI of 96, perfect for professional videography.
  • Explore endless creative possibilities with RGB color modes and a wide 2700K-6500K color temperature range.
  • Enjoy robust, weather-resistant performance with an IP66 rating, ideal for outdoor photography.
  • Control your lighting with ease using the Nanlink app, DMX/RDM, or a wired Nanlux Remote Controller.
  • Experience powerful illumination with 150W output, delivering bright and consistent light for any scene.
  • Benefit from versatile power options, including AC/DC and V-mount battery support for on-location shoots.
See More Product Details
Pre Order Now?
Free Expedited Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$59.99

3 Year

$89.99

4 Year

$119.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Nanlux Evoke 150C Specifications

General

General

Jump to...
  • Water Resistance/IP Rating

    IP66

  • Environmental Protection

    Weather-Resistant (IP66)

Light Fixture

Jump to...
  • Number of Heads/Lights

    1

  • Display

    No

  • Photometrics

    2700K:
    1051 fc/11310 Lux at 3.3' (1m)
    115 fc/1239 Lux at 9.8' (3m)
    43 fc/460 Lux at 16.4' (5m)

    3200K:
    1051 fc/12120 Lux at 3.3' (1m)
    123 fc/1320 Lux at 9.8' (3m)
    46 fc/491 Lux at 16.4' (5m)

    5600K:
    1130 fc/12160 Lux at 3.3' (1m)
    123 fc/1328 Lux at 9.8' (3m)
    46 fc/495 Lux at 16.4' (5m)

    6500K:
    1178 fc/12680 Lux at 3.3' (1m)
    127 fc/1368 Lux at 9.8'

  • Color Temperature

    RGB

  • Color Temperature Range

    2700K-6500K

  • Color Modes

    Deep red, red, amber, lime, green, cyan, blue, indigo

  • Color Rendering Index (CRI)

    Average 96

  • Television Lighting Consistency Index

    Average 97

  • Beam Angle

    47 Degree

  • Dimmable

    0.0%-100.0%, by 0.1% increment

  • Power Source

    AC/DC

  • Max Power

    150W

  • Input Voltage

    AC100-240V/50-60Hz, 2A Max
    DC14.4-28V
    PD3.0 (12-28V) 60W Min

Connectivity

Jump to...
  • Wireless Connectivity

    Nanlink app, wired DMX/RDM and wired Nanlux Remote Controller support, and LumenRadio CRMX

  • Battery Connection

    1x V-Mount Rechargeable (Not Included)

  • Battery Chemistry

    Lithium ion

Mounting

Jump to...
  • Fixture Type

    LED Spotlight

  • Fixture Mount

    Via Yoke Mount

Physical Details

Jump to...
  • Dimensions

    Light Fixture: 8.23 x 5.79 x 5.01" (209.14 x 146.95 x 127.29mm)
    Yoke: 11.12 x 8.91 x 3.51" (282.46 x 226.32 x 89.21mm)
    RF-FE-45 FE Mount Reflector 45 Degree:5.19 x 8.11 x 7.70" (131.8 x 206 x 195.5mm)
    D-Tap Cable: 4.92' (1.5m)
    AS-MB-1 Magnetic Base: 1.14 x 1.72 x 0.68" (29 x 43.7 x 17.3mm)
    Carrying Bag: 14.17 x 8.66 x 9.65" (360 x 220 x 245mm)

Physical Dimensions

Jump to...
  • Weight

    Light Fixture: 4.65 lbs (2.11kg)
    Yoke: 1.19 lbs (539.77g)
    RF-FE-45 FE Mount Reflector 45 Degree:12 oz (340.19g)
    AC Power Cable 4.5m: 13.12 oz (371.94g)
    D-Tap Cable: 3.2 oz (90.71g)
    AS-MB-1 Magnetic Base: 1.05 oz (29.93g)
    Carrying Bag: 5.36 lbs (2.43kg)

  • UPC Code

    6949987492306

Models
<b>New Arrival</b> - Nanlux Evoke 150C 150W RGB LED Spotlight
$865.00

$1,080.00

Save:$215.00 (20%)

Pre Order Now

You may place this on order now and it will be shipped on a first come first serve basis. We do not charge your card until we actually ship.

<b>New Arrival</b> - Nanlux Evoke 600C 600W RGB LED Spotlight Kit
$2,065.00

$2,580.00

Save:$515.00 (20%)

Pre Order Now

You may place this on order now and it will be shipped on a first come first serve basis. We do not charge your card until we actually ship.

Nanlux Evoke 1200B 1200W Bi-Color LED Video Spotlight
$2,725.00

$3,895.00

Save:$1,170.00 (30%)

Ships from Manufacturer

Usually ships within 2-5 Days. Please note: Your card will be charged when order is submitted to the vendor (usually within 24 hours).

Watts150W600W-
Kit Style1 Light Kit1 Light Kit1 Light Kit
Power SourceAC/DCACAC
SeriesNanlux EvokeNanlux Evoke-
Color TemperatureRGB Color TunableRGB Color TunableBi-Color
Battery ConnectionV MountNo Connection IncludedNo Connection Included
Color Temperature Range2700-6500K2700-6500K2700-6500K

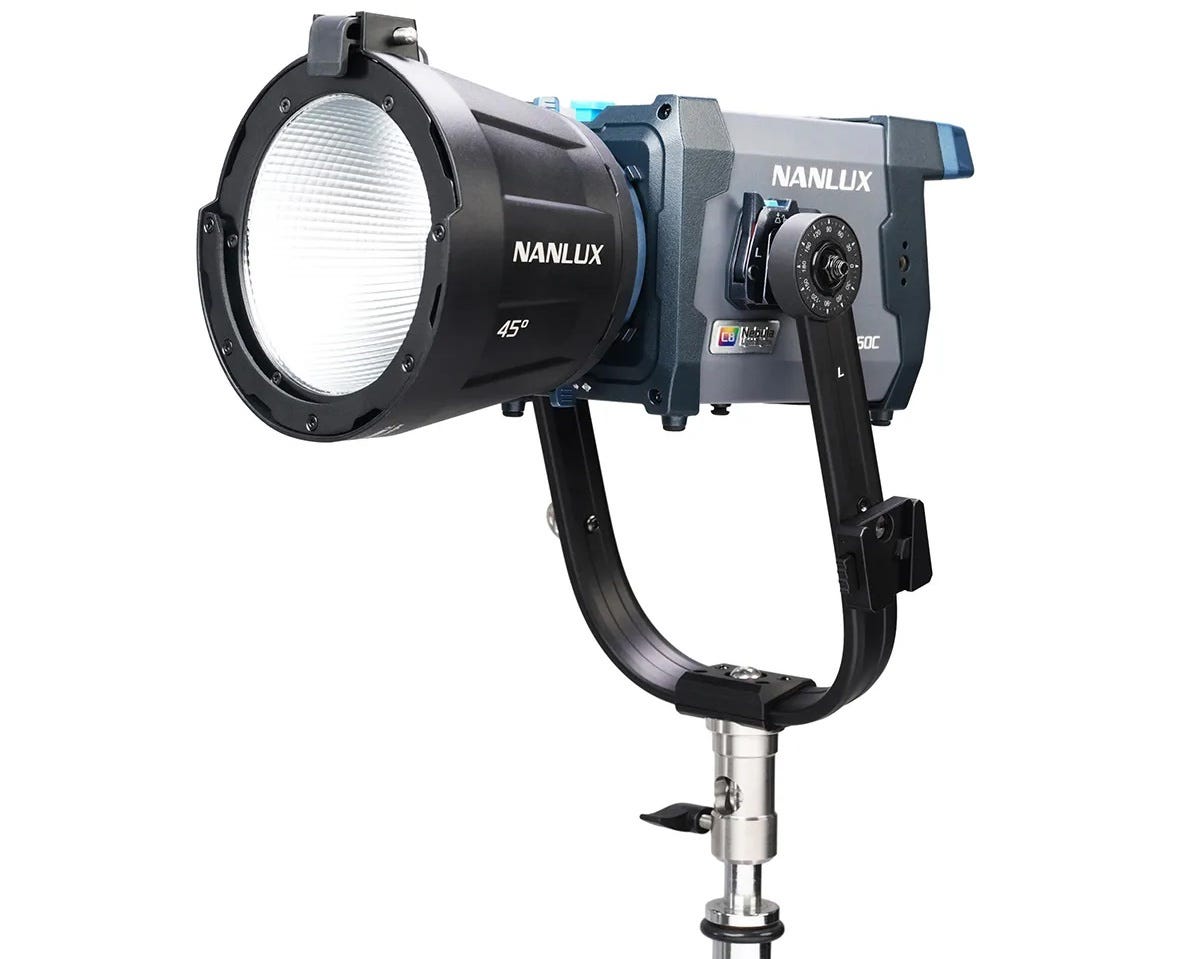

About Nanlux Evoke 150C

The Nanlux Evoke 150C is a powerful and compact LED spotlight with an unparalleled 8-chip light engine that mixes Deep Red, Red, Amber, Lime, Green, Cyan, Blue, and Indigo LEDs to deliver vivid colors and a notably wide and accurate CCT range of 1000K-20000K with +/-200 of G/M adjustment.

It features an all-in-one design with no ballast or external power supply-just a single cord that plugs into one port for both AC and DC power. The fixture itself measures only 8.23" x 5.79" x 5.01 and a total weight including yoke and reflector is only 7 lbs.

Impressive Output in a Small Footprint the size of a Bluetooth Speaker using the 45 Degree reflector at 1 meter, it delivers an totally remarkable 22,230 lux of light output, making it a miniature powerhouse.

The special revolutionary architecture of the fixture provides an all-weather protection rating of IP66.

Wireless control with the Nanlink app, wired DMX/RDM and wired Nanlux Remote Controller support, and LumenRadio CRMX, enables you have everything you need to control the settings in any scenario.

More than vivid light-beyond the gamut
Powered by the Nebula C8 light engine, Evoke 150C achieves accurate white light and vivid colors by mixing 8 LED chips with different spectral values. Through rigorous testing, Nanlux engineers determined that this specific combination and number of LEDs produces the highest possible accuracy and widest spectral color range of light yet accomplished by ay other COB LED Spotlight.

What's Within the Nebula C8 Lighting Array? Beyond The Gamut...
After intense research and development of testing up to 10 color chip arrays the spectral harmonics of the physics revealed the 8 chip array actually delivered the best control, accuracy and broadest, richest spectrum of color space.

By selecting the very carefully tuned, 8 specifically complementary colored led emitters, the Nebula C8 led array produces colors beyond any single gamut. (92% of REC 2020) With the new Nebula C8 light engine, the Evoke 150C produces the highest possible range of accurate color with ultra deep saturation, the warmest CCT range in the industry (down to 1000K while up to 20000K), and the widest useable color space yet produced by any LED Spotlight in the industry. With the addition of + 200 G/M adjustment you can create any palette imaginable yet dial in an accurate industry standard color temperature of your choice at the twist of a dial.

The end result is a Go To Fixture that easily produces everything from intensely saturated colors to subtle hues and the most vibrant and truer skin tones than from any COB LED Light Fixture. This same accurate color rendering delivers critical client pleasing colors of products on commercial assignments.

Dimming control that is fully accurate
Whether you're dimming down to .1% or going to full intensity, the Evoke 150C always delivers color-accurate light. With CRI of avg 96, TLCI of avg 97, TM-30 of Rf: Average 96 and TM-30 Rg: Average 100, you can always light with confidence.

Fast-easy setup
The all-in-one design has no external power supply-just a single cord that plugs into one port for both AC and DC power; it's fast and easy to set up and wrap. It can easily be rigged anywhere with standard wall socket extension cords or D Tap batteries.

Stormproof
Features all-weather protection with a rating of IP66, freeing you to work on location in heavy wind driven rain or dust storms at any head angle without worry.

Compact and Plentiful Modifiers
The compact FE Mount keeps the body as small as possible, and it's compatible with all FM Mount and FE Mount modifiers and accessories so many current Nanlite Modifiers will easily adapt.

Rugged rental ready lifestyle
Its construction makes this unit always available to earn its living.

Take control
With intuitive on-board controls, easy wireless control with the Nanlink app, wired DMX/RDM and wired Nanlux Remote Controller support, and LumenRadio CRMX, you have everything you need to control the settings in any scenario.

Nanlux Evoke 150C Features

  • Innovative Nebula C8 Light Engine (combining deep red, red, amber, lime, green, cyan, blue, indigo) to achieve 1,000K-20,000K with G/M+/-200 adjustment
  • IP66 rating for robust weather protection
  • Weighing only 4.65 lbs (2.11kg), made of magnesium alloy for significant weight reduction
  • All-in-one design: unibody with integrated power supply and controller
  • Two power options: AC power supply or one 14.4-28V V-mount battery for full power output
  • Ergonomic design including single-sided locking mechanism with an angle indicator, tilt-angle yoke, and additional PosiTight system on FE mount
  • Linear dimming from 0.0% to 100.0%, with precise control between 0.0% and 0.1%
  • Multiple control methods On-board, Remote Controller, NANLINK APP, DMX/RDM, LumenRadio CRMX, Art-Net/sACN, NFC, Wired Controller
  • 5fan modes: SMART, FULL SPEED, LOW SPEED, PAUSE, OFF
  • FE mount and FM mount complete accessory ecosystem, built with FE mount (FM mount with electronic contacts), compatible with FE and FM accessories, and includes the PosiTight system for dual security

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Achieve stunning color accuracy with an average CRI of 96, perfect for professional videography.
  • Explore endless creative possibilities with RGB color modes and a wide 2700K-6500K color temperature range.
  • Enjoy robust, weather-resistant performance with an IP66 rating, ideal for outdoor photography.
  • Control your lighting with ease using the Nanlink app, DMX/RDM, or a wired Nanlux Remote Controller.
  • Experience powerful illumination with 150W output, delivering bright and consistent light for any scene.
  • Benefit from versatile power options, including AC/DC and V-mount battery support for on-location shoots.

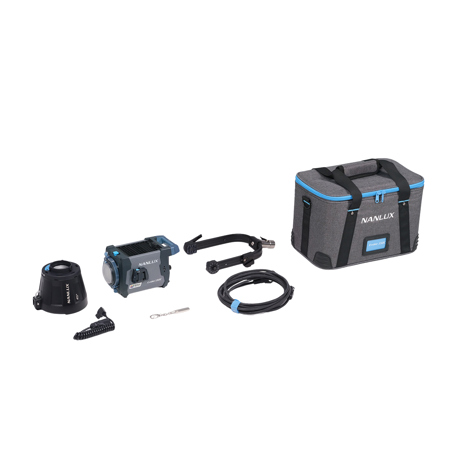

What's in the box:

  • Nanlux Evoke 150C 150W RGB LED Spotlight
  • Yoke
  • RF-FE-45 45 Degree FE Mount Reflector
  • AC Power Cable (4.5m)
  • D-Tap Cable
  • USB Flash Drive
  • AS-MB-1 Magnetic Base
  • Carrying Bag
  • User Manual
  • (Battery Not Included)
  • Nanlux 2 Year Limited Warranty (Extended 1 Year Warranty with Registration)
