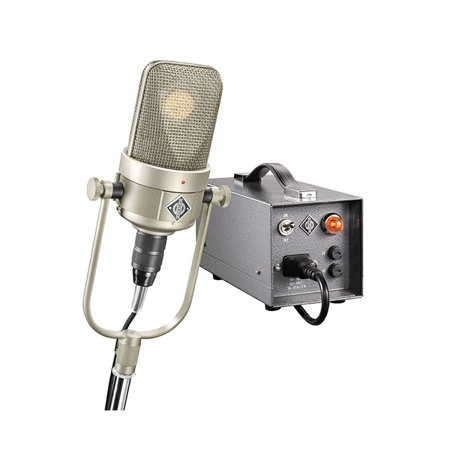

Neumann M 49 V Set Multi-Pattern Tube Condenser Studio Microphone with NM V Pattern Control Unit

SKU: NM008686 MFR: 008686
Earn VIP Reward Points

Key Features

  • Experience pristine sound with this Neumann condenser microphone, perfect for studio vocals.
  • Achieve versatile recordings using the M 49 V's variable polar patterns: omni, cardioid, figure-8.
  • Enjoy low noise performance, capturing every nuance with exceptional clarity using this microphone.
  • The included NM V pattern control unit allows precise adjustments to tailor your sound perfectly.
  • Built with superior quality, this tube condenser microphone ensures durability and lasting performance.
  • This Neumann microphone set's wide frequency range captures rich, detailed audio for any recording.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Neumann M 49 V Specifications

Tube Microphone

Tube Microphone

Jump to...
  • Acoustical Operating Principle

    Pressure gradient transducer

  • Directional Pattern

    Variable (omnidirectional, cardioid, figure-8)

  • Frequency Range

    40 Hz - 16 kHz

  • Sensitivity at 1 Khz Into 1 Kohm

    6.5/8/10 mV/Pa +/- 1 dB
    -43.5/-42/-40 dBV

  • Rated Impedance

    200 ohms

  • Rated Load Impedance

    1000 ohms

  • Equivalent Noise Level, CCIR

    32/30/30 dB

  • Equivalent Noise Level, A-Weighted

    21/20/19 dB-A

  • Maximum SPL for THD < 5%

    125 dB (cardioid)

  • Signal-to-Noise Ratio, CCIR

    62/64/64 dB (Re. 94 dB SPL)

  • Signal-to-Noise Ratio, A-Weighted

    73/74/75 dB (Re. 94 dB SPL)

  • Maximum Output Voltage

    300 mV - 8 dBu

  • Power Supply

    NM V

  • Required Connectors

    Microphone: KC 5 cable (7-pin)
    Power Supply Unit - Output: XLR 3 F

  • Diameter

    3.15" (80mm)

  • Length

    6.42 (163mm)

  • Weight

    1.76 lbs (800g)

Pattern Control Unit

Jump to...
  • Supply Voltage

    100 - 120 V or 220 - 240 V

  • Power Consumption

    Max: 12 W

  • Dimensions (L x W x H)

    8.66 x 3.94 x 4.72" (220 x 100 x 120mm)

  • Weight

    4.85 lbs (2.2kg)

  • UPC Code

    615104370159

About Neumann M 49 V

Make your recordings stand out with the M 49 V Set Multi-Pattern Tube Condenser Studio Microphone with NM V Pattern Control Unit. This legendary microphone, first introduced in 1951, has been reissued to meet original specifications, offering the same revolutionary studio technology that has shaped countless recordings over the decades.

The M 49 V is renowned for its full, silky sound and its continuously variable, remote-switchable polar pattern. This innovative feature, a first in studio technology, allows for seamless control of the microphone's directional characteristic without the need to replace the capsule.

This versatile microphone boasts a balanced frequency response in all directional patterns, from omnidirectional to cardioid to figure-8, including intermediate settings. Whether you're recording an orchestra, piano, trumpet, or vocals, the M 49 V ensures high-quality sound capture for all types of recordings.

The M 49 V set includes the iconic yoke mount, known for its flexible positioning, contributing to the microphone's immense popularity. The set also comes with the NM V pattern control unit, designed to automatically provide the optimal heater voltage for both the M 49 V and any historical M 49. It also automatically adapts to the local mains voltage.

The M 49 V is fully compatible with the last historical variant M 49 c. It features a 1st order high pass filter at 30 Hz, which suppresses low frequency interference such as impact noise. The high-pass frequency can be lowered to 12 Hz via an internal switch S4, reproducing the low frequency response of the early M 49 models.

The M 49 V set is delivered in a high-quality case, handmade in Germany, reflecting the meticulous craftsmanship that goes into each microphone.

In summary, the M 49 V Set Multi-Pattern Tube Condenser Studio Microphone with NM V Pattern Control Unit is a testament to Neumann's commitment to quality and innovation. It's not just a microphone; it's a piece of recording history, ready to bring your sound to life.

Neumann M 49 V Features

  • Reissue of the legendary M 49 with detail improvements
  • Superb vocal microphone for male and female voices
  • Versatile microphone for all types of instruments
  • Classic tube circuit with output transformer
  • Continuously variable polar pattern, remote controlled
  • Made to original specifications using archived documentation
  • New pattern control unit automatically adapts to mains voltage
  • Handmade and hand soldered in Germany
  • Handmade vintage case manufactured in Germany

Warranty Information

This product has a limited warranty of 24 months for parts and 24 months for labor.

Key Features

  • Experience pristine sound with this Neumann condenser microphone, perfect for studio vocals.
  • Achieve versatile recordings using the M 49 V's variable polar patterns: omni, cardioid, figure-8.
  • Enjoy low noise performance, capturing every nuance with exceptional clarity using this microphone.
  • The included NM V pattern control unit allows precise adjustments to tailor your sound perfectly.
  • Built with superior quality, this tube condenser microphone ensures durability and lasting performance.
  • This Neumann microphone set's wide frequency range captures rich, detailed audio for any recording.

What's in the box:

  • Neumann M 49 V Set Multi-Pattern Tube Condenser Studio Microphone
  • NM V Pattern Control Unit
  • KC 5 Cable
  • MZ 49 A Shock Mount
  • Safety Guide
  • Quick Guide
  • Carry Case
  • Neumann 2 Year Limited Warranty
