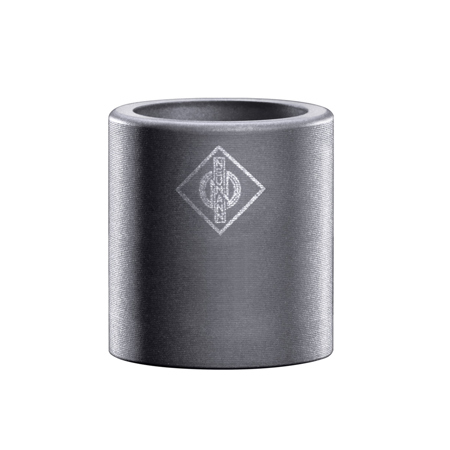

Neumann KK 13 Omnidirectional Capsule for Miniature Clip-On Mic System

SKU: NM008725 MFR: 008725
Earn VIP Reward Points

Key Features

  • Experience pristine audio with this Neumann omnidirectional microphone capsule.
  • Achieve exceptional sound quality with a wide 20 Hz - 20 kHz frequency response.
  • Enjoy consistent performance with a durable capsule designed for reliability.
  • Capture clear sound even in loud environments with a high 153 dB SPL rating.
  • Ensure compatibility with your Neumann miniature clip-on mic system setup.
  • Benefit from low noise levels, perfect for detailed and nuanced recordings.
See More Product Details

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Neumann KK 13 Specifications

  • Acoustical operating principle

    Pressure transducer

  • Directional Pattern

    Omni

  • Frequency response

    20 Hz to 20 kHz

  • Sensitivity

    3.3 mV/Pa = -49.6 dBV

  • Rated impedance

    10 ohms

  • Signal-to-noise ratio, CCIR

    62 dB (re. 94 dB SPL)

  • Signal-to-noise ratio, A-weighted

    74 dB (re. 94 dB SPL)

  • Equivalent noise level, CCIR

    32 dB

  • Equivalent noise level, A-weighted

    20 dB-A

  • Maximum SPL for THD 0.5%

    153 dB SPL (with Usupply = 10V, Rfeed = 20 kohms)

  • Dynamic range of the amplifier

    133 dB (A-weighted for THD < 0.5 %)

  • Max. output voltage

    12 dBu

  • Power supply

    Max. 10 V, with Rfeed = 20 kohms

  • Current consumption

    0.22 mA

  • Operating temperature range

    32 Degree to 104 Degree F (0 Degree - +40 Degree C)

  • Operating Humidity range

    0 % to 90 % rel. hum

  • Storage temperature range

    -4 Degree to 158 Degree F (-20 Degree - +70 Degree C)

  • Storage Humidity range

    0 % to 95 % rel. hum

  • Dimensions (Dia. x L)

    0.47 x 0.53" (12 x 13.5mm)

  • Weight

    0.09 oz (2.8g)

  • UPC Code

    615104391697

Models
Neumann KK 13 Omnidirectional Capsule for Miniature Clip-On Mic System
$299.00

$359.00

Save:$60.00 (17%)

Pre Order Now

You may place this on order now and it will be shipped on a first come first serve basis. We do not charge your card until we actually ship.

Neumann KK 14 Cardioid Capsule for Miniature Clip Microphone System
$299.00

$359.00

Save:$60.00 (17%)

Ships from Manufacturer

Usually ships within 2-4 Weeks. Delivery is subject to availability.

Neumann KK184 Cardioid Capsule Head with Woodbox, Nextal Black
$649.00

$809.00

Save:$160.00 (20%)

Ships from Manufacturer

Usually ships within 1-2 Days. Please note: Your card will be charged when order is submitted to the vendor (usually within 24 hours).

Compatibility-KK SeriesKMD & KMA
Accessory TypeCartridge/CapsuleCartridge/CapsuleCartridge/Capsule

About Neumann KK 13

It's time to elevate your audio recording experience with the KK 13 Omnidirectional Capsule, an integral part of the Neumann Miniature Clip-On Mic System. This omni capsule is expertly engineered to deliver flawless, richly detailed sound, making it an ideal choice for close miking applications.

The KK 13's omnidirectional characteristic makes it particularly suitable for quiet stages and recording scenarios where feedback and separation are not an issue. It captures the signature sound of acoustic instruments in an incredibly open and natural way, overcoming the traditional limitations of the electret principle. Expect a broad bass and mid-range without proximity effect, and a confident elegance in the treble.

From the subtlest nuances to the peak dynamics of a powerful fortissimo, the KK 13 is designed to capture every detail with an impressively high maximum SPL. This is achieved through the innovative production process for electret-based microphones, where Neumann engineers have opted for a layered structure over the classic integrated designs.

Each module of the KK 13 and its counterpart, the KK 14 cardioid, is meticulously built and designed to deliver the perfect result. The components are then hand-assembled in Germany, ensuring unmatched acoustic qualities and eliminating typical compromises.

The robust titanium housing not only contributes to a road-tough design but also reflects the inner elegance of the engineering and design. This layered design also ensures an unprecedented level of tonal consistency, with every capsule sounding exactly the same. This feature saves engineers valuable time on basic EQing and delivers consistent sound right from the early soundcheck.

As part of the Neumann Miniature Clip Mic MCM System, the KK 13 offers an unparalleled low cost of ownership. The system is designed for longevity, not just a single season, with its modular design allowing for easy replacements. Nine mounting clips ensure reliable positioning on any instrument while remaining gentle on all surfaces.

The system is compatible with all major wireless systems and includes cable options for a 3.5 mm jack, Lemo, 4-pin mini-XLR, MicroDot, or wired connection. Please note, this product may expose you to chemicals including lead, which is known to the State of California (Prop65) to cause cancer and birth defects or other reproductive harm.

Neumann KK 13 Features

  • Layered capsule design overcomes former electret restrictions
  • Enhanced clarity across critical frequency ranges
  • Omnidirectional pattern
  • Unmatched tonal consistency
  • Road-tough and long-lasting design

Warranty Information

This product has a limited warranty of 24 months for parts and 24 months for labor.

Key Features

  • Experience pristine audio with this Neumann omnidirectional microphone capsule.
  • Achieve exceptional sound quality with a wide 20 Hz - 20 kHz frequency response.
  • Enjoy consistent performance with a durable capsule designed for reliability.
  • Capture clear sound even in loud environments with a high 153 dB SPL rating.
  • Ensure compatibility with your Neumann miniature clip-on mic system setup.
  • Benefit from low noise levels, perfect for detailed and nuanced recordings.

What's in the box:

  • Neumann KK 13 Omnidirectional Capsule
  • Quick Start Guide
  • Neumann 2 Year Limited Warranty
