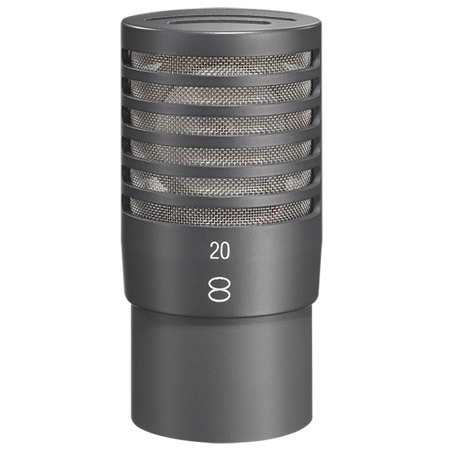

Neumann Bi-Directional Miniature Capsule for KM 100 and KM 100F Power Supplies
See all Neumann items

Neumann Bi-Directional Miniature Capsule with Figure 8 Polar Pattern for KM 100 and KM 100F Power Supplies

SKU: NMAK20
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Neumann AK 20 Specifications

  • Compatibility

    KM 100 and KM 100F Power Supplies

  • Transducer

    Pressure Gradient Condenser

  • Polar Pattern

    Bi-Directional (Figure-8)

  • Frequency Response

    20Hz - 20kHz

  • Dynamic Range (Typical)

    122.5dB

  • Signal-to-Noise Ratio

    68dB, Related at 1 Pa at 1kHz (CCIR dB)
    76.5dB, Related at 1 Pa at 1kHz (A-Weighted dB)

  • Maximum Input Sound Level

    140dB, Less than 0.5% THD (without Preattenuation)
    150dB, Less than 0.5% THD (with Preattenuation)

  • Power Requirements

    Phantom +48v (KM 100 Power Supplies)

  • Output Impedance

    50 Ohms

  • Output Connectors

    XLR-3M Type (KM 100 Power Supplies)

  • Pad

    Yes, -10 dB Preattenuation

  • Low Frequency Roll-Off

    Use KM 100F

  • Dimensions (L x Dia.)

    4.4 x 0.88" (111.76 x 22.35mm)

  • Weight

    3.6oz (102.05g)

  • UPC Code

    615104716599

About Neumann AK 20

The Neumann Microphone Capsule is part of the KM 100 miniature series microphone systems. It features a pressure gradient, single diaphragm transducer with a figure 8 polar pattern. The diaphragm diameter is just 16mm and all sound field components reach the diaphragm directly.

The end result is even frequency response and output levels from 0 to 180 degrees in proximity. The figure 8 polar pattern is effective in stereo MS recording (with an AK 40 or other cardioid mic), ambiance capturing or lectures and conferences with 2 speakers at either ends of the microphone.

Figure Eight Pattern
The pressure gradient element provides a figure eight pattern providing even frequency response and output levels at 0 and 180 degrees.

Modular Design
The capsule is developed for use with the KM100 and KM100F modular power supplies.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Neumann Bi-Directional Miniature Capsule
  • Neumann 1 Year Warranty
