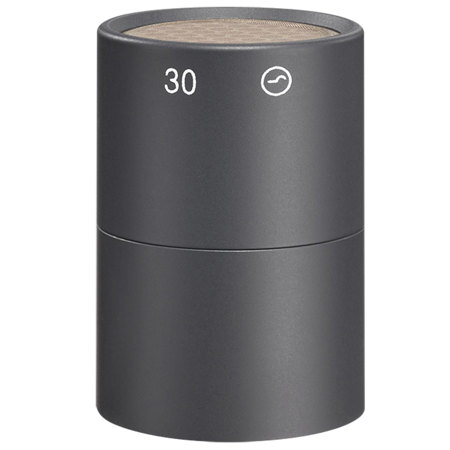

Neumann AK 30 Omnidirectional Capsule Head
See all Neumann items

Neumann AK 30 Omnidirectional Capsule Head, Diffuse Field Equalized (+8dB @10kHz) for Distant Miking

SKU: NMAK30

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Neumann AK 30 Specifications

  • Transducer

    Pressure Gradient Condenser

  • Polar Pattern

    Bi-Directional (Figure-8)

  • Frequency Response

    20Hz - 20kHz

  • Dynamic Range (Typical)

    122.5dB

  • Signal-to-Noise Ratio

    68dB, Related at 1 Pa at 1kHz (CCIR dB)
    76.5dB, Related at 1 Pa at 1kHz (A-Weighted dB)

  • Maximum Input Sound Level

    140dB, Less than 0.5% THD (without Preattenuation)
    150dB, Less than 0.5% THD (with Preattenuation)

  • Power Requirements

    Phantom +48v (KM 100 Power Supply)

  • Output Impedance

    50 Ohms

  • Output Connectors

    XLR-3M Type (KM 100 Power Supply)

  • Pad

    Yes, -10dB Preattenuation

  • Low Frequency Roll-Off

    Use KM 100F

  • Dimensions (L x Dia.)

    4.4 x 0.88" (111.76 x 22.35mm)

  • Weight

    3.6oz (102.05g)

  • UPC Code

    615104690011

About Neumann AK 30

The Neumann AK 30 Microphone Capsule is part of the KM 100 miniature series microphone systems. The AK 30 features a pressure gradient, single diaphragm transducer with an omnidirectional polar pattern. It produces a flat frequency response up to 10kHz. In the free sound field the microphone has a boost of approximately 7dB at 10kHz. The microphone is best applied as a spot microphone for piano, wind instruments, strings, percussion and drums, room ambiance capturing or stereo recording.

Omnidirectional Pattern
The pressure gradient element provides an omnidirectional pattern providing even frequency response and output levels.

Modular Design
The capsule is developed for use with the KM100 and KM100F modular power supplies.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Neumann AK 30 Omnidirectional Capsule Head
  • Neumann 1 Year Warranty
