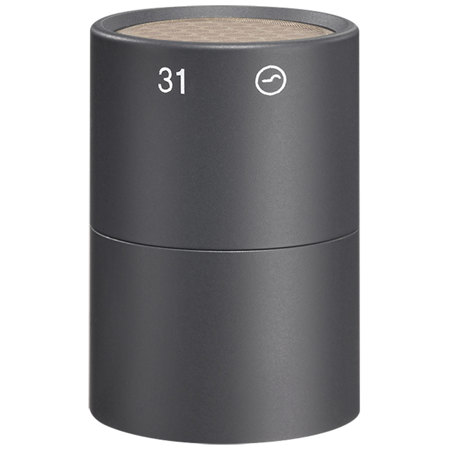

Neumann AK 31 Omnidirectional Direct Field (Flat Response) Capsule Head
See all Neumann items

Neumann AK 31 Omnidirectional Direct Field (Flat Response) Capsule Head for Close Miking

SKU: NMAK31
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Neumann AK 31 Specifications

  • Transducer

    Pressure Condenser

  • Polar Pattern

    Omnidirectional

  • Frequency Response

    20Hz - 20kHz

  • Dynamic Range (Typical)

    124dB

  • Signal-to-Noise Ratio

    69dB, Related at 1 Pa at 1kHz (CCIR dB)
    78dB, Related at 1 Pa at 1kHz (A-Weighted dB)

  • Maximum Input Sound Level

    140dB, Less than 0.5% THD (without Preattenuation)
    150dB, Less than 0.5% THD (with Preattenuation)

  • Power Requirements

    Phantom +48v (KM 100 Power Supply)

  • Output Impedance

    50 Ohms

  • Output Connectors

    XLR-3 Type (KM 100 Power Supply)

  • Pad

    Yes, -10dB Preattenuation

  • Low Frequency Roll-Off

    Use KM 100F Power Supply

  • Dimensions (L x Dia.)

    3.68 x 0.88" (93.47 x 22.35mm)

  • Weight

    2.82oz (79.94g)

  • UPC Code

    615104690028

About Neumann AK 31

The Neumann AK 31 Microphone Capsule is part of the KM 100 miniature series microphone systems. It features a pressure gradient, single diaphragm transducer with an omni-directional polar pattern. It produces a flat frequency response up to 20kHz. In the diffuse field the microphone has a high frequency roll-off above 5kHz. The microphone is best applied as a spot microphone for piano, wind instruments, strings, percussion and drums, room ambiance capturing or stereo recording.

Modular Design
The capsule is developed for use with the KM100 and KM100F modular power supplies.

Omnidirectional Pattern
The pressure gradient element provides an omnidirectional pattern providing even frequency response and output levels.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Neumann AK 31 Omnidirectional Direct Field (Flat Response) Capsule Head
  • Neumann 1 Year Warranty
