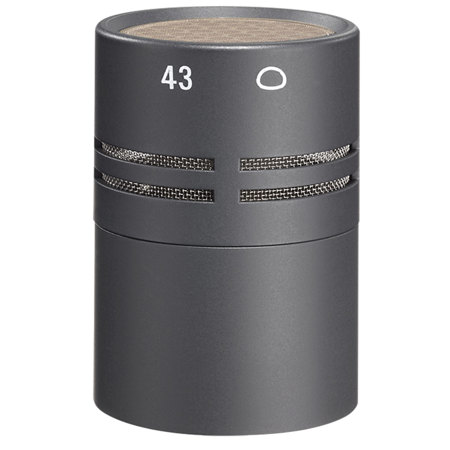

Neumann AK 43 Wide-Angle Cardioid Miniature Capsule
See all Neumann items

Neumann AK 43 Wide-Angle Cardioid Miniature Capsule for KM 100 and KM 100F Power Supplies

SKU: NMAK43
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Neumann AK 43 Specifications

  • Transducer

    Pressure Gradient Condenser

  • Polar Pattern

    Wide-Angle Cardioid

  • Compatibility

    KM 100 and KM 100F Power Supplies

  • Frequency Response

    20Hz - 20kHz

  • Dynamic Range (Typical)

    122dB

  • Signal-to-Noise Ratio

    69dB Related at 1 Pa at 1kHz (CCIR dB)
    78dB Related at 1 Pa at 1kHz (A-Weighted dB)

  • Maximum Input Sound Level

    138dB Less than 0.5% THD (without Preattenuation)
    148dB Less than 0.5% THD (with Preattenuation)

  • Power Requirements

    Phantom +48v (KM 100 Power Supply)

  • Output Impedance

    50 Ohms

  • Output Connectors

    XLR-3 Type (KM 100 Power Supply)

  • Pad

    Yes, -10dB Preattenuation

  • Low Frequency Roll-Off

    Use KM 100F Power Supply

  • Dimensions (L x Dia.)

    3.68 x 0.88" (93.47 x 22.35mm)

  • Weight

    2.82oz (79.94g)

  • UPC Code

    615104690141

About Neumann AK 43

The Neumann AK 43 Wide-Angle Cardioid Miniature Capsule is part of the KM 100 miniature series microphone systems. The AK 43 element features a pressure gradient, single diaphragm transducer with a wide-angle cardioid polar pattern. Attenuation at 90 degrees is 4dB, at 135 degrees it is 8dB and at 180 degrees it is 11dB. The wide-angled cardioid pattern offers a more generous pick up area then conventional cardioid microphones, making it suitable for ambiance recording, vocal recording, stereo miking as well as close miking of instruments.

Modular Design
The capsule is developed for use with the KM100 and KM100F modular power supplies.

Wide-Angled Cardioid
The pressure gradient element provides a wide-angled cardioid pattern. Attenuation at 90 degrees is 4dB, at 135 degrees it is 8dB and at 180 degrees it is 11dB.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Neumann AK 43 Wide-Angle Cardioid Miniature Capsule
  • Neumann 1 Year Warranty
