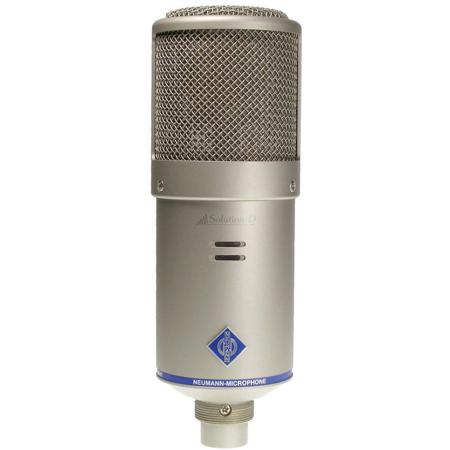

Neumann D-01 Solution-D Large Diaphragm Digital Studio Microphone
See all Neumann items

Neumann D-01 Solution-D Large Diaphragm Digital Studio Microphone with 15 Switchable Polar Patterns using Remote Control Software

SKU: NMD01SNGLMIC
Be the first to review this item

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Neumann D-01 Specifications

  • Interface

    AES42

  • Remote Control

    Functions: Polar pattern
    Low-Cut: Flat, 40, 80, 160Hz
    Pre-Attenuation: 0, -6, -12, -18dB
    Gain: 0 to 63dB in 1dB steps, clickless
    Testsignal: 1kHz, pink noise, white noise
    Sampling Rates: 44.1, 48, 88.2, 96, 176.4, 192kHz
    Parametric compressor/limiter (incl. de-esser function)
    Independent peak limiter avoiding any clipping

  • A/D Conversion

    Neumann process (patented), 28-bit internal word length

  • Digital Signal Processing

    Fixed-point, variable internal word length 28 bits to 60 bits

  • Synchronization

    Asynchronous operation (free-running, AES42 - Mode 1), basic frequency accuracy +/- 25ppm
    Synchronous operation (AES42 - Mode 2), pulling range, min. +/- 100ppm

  • Power Supply

    Phantom power complying with AES42

  • Output

    XLR3M, 24 bits as per AES/EBU (AES3)

  • Microphone: Transducer Type

    Acoustic: K 07 large double-diaphragm capsule

  • Microphone: Directional Characteristic

    15 remote controllable polar patterns, from Omni to cardioid to figure-8

  • Microphone: Frequency Response

    20Hz to 20kHz

  • Microphone: Sensitivity

    Free-Field: -44dBFS

  • Microphone: Equivalent Noise Level

    A-Weighted: 8dB-A

  • Microphone: Signal-to-Noise Ratio

    CCIR: 75dB
    A-Weighted: 86dB

  • Microphone: Maximum SPL

    At 0dBFS: 138dB

  • Microphone: Dynamic Range

    A-Weighted: 130dB

  • Microphone: Latency

    44.1 / 48kHz: 52 samples
    88.2 / 96kHz: 61 samples
    176.4 / 192kHz: 121 samples (AES 3)

  • Microphone: Supply Voltage

    Range: 6 to 10.5V

  • Current Consumption

    Max. 220mA

  • Dimensions (Dia. x L)

    2.5 x 7.3" / 63.5 x 185.42mm

  • Weight

    700g / 24.69oz

  • UPC Code

    615104084827

3 Accessories for Neumann D-01 Solution-D Large Diaphragm Digital Studio Microphone with 15 Switchable Polar Patterns using Remote Control Software

  • All Accessories (3)
  • Studio Isolation Filters (3)
H&A Studio Isolation Filter (Red Composite, Metal Back)
H&A Studio Isolation Filter (Red Composite, Metal Back)
$69.95
Recommended
H&A Reflection Filter (Silver)
H&A Reflection Filter (Silver)
$39.95
Recommended
Professional Desktop Isolation Filter (Gray)
Professional Desktop Isolation Filter (Gray)
$39.95
Recommended

About Neumann D-01

Pure Neumann sound in the digital domain, for use with AES/EBU or AES 42. The signal is converted directly at the capsule. Difficult questions concerning the optimal preamp and A/D converter for a Neumann mic are thus a thing of the past. Its 15 different remotely controlled directional characteristics and numerous additional features permit the D-01 to be optimally adapted to almost any recording situation. These comprehensive features demonstrate what can be achieved with digital microphone technology. The D-01 has a newly developed capsule and is valued by users particularly for its hitherto unknown transparency and fidelity to detail.

• Extremely wide dynamic range: more than 130 dB
• Neumann A/D conversion process
• Pre-amps and external A/D converter are no longer necessary
• Wide range of new functions through integrated digital signal processing
• Control and monitoring of all microphone parameters and functions through Remote Control Software

Digital Microphone
• A/D Converter, optimized for direct conversion of the capsule signal
• New capsule design
• Additional DSP functions
• Limiter (incl. de-esser)
• All parameters and functions remote controllable

Digital Microphone Interfaces
• AES 42-2001 to AES/EBU conversion
• Reliable synchronization through new PLL process
• 2 or 8 channels
• Phantom powering
• Word clock in and out
• Integrated word clock generator

Remote Control Software
• Control and monitoring of all parameters
• DSP function control
• Peak level meter
• Gain reduction bargraph for limiter
• Save, copy and recall for complete setups

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Neumann D-01 Solution-D Large Diaphragm Digital Studio Microphone
  • Wooden Box
  • Neumann 2 Year Limited Warranty
