20% Off

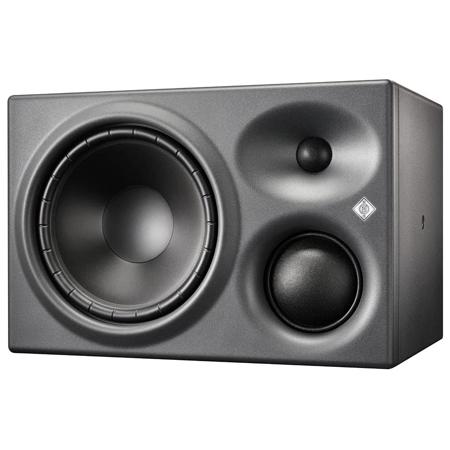

Neumann Active Tri-Amplified 3-Way Midfield Studio Monitor Right Speaker, 1"Tweeter/3"Midrange/8.25"Woofer, 36Hz-20kHz, 13 K Ohms Impedance, Single

SKU: NMKH310R MFR: 505576
Earn VIP Reward Points

Key Features

  • Experience pristine audio with this Neumann studio monitor's flat frequency response.
  • Achieve accurate imaging for mixing and mastering with these professional audio speakers.
  • Enjoy powerful sound output, perfect for critical listening and detailed audio analysis.
  • This active studio monitor delivers consistent performance with its tri-amplified design.
  • Easily integrate with XLR connectivity, ideal for any professional studio setup.
  • Fine-tune your sound with precision using the monitor's EQ for optimal audio quality.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Neumann KH 310 Specifications

  • Frequency Response

    -3 dB free field response: 34 Hz to 21 kHz, +/- 3 dB

  • Pass band free field

    36 Hz to 20 kHz, +/- 2 dB

  • Self-Generated Noise Level

    < 20 dB(A) at 10 cm (with input gain set to 100 dB for 0 dBu)

  • Total Harmonic Distortion

    > 85 Hz (< 0.5 % at 95 dB SPL at 1 m)

  • Maximum SPL (1)

    In full space / calculated in half space at 3% THD at 1 m: 110.3 / 116.3 dB SPL (averaged between 100 Hz and 6 kHz)
    Short term SPL with IEC-weighted noise (IEC 60286-5) at 1 m, in typical listening conditions: 113 dB(C) SPL

  • Maximum SPL (2)

    Short term SPL with music material at 2.3 m, in typical listening conditions (pair): 100 dB(C) SPL (full range), 107 dB(C) SPL (with subwoofer)
    Long term SPL with pink noise at 2.3 m, in typical listening conditions (single/pair): 93 / 99 dB(C) SPL (full range), 94 / 100 dB(C) SPL (with subwoofer)

  • Bass Capability

    Maximum SPL in half space at 3% THD at 1 m: 104.5 dB SPL (averaged between 50 Hz and 100 Hz)

  • Amplifiers

    Class AB
    Bass: 150 W continuous, 210 W peak
    Midrange: 70 W continuous, 90 W peak
    Treble: 70 W continuous, 90 W peak

  • Controller Design

    Analog, active

  • Crossover Frequencies

    650 Hz, 2 kHz

  • Crossover Slope

    24 dB/oct, 4th order

  • Equalization

    Bass: 0, -2.5, -5, -7.5 dB
    Low Mid: 0, -1.5, -3, -4.5 dB
    Treble: +1, 0, -1, -2 dB

  • Protection Circuits

    Independent thermo limiters for woofer, midrange dome and tweeter.
    Woofer soft clip and excursion limiters

  • Filter

    Infrasonic Filter: 15 Hz; 6 dB/octave slope

  • Input

    1x XLR, analog electronically balanced

  • Impedance

    > 13 kO, electronically balanced

  • Input Gain Control

    0 dBu to -15 dBu (sensitivity)

  • Output Level Control

    94, 100, 108, 114 dB SPL

  • CMRR

    > 56 dB at 100 Hz to 15 kHz

  • Maximum Input Level

    24 dBu

  • Indicator Lights

    Power On: Neumann logo white
    Limit/Clip: Neumann logo red

  • Power Supply

    100-240 V-; 50/60 Hz

  • Power Consumption

    Idle: 24 W
    Full Output: W

  • Finish

    Cabinet Surface: Painted wood and polyurethane, Anthracite (RAL 7021), Aluminum electronics panel

  • Baffle

    Cover

  • Operating Temperature

    50 to 104deg.F (10 to 40deg.C) <90% RH, non-condensing

  • Storage Temperature

    -13 to 158deg. F (-25 to 70deg. C ) <90% RH, non-condensing

  • Drivers

    Magnetically shielded
    Woofer: 8.24" (210 mm)
    Midrange: 3" (75 mm)
    Tweeter: 1" (25 mm)

  • Mounting Configuration

    2 x M8 on side panels, depth from outside of cabinet 1" (25 mm)
    Rear panel screws for attaching LH 41 base plate
    Rear panel bracket

  • Dimensions (H x W x D)

    10 x 15.1 x 11.5" / 254 x 383.54 x 292.1mm

  • Weight

    28.6 lbs / 12.97kg

  • UPC Code

    615104229303

2 Accessories for Neumann Active Tri-Amplified 3-Way Midfield Studio Monitor Right Speaker, 1"Tweeter/3"Midrange/8.25"Woofer, 36Hz-20kHz, 13 K Ohms Impedance, Single

  • All Accessories (2)
  • Speaker Accessories (1)
  • Monitoring Accessories (1)

About Neumann KH 310

Be immersed in the professional-grade sound quality of the Neumann Active Tri-Amplified 3-Way Midfield Studio Monitor Right Speaker. This high-quality, durable studio monitor is engineered with a powerful 290-watt continuous output, making it an ideal choice for both near-field monitoring and multi-channel systems as a front or rear loudspeaker.

Designed with precision, this studio monitor is perfect for tracking, mixing, and mastering applications. It features a robust 8.25" woofer, a 3" midrange driver, and a 1" tweeter, all housed in a sealed, 3-way cabinet. This unique design not only reduces standing waves but also aids in delivering a fast bass transient response, ensuring a reliable and clear audio experience.

One of the standout features of this studio monitor is Neumann's Elliptical Mathematically Modeled Dispersion (MMD) waveguide. This advanced technology is designed with the needs of large-format console mixing in mind. It offers a smoother off-axis response, effectively broadening the "sweet spot" of the KH 310. This allows for seamless movement across the console without any decrease in audio quality.

The KH 310 also comes equipped with 4-position bass, low-mid, and treble acoustic controls. These features enable the studio monitor to perform optimally in various acoustic environments, making it a versatile addition to any professional recording studio.

With integrated mounting points, the KH 310 offers flexibility in positioning. The included self-adhesive feet ensure stability when mounted on speaker stands, making this studio monitor as practical as it is powerful. Experience the difference with the Neumann Active Tri-Amplified 3-Way Midfield Studio Monitor Right Speaker.

Neumann KH 310 Features

  • Alloy fabric dome for low-distortion high-frequency reproduction
  • Elliptical Mathematically Modeled Dispersion (MMD) waveguide, with wide horizontal and narrow vertical dispersion for Smoother off-axis response, more forgiving of diverse acoustical environments, freedom of movement across the mixing console, reduces reflections off the mixing console
  • In-house simulated drivers for modeling techniques used to minimize non-linear(intermodulation) distortion
  • The fabric dome, neodymium magnet, midrange driver reproduces important midrange frequencies, which is important for speech and vocals. The lightweight dome has better transient response and less breakup modes than cone designs while the magnet reduces harmonic and inter modulation distortion
  • The long throw composite sandwich cone bass driver with ELFF and ribbed surround provide damping of break-up modes and low distortion at high sound levels. Linear pistonic motor gives a very low harmonic distortion even at high excursions Reduced radial break-up modes on the ribbed surround
  • The dual color, dimmable Neumann logo displays operation status and activation of the extensive protection system. It is dimmable for low lighting level conditions or behind the screen applications
  • A magnetically shielded compact sealed three-way cabinet design prevents standing wave resonances and allows for fast bass transient response while reducing intermodulation distortion in midrange
  • The speaker is designed with a one-piece front panel that has no discontinuities for reduced diffraction and smoother frequency response
  • The Class AB amplifiers assure large headroom and improved transient response
  • The woofer, midrange dome, and tweeter have independent thermo limiters to protect the voice coils
  • Hand alignment in the final test stage allows any KH 310 to be "pair matched" to any other HK 310
  • 4-position bass, low-mid, and treble acoustical controls
  • An integrated ground lift helps reduce noise in less than ideal electrical environments or in case of ground loops
  • The KH 310 has a variety of mounting hardware options for placement in diverse locations

Warranty Information

This product has a limited warranty of 12 months for parts and 24 months for labor.

Key Features

  • Experience pristine audio with this Neumann studio monitor's flat frequency response.
  • Achieve accurate imaging for mixing and mastering with these professional audio speakers.
  • Enjoy powerful sound output, perfect for critical listening and detailed audio analysis.
  • This active studio monitor delivers consistent performance with its tri-amplified design.
  • Easily integrate with XLR connectivity, ideal for any professional studio setup.
  • Fine-tune your sound with precision using the monitor's EQ for optimal audio quality.

What's in the box:

  • Neumann Active Tri-Amplified 3-Way Midfield Studio Monitor Right Speaker
  • European Main Cable
  • UK Main Cable
  • US Main Cable
  • 4x Self-Adhesive Feet
  • Neumann 1 Year Limited Warranty
