Neumann KH 805 Active Studio Subwoofer with 10" Bass Driver
See all Neumann items

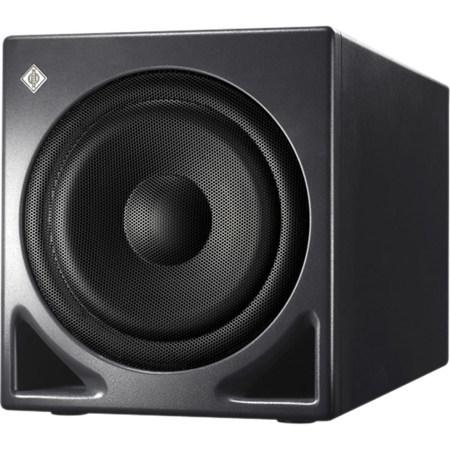

Neumann KH 805 Active Studio Subwoofer with 10" Bass Driver

SKU: NMKH805

This item is no longer available.

Recommended Alternatives

Neumann KH810: Picture 1 regular
Neumann 10" Active Studio Subwoofer with 7.1 HD Bass Manager
$3,549.00$2,999.00
Neumann KH 870: Picture 1 regular
Neumann 2 x 10" Active Studio Subwoofer with 7.1 HD Bass Manager
$6,099.00$5,199.00
See More Recommendations
Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Neumann KH 805 Active Studio Subwoofer with 10" Bass Driver Specifications

  • -3 dB free field frequency response

    18 to 300 Hz, +/- 3 dB

  • Pass band free field frequency response

    19 to 300 Hz, +/- 2 dB

  • Self-generated noise

    < 20 dB(A) at 10 cm

  • Sine wave output with a THD

    95 dB SPL (> 40 Hz) (< 0.5 % at 1 m)

  • Max. SPL in half space at 3% THD

    110.7 dB SPL

  • Max. SPL

    112 dB SPL (with pink noise in half space at 1m, linear)

  • Amplifier, total cont. output power

    160W (200W) (peak)

  • Controller design

    Analog, active

  • Main channel crossover frequency

    80 Hz

  • Crossover slope

    24 dB/oct.

  • Equalization: Low cut

    30 Hz, 0 to -12 dB

  • Parametric Equalizer

    Bypassable

  • Gain Control

    +4 to -12 dB

  • Gain Control

    +4 to -12 dB

  • Parametric Equalizer: Frequency

    20 to 120 Hz

  • Parametric Equalizer: Q

    1 to 8

  • Time of flight phase adjustment

    0 to - 315 deg. in 45 deg. steps

  • Bass Management Remote Control

    Bass management on/off
    optional via a standard foot switch on a 6.3 mm jack

  • Protection circuitry

    Excursion and Thermo Limiters

  • Infrasonic filter frequency

    6.5 Hz

  • Slope

    12 dB / oct.

  • Input/Output channels

    2.0 or 0.1 / 2 + 1

  • Impedance

    XLR

  • Input sensitivity

    94, 100, 108, 114 dB SPL at 1 m for a 0 dBu input level

  • CMRR

    > 56 dB at 15 kHz

  • Interchannel isolation (1 kHz)

    < -95 dB

  • Dynamic range

    119 dB(A)

  • Signal routing modes

    Right, LFE 120 Hz, Wide, Daisy chain

  • Electrically balanced

    13k Ohms

  • Level matching

    +/-0.1 dB

  • THD+N

    Better than 0.001%

  • Displays and indicators

    Power on: Green LED
    Limit / clip: Red LED
    Bass management active: Green LED

  • Mains power

    220 to 240 V - or 100 to 120 V, switchable

  • Power consumption - Idle

    14W

  • Power consumption - Full output

    280W

  • Internal net volume

    41.5 liters

  • External volume

    76.6 liters

  • Drivers, magnetically shielded: Woofer

    265mm / 10.43"

  • Cabinet surface finish

    Painted, Metallic Anthracite (RAL 7021)

  • Baffle cover

    Included metal grille

  • Dimensions (W x D x H)

    330 x 645 x 360mm / 12.99 x 25.39 x 14.17"

  • Weight

    26.0kg / 57.32lbs

  • UPC Code

    615104266100

2 Accessories for Neumann KH 805 Active Studio Subwoofer with 10" Bass Driver

  • All Accessories (2)
  • Speaker Accessories (1)
  • Monitoring Accessories (1)
Ultimate Support UA-ISO-100 Isolator Pad for Studio Monitor, Pair
Ultimate Support UA-ISO-100 Isolator Pad for Studio Monitor, Pair
$49.99
Isolation Pad for Studio Monitor (Medium, Single)
Isolation Pad for Studio Monitor (Medium, Single)
$14.95

About Neumann KH 805 Active Studio Subwoofer with 10" Bass Driver

The Neumann KH 805
Based on the excellent acoustical performance of the KH 810, the KH 805 is the optimal choice to be used in stereo applications, for example in combination with the KH 120 or KH 310. The KH 805 has a unique 2.1/0.1 Bass manager which enables it to be used in many different applications. There are four routing modes to ensure maximum fexibility.Fourth order crossovers and adaptable acoustical controls allow for seamless system integration and the bass management function can be remotely controlled.

Solid cabinet construction
• Well-braced cabinet with extremely low tuning frequency minimizes unwanted resonances
• Long excursion, low distortion, magnetically shielded 10" driver
• Bass compression is minimized using large capacity low turbulence dual reflex ports
• Latest high e ciency, low heat dissipation power amplification techniques
• Electronics can be remote located (REK 3) for reduced cabling and ease of installation and use

2.0 / 0.1 Bass Manager
• Can be used for stereo and multichannel applications
• Bass management with 4th order, 80 Hz crossover: compatible with typical systems
• Bass manager can be bypassed using a simple switch or footswitch

Installation flexibility
• 4-mode operation for many application needs
• Sum output for multiple subwoofer systems: higher SPL, decreased system distortion, Plane Wave Bass Array (PWBA) to reduce lateral room modes
• Extensive Acoustical Controls: Low cut, parametric EQ, phase, input/output level
• Switchable mains voltage
• Input Ground Lift

Uses
• Bass extension for loudspeakers down to 18 Hz
• Increasing the maximum SPL of loudspeakers by up to 8 dB
• Decreasing harmonic and intermodulation distortion of loudspeakers
• Reproducing the LFE channel
• Reproducing the "Sub" signal of a bass managed multichannel source
• Making a Plane Wave Bass Array system
• Working as an extension for KH 810, KH 870 and KH 805 subwoofer systems.
