Neumann KH 80 DSP 4+1" Active Monitor, Single

Simply the Best 4" on the Market

Pure Sound

With its digital core, the KH 80 DSP enables filtering functions and room adjustment options, which brings reference level reproduction to any environment. Even with its compact design, it has extraordinary reserve capacity - as well as the classic strengths of the Neumann monitor philosophy: clearly defined dispersion angle, distortion-free design and sophisticated material selection.

Open Up the Full Potential for the KH80 DSP

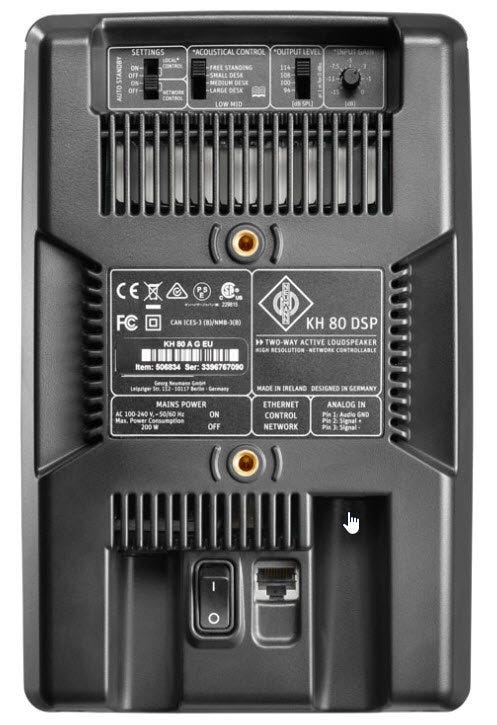

Via standard IP networking, Neumann.Control gives full access to all the functions of the KH 80 DSP Studio Monitor not already available via the back panel. Systems of loudspeakers can be defined, from mono to 3D, aligned for a good in-room sound, and then operated centrally: Setup, Align, Operate. Neumann.Control for iPad®

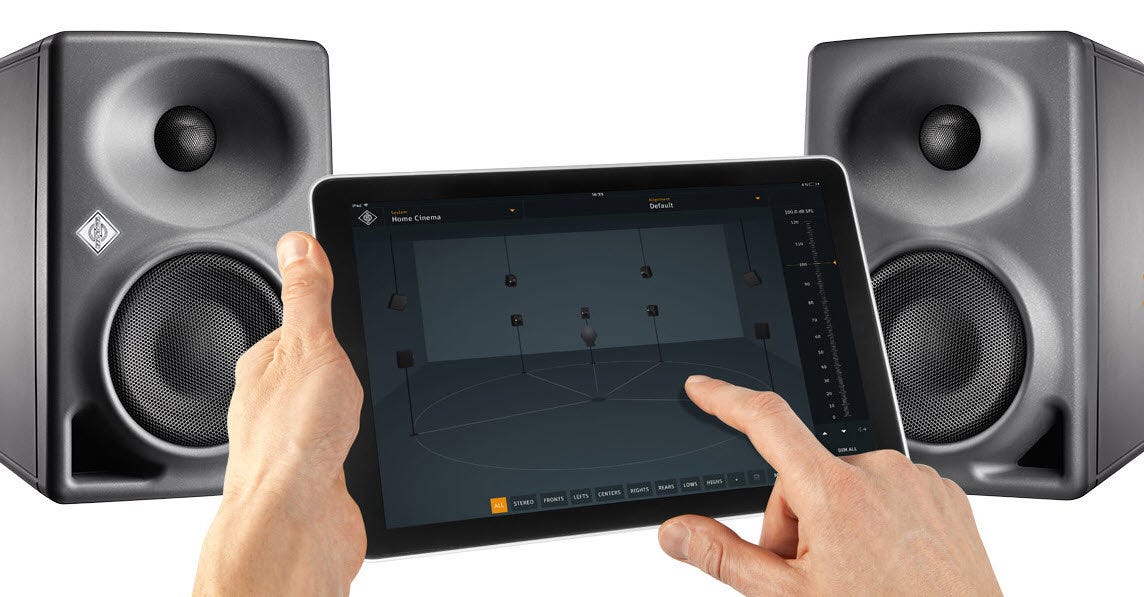

Control and Align the Monitor with your iPad

The Neumann.Control app for iPads® offers several features allowing you to set up, align and operate the KH 80 DSP even in large setups up to 9 loudspeakers.

Setup:

• 1, 2, 4, 5, 7 and 9 loudspeakers
• Identify loudspeakers on the network that are in the room
• Assign the identified loudspeakers to positions in the room

Align:

• Guided Alignment – a set of simple questions resulting in a well-balanced sound. The Guided Alignment is a process where you are asked very simple questions about the room and the loudspeaker position, and then the app adjusts the response of each loudspeaker accordingly
• Manual Alignment – an 8-band fully parametric equalizer for expert users. In Manual Alignment expert users have complete freedom to adjust an 8-band parametric equalizer, levels and delays in each loudspeaker as they wish. Manual Alignment can also be used to edit Guided Alignments in a more detailed way.

Operate:

• System and alignment selection
• Volume control, preset levels, dim, mute all
• Groups, solos, mutes
• Other system settings such as delay, standby level and logo brightness

System Requirements: iPad® with iOS® 10 or higher

Getting Better Studio Sound

Sound should be clear, neutral and precise — when you mean business refining your mix. But even the size of your desk changes the pattern of the bass range. So, what to consider when setting up a monitor system? Watch the video to find out.

If you're seeking professional-grade audio equipment, the KH 80 DSP 4+1" Active Monitor, a pioneering DSP Studio Monitor from the esteemed brand Neumann, is a high-quality, reliable, and innovative choice. This durable active monitor is Neumann's first foray into DSP Studio Monitors, offering superior consistency, enhanced accuracy, and unparalleled flexibility compared to traditional analog models.

The KH 80 DSP is a two-way (4" + 1") active bi-amplified monitor, equipped with a state-of-the-art DSP engine and network control. It boasts a Mathematically Modeled Dispersion Waveguide (MMD) and an analog input, along with a comprehensive selection of mounting hardware.

One of its standout features is the standard IP network connection, which enables the monitoring system to be controlled via Neumann.Control. This software is compatible with PC/Mac computers and Android/iOS tablets, offering the user the flexibility to operate the loudspeaker in diverse acoustical conditions, with any source equipment, and in a wide array of physical locations.

The KH 80 DSP is the epitome of advanced acoustic and electronic simulation and measurement technologies, ensuring the most precise sound reproduction possible. It's designed for use as a near-field monitor, a front loudspeaker in a mid-sized multi-channel system, or as a rear loudspeaker in a larger multi-channel system.

Ideal for music production, broadcast centers, OB vans, and post-production studios, this monitor excels in tracking, mixing, and mastering tasks. Its compact size also makes it perfectly suited for desktop applications and home use, delivering professional audio quality in any setting.
