Neumann KM 143 Wide Cardioid Polar Pattern Microphone with AK 43 Capsule, 20Hz-20kHz Frequency Response, 50 Ohms Impedance

SKU: NMKM143 MFR: 007109
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this Neumann condenser microphone, perfect for studio recording.
  • Achieve exceptional sound quality with a wide cardioid polar pattern, ideal for vocals & instruments.
  • Enjoy low noise performance, ensuring clean recordings with a high signal-to-noise ratio of 78dB.
  • This durable Neumann microphone features a robust design, offering years of reliable use in any studio.
  • Connect easily via XLR to your audio interface; phantom power provides optimal microphone performance.
  • Get professional results with the KM 143; its wide-angle cardioid capsule delivers detailed sound.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Neumann KM 143 Specifications

  • Transducer

    Pressure Gradient Condenser

  • Polar Pattern

    Wide-Angle Cardioid

  • Frequency Response

    20 Hz - 20 kHz

  • Dynamic Range (Typical)

    122 dB

  • Signal-to-Noise Ratio

    69 dB Related at 1 Pa at 1 kHz (CCIR dB)
    78 dB Related at 1 Pa at 1 kHz (A-Weighted dB)

  • Maximum Input Sound Level

    138 dB Less than 0.5% THD (without Preattenuation)
    148 dB Less than 0.5% THD (with Preattenuation)

  • Power Requirements

    Phantom +48v

  • Output Impedance

    50 Ohms

  • Output Connectors

    XLR-3 Type

  • Pad

    Yes, -10 dB Preattenuation

  • Dimensions (L x D)

    3.68 x 0.88" / 93.47 x 22.35mm

  • Weight

    2.82oz / 79.94g

  • UPC Code

    615104071094

About Neumann KM 143

Over the years, Neumann has established itself as a trusted name in the audio industry, and the Neumann KM 143 Wide Cardioid Polar Pattern Microphone is a testament to their commitment to quality and versatility. This professional-grade microphone set combines the KM 100 phantom power supply/output stage and the AK 43 wide-angled cardioid microphone element, offering an all-in-one solution for diverse audio recording needs.

The KM 143 microphone is designed with a modular approach, allowing for the interchangeability of microphone elements and accessories based on individual applications. This feature makes it a versatile choice for audio professionals, catering to a wide range of recording scenarios.

The KM 100 phantom power supply is engineered for quick connection to all compatible elements and accessories. It utilizes transformer-less circuitry, ensuring high output capability and low self-noise. The balanced XLR output is safeguarded against radio frequency interference, promising a clear and uninterrupted audio output.

The heart of this microphone, the AK 43 element, boasts a pressure gradient, single diaphragm transducer with a wide-angle cardioid polar pattern. This pattern offers a more generous pick-up area than conventional cardioid microphones, making it an excellent choice for ambiance recording, vocal recording, stereo miking, and close miking of instruments.

The microphone's attenuation at various degrees (4dB at 90 degrees, 8dB at 135 degrees, and 11dB at 180 degrees) further enhances its sound capturing capabilities. The entire microphone circuitry is ingeniously built into the capsule on a single hybrid module, measuring just 2cm in area. This compact design ensures a pristine output signal without any coloration.

The set also includes a swivel mount and windscreen. The mount clamps to any flat surface, providing flexibility in positioning, while the windscreen significantly reduces distortion caused by explosive "pops". With the Neumann KM 143 Wide Cardioid Polar Pattern Microphone, you can expect a reliable, high-quality, and versatile audio recording experience.

Neumann KM 143 Features

  • Professional wide cardioid microphone with modular design for studio and live performance

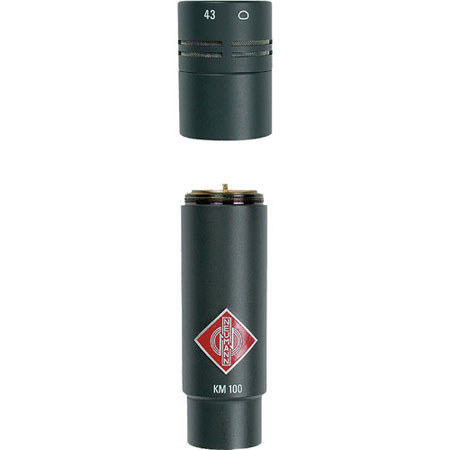

  • Neumann KM 143 set includes KM 100 phantom power supply and AK 43 wide-angled cardioid element
  • Transformer-less circuitry in KM 100 for high output and low noise
  • Wide-angle cardioid polar pattern for versatile recording applications
  • Balanced XLR output with RF interference protection for clear audio
  • Accessory swivel mount & windscreen included to reduce "pops" & enhance positioning flexibility

Warranty Information

This product has a limited warranty of 12 months for parts and 24 months for labor.

Key Features

  • Capture pristine audio with this Neumann condenser microphone, perfect for studio recording.
  • Achieve exceptional sound quality with a wide cardioid polar pattern, ideal for vocals & instruments.
  • Enjoy low noise performance, ensuring clean recordings with a high signal-to-noise ratio of 78dB.
  • This durable Neumann microphone features a robust design, offering years of reliable use in any studio.
  • Connect easily via XLR to your audio interface; phantom power provides optimal microphone performance.
  • Get professional results with the KM 143; its wide-angle cardioid capsule delivers detailed sound.

What's in the box:

  • Neumann KM 143 Wide Cardioid Polar Pattern Microphone
  • KM 100 Output Stage and Powering Module
  • AK 43 Wide-Angle Cardioid Miniature Capsule
  • (WNS 100) Windscreen
  • (SG 21/17) Swivel Mount
  • Wooden Jeweler's Case
  • Neumann 1 Year Warranty
