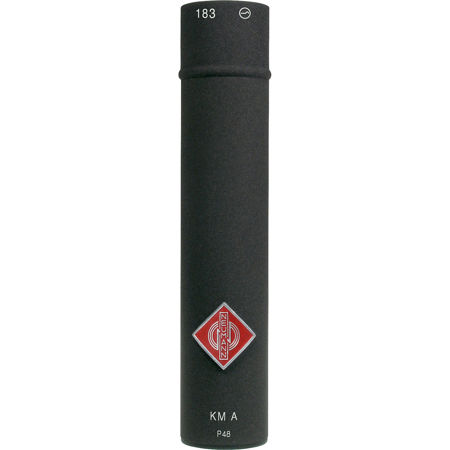

Neumann KM 183 A NX Omnidirectional Analog Microphone with KK 183 Capsule, SG21 Swivel Mount and WNS 100 Windscreen, Black

SKU: NMKM183ANX MFR: KM 183 A NX
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this Neumann condenser microphone, perfect for critical recording.
  • Achieve natural, uncolored sound using the KM 183 A NX microphone's omnidirectional polar pattern.
  • Enjoy exceptionally low noise (13dB-A) for clean recordings with this high-quality microphone.
  • Rely on the robust build quality of this Neumann microphone for years of dependable studio use.
  • Connect easily via XLR to your professional audio interface for seamless integration and use.
  • Get a complete recording solution with included swivel mount & windscreen for optimal performance.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Neumann KM 183 A NX Specifications

KM 183 A NX Microphone

KM 183 A NX Microphone

Jump to...
  • Color

    Black

  • Acoustical operating principle

    Pressure transducer

  • Directional Pattern

    Omni diffuse-field equalized

  • Frequency Range

    20Hz - 20kHz

  • Sensitivity at 1 kHz into 1 kohm

    12 mV/Pa

  • Rated Impedance

    50 ohms

  • Rated load impedance

    1000 ohms

  • Equivalent noise level, CCIR 1

    24dB

  • Equivalent noise level

    13dB-A (A-weighted 2)

  • Max SPL for THD 0.5% 3

    140dB

  • Max SPL for THD 0.5% w/ preattenuation 4

    150dB

  • Signal-to-noise ratio

    CCIR (re. 94 dB SPL) 5: 69dB
    A-weighted (re. 94 dB SPL) 6: 81dB

  • Supply voltage (P48, IEC 61938)

    48V

  • Current consumption

    max. 3.5 mA (P48, IEC 61938)

  • Matching connector

    XLR 3 F

  • Diameter

    0.86" (22mm)

  • Length

    Capsule only: 0.70" (18mm)
    Microphone: 4.2" (108mm)

  • Weight

    Capsule Only: 0.38 oz (11g)

WNS 100 Windscreen

Jump to...
  • Material

    Foam

  • Diameter

    1.77" (45mm)

  • UPC Code

    615104086319

About Neumann KM 183 A NX

Just imagine the audio quality you can achieve with the KM 183 A NX Omnidirectional Analog Microphone. This high-quality, professional-grade microphone is part of the innovative Neumann KM A/D small diaphragm microphone system, renowned for its flexibility and adaptability in both analog and digital domains.

The KM 183 A NX features the KK 183 capsule, one of eight different small diaphragm capsules that can be combined with either an analog output stage (KM A) or a digital AES 42 output stage (KM D). This modular system is designed to meet the most demanding applications, making it an ideal choice for professional recording studios, live performances, and other high-quality audio capture scenarios.

The KM 183 A NX microphone system is available in either nickel or Nextel black (nx) finishes, ensuring it fits seamlessly into any recording setup. The system's modular design allows for the capsule to be detached and used at a distance of up to 100 meters (330 feet) from the output stage, connected via a special cable. This flexibility, combined with the availability of various accessory parts, allows for a customized and flexible microphone setup to suit your specific needs.

The KK 183 capsule is the heart of this microphone. It's an omnidirectional black capsule that provides a uniform frequency response and pickup area, both at the frontal and off-axis sections of the capsule. This ensures consistent, high-quality audio capture from all directions.

The package also includes the Neumann Swivel Mount with a plastic clamp, designed for the KM series microphones. This mount provides a secure and adjustable setup, with a 5/8"-27 female thread and a thread adapter to connect to 1/2"- and 3/8" stands.

To further enhance your audio capture, the KM 183 A NX comes with the WNS 100 1.77" Windscreen. This open-cell polyurethane foam windscreen is designed to attenuate close-range sounds, wind, and fast movements of the microphone boom, ensuring clear and undistorted audio.

Experience the difference of superior audio capture with the KM 183 A NX Omnidirectional Analog Microphone, a testament to Neumann's commitment to innovative, high-quality audio equipment.

Neumann KM 183 A NX Features

  • Omnidirectional polar pattern with excellent off-axis behavior
  • Diffuse-field equalized
  • Pressure transducer with unlimited bass response
  • Very low self-noise (13 dB-A)
  • Transformerless circuitry
  • Compact size, visually unobtrusive

Warranty Information

This product has a limited warranty of 12 months for parts and 24 months for labor.

Key Features

  • Capture pristine audio with this Neumann condenser microphone, perfect for critical recording.
  • Achieve natural, uncolored sound using the KM 183 A NX microphone's omnidirectional polar pattern.
  • Enjoy exceptionally low noise (13dB-A) for clean recordings with this high-quality microphone.
  • Rely on the robust build quality of this Neumann microphone for years of dependable studio use.
  • Connect easily via XLR to your professional audio interface for seamless integration and use.
  • Get a complete recording solution with included swivel mount & windscreen for optimal performance.

What's in the box:

  • KM 183 A NX Omnidirectional Analog Microphone with KK 183 Capsule
  • SG21 Swivel Mount
  • WNS 100 Windscreen
  • Neumann 1 Year Warranty
