21% Off

Neumann KM 184 A nx Small Diaphragm Condenser Cardiod Microphone, Nextel Black

SKU: NMKM184ANX MFR: 008632
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this Neumann condenser microphone, perfect for studio recording.
  • Achieve exceptional clarity using its cardioid polar pattern, ideal for focused sound capture.
  • Enjoy low noise performance; this microphone ensures clean recordings with minimal interference.
  • The KM 184 A nx offers a wide frequency range, capturing every nuance of your performance.
  • Built for durability, this Neumann microphone provides years of reliable studio use and value.
  • This small diaphragm condenser mic excels in recording vocals, acoustic instruments, and more.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Neumann KM 184 A nx Specifications

KM 184 A NX Cardiod Microphone

KM 184 A NX Cardiod Microphone

Jump to...
  • Color

    Nextel Black

  • Acoustical operating principle

    Pressure gradient transducer

  • Directional Pattern

    Cardioid

  • Frequency Range

    20 Hz...20 kHz

  • Sensitivity at 1 kHz into 1 kohm

    15 mV/Pa

  • Impedance

    Rated: 50 ohms
    Rated Load: 1000 ohms

  • Equivalent noise level

    CCIR: 22 dB
    A-weighted: 13 dB-A

  • Maximum SPL for THD 0.5%

    138 dB
    148 dB (with preattenuation)

  • Signal-to-noise ratio (re. 94 dB SPL)

    CCIR: 70 dB
    A-weighted: 81 dB

  • Supply voltage (P48, IEC 61938)

    48 V

  • Current consumption (P48, IEC 61938)

    max. 3.5 mA

  • Matching connector

    XLR 3 F

  • Length

    Capsule: 0.70" (18mm)
    Microphone: 4.25" (108mm)

  • Diameter

    0.86" (22mm)

  • Weight

    Capsule: 0.52 oz (15g)

WNS 100 Windscreen

Jump to...
  • Compatibility

    KM 80/KM 100/KM 180/KM D/KMR Series Microphones

SG 21 BK Stand Mount Swivel

Jump to...
  • Compatibility

    KM 100 and Series 180 Microphones

  • Material

    Foam

  • Diameter

    1.77" (45mm)

  • UPC Code

    615104086326

About Neumann KM 184 A nx

Be at the forefront of audio recording with the KM 184 A nx Small Diaphragm Condenser Cardioid Microphone in Nextel Black. This professional-grade microphone is a part of the innovative Neumann KM A/D small diaphragm microphone system, renowned for its versatility and high-quality performance in demanding applications.

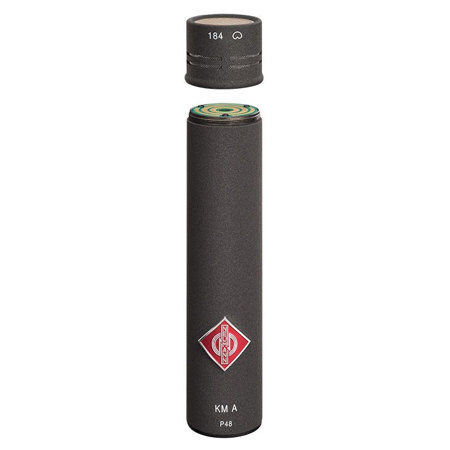

The KM 184 A nx is a modular microphone, featuring the KK 184 capsule combined with the analog output stage KM A. This combination is just one of the many options within the Neumann system, offering maximum flexibility in both analog and digital domains. The system allows for the pairing of eight different small diaphragm capsules, including the KK 120 and KK 185, with either an analog output stage (KM A) or a digital AES 42 output stage (KM D).

The KK 184 capsule is a pressure gradient transducer with a cardioid characteristic, providing an even frequency curve and no coloration of sound over a wide pickup angle. This makes it ideal for capturing detailed and accurate sound from the source in front of the microphone, while minimizing sound from other directions.

The KM 184 A nx also comes with a WNS 100 windscreen, made from open-cell polyurethane foam. This windscreen effectively reduces close range sounds, wind, and noises caused by fast movements of the microphone boom, without causing interfering resonances or influencing the directional pattern.

Finally, the microphone includes a SG 21 bk Stand Mount, a swivel mount with a plastic clamp designed for miniature microphones. It features a 5/8"-27 female thread, plus a thread adapter to connect to 1/2"- and 3/8" stands, ensuring adaptability to diverse fields of application.

Available in both nickel and Nextel black (nx), the KM 184 A nx Small Diaphragm Condenser Cardioid Microphone is a durable and reliable choice for professionals seeking high-quality audio recording equipment.

Neumann KM 184 A nx Features

  • Directional characteristic: cardioid
  • Part of the modular microphone system KM A/D
  • Comprehensive range of accessories

Warranty Information

This product has a limited warranty of 12 months for parts and 24 months for labor.

Key Features

  • Capture pristine audio with this Neumann condenser microphone, perfect for studio recording.
  • Achieve exceptional clarity using its cardioid polar pattern, ideal for focused sound capture.
  • Enjoy low noise performance; this microphone ensures clean recordings with minimal interference.
  • The KM 184 A nx offers a wide frequency range, capturing every nuance of your performance.
  • Built for durability, this Neumann microphone provides years of reliable studio use and value.
  • This small diaphragm condenser mic excels in recording vocals, acoustic instruments, and more.

What's in the box:

  • KM 184 A nx Small Diaphragm Condenser Cardiod Microphone
  • WNS 100 Windscreen
  • SG 21 BK Stand Mount Swivel
  • Wooden Box
  • Neumann 1 Year Limited Warranty
