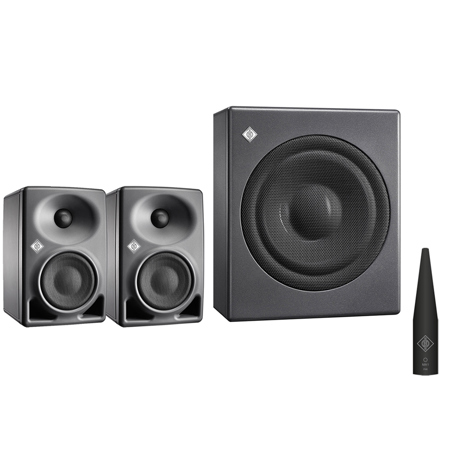

Neumann Monitor Alignment Kit 3 with 2x KH 80 DSP A G US Monitor, KH 750 DSP D G Subwoofer, MA 1 Microphone and Software

SKU: NMMONAK3 MFR: 509142
Earn VIP Reward Points

Key Features

  • Achieve peak audio precision with this Neumann monitor alignment kit for your studio setup.
  • Experience superior sound with the KH 80 DSP monitors, offering accuracy and clarity for mixing.
  • The MA 1 microphone ensures precise calibration, optimizing your listening environment effortlessly.
  • Fine-tune your low-end frequencies with the KH 750 DSP subwoofer for a balanced audio spectrum.
  • Enjoy seamless integration with included software, providing advanced control over your sound system.
  • This Neumann kit delivers unparalleled audio quality, ideal for critical listening and mixing tasks.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Neumann Monitor Alignment Kit Specifications

Microphone: General

Microphone: General

Jump to...
  • Form Factor

    Stand/Boom Mount

  • Sound Field

    Mono

  • Operating Principle

    Pressure Operated

  • Element Type

    1x Electret Condenser

  • Polar Pattern

    Omnidirectional

  • Windscreen

    Foam (Available Separately)

Microphone: Performance

Jump to...
  • Frequency Range

    20 Hz to 20 kHz

  • Maximum SPL

    132 dB SPL

  • Impedance

    50 Ohms

  • Load Impedance

    1000 Ohms

  • Sensitivity

    30 mV/Pa

  • Signal-to-Noise Ratio

    67 dB A-Weighted

  • Equivalent Noise Level

    27 dB A-Weighted

  • THD

    0.5%

Microphone: Connectivity

Jump to...
  • Output Connector

    1x XLR 3-Pin Male (on Mic)

Microphone: Power

Jump to...
  • Operating Voltage

    48 V +/- 4 V

  • Operating Current Consumption

    3 mA

Microphone: Physical

Jump to...
  • Color

    Black

  • Mounting

    Mic Clip/Stand Adapter (Included)

  • Operating Temperature

    32 Degree F to 158 Degree F (0 Degree C to 70 Degree C)

  • Operating Humidity

    90%

  • Storage Temperature

    -4 Degree F to 158 Degree F (-20 Degree C to 70 Degree C)

  • Dimensions (Dia. x L)

    0.9 x 4.6" (23 x 117mm)

  • Weight

    1.3 oz (37g)

Subwoofer: General

Jump to...
  • Monitor Type & Configuration

    Active Subwoofer

  • Number of Included Monitors

    Single Monitor

  • Enclosure

    Sealed, Shielded

  • Total Power Output

    256 W

Subwoofer: Drivers

Jump to...
  • Subwoofer

    1x 10" (25.4cm) Cone

Subwoofer: Performance

Jump to...
  • Frequency Range

    18 Hz to 300 Hz

  • Frequency Response

    18 Hz to 800 Hz +/- 6 dB (Free field frequency response; 18 Hz to 750 Hz free field frequency response at +/-3 dB)

  • Maximum Sound Pressure Level (SPL)

    105 dB

  • Dynamic Range

    119 dBA (>120 dBA A/D/A, >123 dBA D/A)

  • THD+N

    < -100 dB (Analog)
    < 90 dB (Digital)

  • Maximum Input Level

    +24 dBu

  • Analog Input Sensitivity/Gain

    +2 dB to -12 dB

  • Self-Generated Noise

    Less Than 20 dBA (at 3" (10cm))

  • Protections and Limiting

    Limiter, Peak Limiter, Thermal Limiting

  • CMRR

    56 dB

Subwoofer: Signal Processing

Jump to...
  • EQ

    1x LF Shelf
    1x HF Shelf (These Filters, Plus 8 Parametric Controls, are available via Neumann.Control)

  • Filters

    1x Low-Pass

  • Crossover Frequency

    80 Hz (60 to 100 Hz via Neumann.Control)

  • Crossover Type

    Active

  • Phase Adjustment

    0 / 180 Degree Phase Inversion (0, 45, 90, and 135 via Neumann.Control)

Subwoofer: Connectivity

Jump to...
  • Audio I/O

    2x XLR 3-Pin Balanced Input
    2x XLR 3-Pin Balanced Output

  • Digital Audio I/O

    1x BNC Coaxial AES3 Input
    1x BNC Coaxial AES3 Output

  • Network I/O

    1x RJ45 Ethernet

Subwoofer: Power

Jump to...
  • AC Input Power

    100 to 240 VAC, 50/60 Hz

  • Power Consumption

    410 W (Maximum)

Subwoofer: Physical

Jump to...
  • Color

    Black

  • Enclosure Material

    Aluminum, Wood

  • Operating Temperature

    50 Degree F to 104 Degree F (10 Degree C to 40 Degree C)

  • Storage Temperature

    -13 Degree F to 158 Degree F (-25 Degree C to 70 Degree C)

  • Operating Humidity

    90%

  • Dimensions (H x W x D)

    15.07 x 12.99 x 15.07" (383 x 330 x 383mm)

  • Weight

    43 lbs (19.5kg)

Studio Monitor: General

Jump to...
  • Monitor Type & Configuration

    Active 2-Way

  • Number of Included Monitors

    Single Monitor

  • Enclosure

    Bass-Reflex/Ported, Shielded

  • Total Power Output

    190 W

Studio Monitor: Drivers

Jump to...
  • Tweeter

    1x 1" (25.4mm) Dome

  • Woofer

    1x 4" (10.16cm) Composite Cone

  • Amplifiers

    LF: 90 W / 120 W Peak
    HF: 50 W / 70 W Peak

Studio Monitor: Performance

Jump to...
  • Frequency Range

    53 Hz to 21 kHz +/- 6 dB
    57 Hz to 21 kHz +/- 3 dB

  • Maximum Sound Pressure Level (SPL)

    108.8 dB

  • Dynamic Range

    114 dBA

  • Maximum Input Level

    +24 dBu (Balanced)

  • Analog Input Sensitivity/Gain

    0 dB to -15 dB (Incrementally Variable)

  • Protections and Limiting

    Excursion Limiter, Peak Limiter, Soft Limiter, Thermal Limiting

Studio Monitor: Signal Processing

Jump to...
  • EQ

    1x Low-Mid Shelf

  • Crossover Frequency

    Low-Pass: 1.8 kHz, 48 dB/Octave Slope

Studio Monitor: Connectivity

Jump to...
  • Audio I/O

    1x Combo XLR-1/4" TRS Balanced Input

  • Network I/O

    1x RJ45 Ethernet

Studio Monitor: Power

Jump to...
  • AC Input Power

    100 to 240 VAC, 50/60 Hz

  • Power Consumption

    180 W (Maximum)

Studio Monitor: Physical

Jump to...
  • Color

    Gray

  • Mounting Points

    2x M6 (Rear Panel)

  • Operating Temperature

    42 Degree F to 72 Degree F (10 Degree C to 40 Degree C)

  • Storage Temperature

    -13 Degree F to 158 Degree F (-25 Degree C to 70 Degree C)

  • Dimensions (W x H x D)

    6.1 x 9.2 x 7.6" (154 x 233 x 194mm)

  • Weight

    9 lbs (4.1kg)

  • UPC Code

    615104356108

About Neumann Monitor Alignment Kit

The Monitor Alignment Kit 3, featuring 2x KH 80 DSP A G US Monitor, KH 750 DSP D G Subwoofer, MA 1 Microphone, and Software, is a high-quality, professional-grade solution for audio and video production. This innovative kit from the renowned brand Neumann is designed to deliver superior sound quality in any setting, from home studios to professional control rooms.

The centerpiece of this kit is Neumann's Automatic Monitor Alignment MA 1, a tool developed from decades of experience in aligning reference monitoring systems. This advanced software uses an individually calibrated measurement microphone to analyze your acoustic environment in a guided process. The result is an optimally aligned frequency response, time of arrival, and level for precise and reliable monitoring. The MA 1 Algorithm offers the unique advantage of effective compensation of room modes, leading to increased clarity, dry bass, and a more accurate depiction of reverbs and acoustic spaces.

This kit is not just about monitoring; it's also about control. The included software is a dedicated tool for aligning network-enabled KH Line monitors in stereo systems and stereo systems with Bass Management via an additional subwoofer. The alignment data is stored and processed within the DSP-powered loudspeakers themselves, eliminating the need for plug-ins or special audio drivers. For analog Neumann studio monitors connected to a KH 750 DSP/AES67 subwoofer, the software offers the added benefit of linearizing the phase response, further enhancing the accuracy of tonality, impulse reproduction, and stereo localization.

Setting up the system is a breeze. Simply connect your KH line monitors to the outputs and the MA 1 microphone to the input of your audio interface. The software then ascertains the room's acoustic properties from the measurement data and generates individual correction parameters according to a room-specific target curve calculated by MA 1. You can even modify the target curve to suit your needs.

The Monitor Alignment Kit 3 is a comprehensive solution for professional audio and video production. It's not just a product; it's a promise of quality, innovation, and advanced technology from Neumann. Whether you're a seasoned professional or a passionate amateur, this kit offers everything you need to produce high-quality audio and video content.

Neumann Monitor Alignment Kit Features

  • Calibration algorithms jointly developed with Fraunhofer IIS
  • For stereo setups with KH 80 DSP, KH 120 II, KH 150 and all pairs of analog (non DSP-based) Neumann monitors using KH 750 DSP or KH 750 AES67 subwoofers
  • Individually calibrated measurement microphone
  • Room adaptive target curve
  • Phase and amplitude optimization for analog Neumann monitors
  • For Mac and PC

Warranty Information

This product has a limited warranty of 24 months for parts and 24 months for labor.

Key Features

  • Achieve peak audio precision with this Neumann monitor alignment kit for your studio setup.
  • Experience superior sound with the KH 80 DSP monitors, offering accuracy and clarity for mixing.
  • The MA 1 microphone ensures precise calibration, optimizing your listening environment effortlessly.
  • Fine-tune your low-end frequencies with the KH 750 DSP subwoofer for a balanced audio spectrum.
  • Enjoy seamless integration with included software, providing advanced control over your sound system.
  • This Neumann kit delivers unparalleled audio quality, ideal for critical listening and mixing tasks.

What's in the box:

  • 2x KH 80 DSP A G US Active 2-Way Studio Monitor with Mains Cable (US)
  • KH 750 DSP D G Compact DSP-Controlled Closed-Cabinet Active Subwoofer
  • MA 1 Automatic Monitor Alignment Microphone
  • Automatic Monitor Alignment Software (Download)
  • Stand Mount (SG 105)
  • 3x Mains Cables (European/UK/US Version)
  • 4x Self-Adhesive Feet
  • User Manual
  • Neumann 2 Year Limited Warranty
