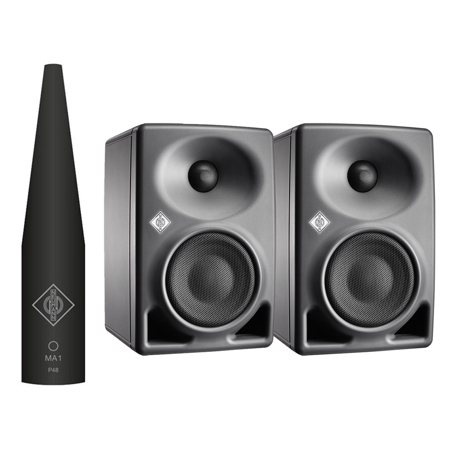

Neumann Monitor Alignment Kit 2 with 2x KH 80 DSP A G US Monitor, MA 1 Microphone and Software

SKU: NMONALKIT2 MFR: 509138
Earn VIP Reward Points

Key Features

  • Achieve superior sound with this Neumann kit, featuring reference-grade measurement microphone.
  • Ensure accurate studio monitor calibration using the included MA 1 measurement microphone.
  • Utilize the sound meter functionality for precise audio adjustments in any acoustic space.
  • Experience the ease of automatic monitor alignment with included software for optimal sound.
  • Get accurate readings with a wide frequency range, perfect for professional audio analysis.
  • Portable and lightweight design makes this kit ideal for on-site sound checks and adjustments.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Neumann Monitor Alignment Kit Specifications

Microphone: General

Microphone: General

Jump to...
  • Form Factor

    Stand/Boom Mount

  • Sound Field

    Mono

  • Operating Principle

    Pressure Operated

  • Element Type

    1x Electret Condenser

  • Polar Pattern

    Omnidirectional

  • Windscreen

    Foam (Available Separately)

Microphone: Performance

Jump to...
  • Frequency Range

    20 Hz to 20 kHz

  • Maximum SPL

    132 dB SPL

  • Impedance

    50 Ohms

  • Load Impedance

    1000 Ohms

  • Sensitivity

    30 mV/Pa

  • Signal-to-Noise Ratio

    67 dB A-Weighted

  • Equivalent Noise Level

    27 dB A-Weighted

  • THD

    0.5%

Microphone: Connectivity

Jump to...
  • Output Connector

    1x XLR 3-Pin Male (on Mic)

Microphone: Power

Jump to...
  • Operating Voltage

    48 V +/- 4 V

  • Operating Current Consumption

    3 mA

Microphone: Physical

Jump to...
  • Color

    Black

  • Mounting

    Mic Clip/Stand Adapter (Included)

  • Operating Temperature

    32 Degree F to 158 Degree F (0 Degree C to 70 Degree C)

  • Operating Humidity

    90%

  • Storage Temperature

    -4 Degree F to 158 Degree F (-20 Degree C to 70 Degree C)

  • Dimensions (Dia. x L)

    0.9 x 4.6" (23 x 117mm)

  • Weight

    1.3 oz (37g)

Studio Monitor: General

Jump to...
  • Monitor Type & Configuration

    Active 2-Way

  • Number of Included Monitors

    Single Monitor

  • Enclosure

    Bass-Reflex/Ported, Shielded

  • Total Power Output

    190 W

Studio Monitor: Drivers

Jump to...
  • Tweeter

    1x 1" (25.4mm) Dome

  • Woofer

    1x 4" (10.16cm) Composite Cone

  • Amplifiers

    LF: 90 W / 120 W Peak
    HF: 50 W / 70 W Peak

Studio Monitor: Performance

Jump to...
  • Frequency Range

    53 Hz to 21 kHz +/- 6 dB
    57 Hz to 21 kHz +/- 3 dB

  • Maximum Sound Pressure Level (SPL)

    108.8 dB

  • Dynamic Range

    114 dBA

  • Maximum Input Level

    +24 dBu (Balanced)

  • Analog Input Sensitivity/Gain

    0 dB to -15 dB (Incrementally Variable)

  • Protections and Limiting

    Excursion Limiter, Peak Limiter, Soft Limiter, Thermal Limiting

Studio Monitor: Signal Processing

Jump to...
  • EQ

    1x Low-Mid Shelf

  • Crossover Frequency

    Low-Pass: 1.8 kHz, 48 dB/Octave Slope

Studio Monitor: Connectivity

Jump to...
  • Audio I/O

    1x Combo XLR-1/4" TRS Balanced Input

  • Network I/O

    1x RJ45 Ethernet

Studio Monitor: Power

Jump to...
  • AC Input Power

    100 to 240 VAC, 50/60 Hz

  • Power Consumption

    180 W (Maximum)

Studio Monitor: Physical

Jump to...
  • Color

    Gray

  • Mounting Points

    2x M6 (Rear Panel)

  • Operating Temperature

    42 Degree F to 72 Degree F (10 Degree C to 40 Degree C)

  • Storage Temperature

    -13 Degree F to 158 Degree F (-25 Degree C to 70 Degree C)

  • Dimensions (W x H x D)

    6.1 x 9.2 x 7.6" (154 x 233 x 194mm)

  • Weight

    9 lbs (4.1kg)

  • UPC Code

    615104356023

About Neumann Monitor Alignment Kit

When it comes to professional audio monitoring, the Monitor Alignment Kit 2 with 2x KH 80 DSP A G US Monitor, MA 1 Microphone, and Software stands as a testament to Neumann's commitment to high-quality and innovative audio solutions. This advanced kit is designed to ensure optimal sound quality in any environment, from home studios to professional control rooms.

The kit includes two KH 80 DSP A G US studio monitors, a MA 1 microphone, and software, providing a comprehensive solution for audio monitoring and alignment. The MA 1 microphone, individually calibrated, works in tandem with the software to analyze your acoustic environment in a guided process.

The software employs advanced algorithms, honed from decades of experience in aligning reference monitoring systems, to ensure optimally aligned frequency response, time of arrival, and level for precise and reliable monitoring. The MA 1 Algorithm's unique feature is its ability to provide precise and effective compensation of room modes, resulting in increased clarity, consistency across monitors, dry bass, and a more accurate depiction of reverbs and acoustic spaces.

The Automatic Alignment software MA 1 is a dedicated tool for aligning network-enabled KH Line monitors in stereo systems and stereo systems with Bass Management via an additional subwoofer. It's an integrated solution with novel algorithms, specifically designed for Neumann studio monitors. The alignment data is stored and processed within the DSP-powered loudspeakers themselves, eliminating the need for plug-ins or special audio drivers.

The MA 1 software also offers advanced functions such as deactivating the subwoofers or switching between different alignment presets. For surround and immersive setups, a Multichannel Extension for MA 1 is available as a paid extra license.

The Monitor Alignment Kit 2 is not just a product, but the beginning of a new era in monitoring. With its outstanding acoustic results for stereo setups and the promise of future software function expansions, this kit is a professional's choice for achieving high-quality audio monitoring and alignment.

Neumann Monitor Alignment Kit Features

  • Calibration algorithms jointly developed with Fraunhofer IIS
  • For stereo setups with KH 80 DSP, KH 120 II, KH 150 and all pairs of analog (non DSP-based) Neumann monitors using KH 750 DSP or KH 750 AES67 subwoofers
  • Individually calibrated measurement microphone
  • Room adaptive target curve
  • Phase and amplitude optimization for analog Neumann monitors
  • For Mac and PC

Warranty Information

This product has a limited warranty of 24 months for parts and 24 months for labor.

Key Features

  • Achieve superior sound with this Neumann kit, featuring reference-grade measurement microphone.
  • Ensure accurate studio monitor calibration using the included MA 1 measurement microphone.
  • Utilize the sound meter functionality for precise audio adjustments in any acoustic space.
  • Experience the ease of automatic monitor alignment with included software for optimal sound.
  • Get accurate readings with a wide frequency range, perfect for professional audio analysis.
  • Portable and lightweight design makes this kit ideal for on-site sound checks and adjustments.

What's in the box:

  • 2x KH 80 DSP A G US Active 2-Way Studio Monitor
  • MA 1 Automatic Monitor Alignment Microphone
  • Automatic Monitor Alignment Software (Download)
  • Mains Cable (US)
  • 4x Self-Adhesive Feet
  • Stand Mount (SG 105)
  • User Manual
  • Neumann 2 Year Limited Warranty
