22% Off

Neumann MCM 114 Set Guitar Cardioid Miniature Clip-On Microphone System

SKU: NMV8708 MFR: 008708
Earn VIP Reward Points

Key Features

  • Capture pristine sound with this Neumann cardioid microphone, perfect for acoustic instruments.
  • Achieve exceptional clarity with a wide 20 Hz-20 kHz frequency response for detailed audio.
  • Enjoy versatile mounting with the included instrument clamp, ideal for guitars and cellos.
  • Experience low-noise performance, ensuring clean recordings with minimal background interference.
  • Rely on the durable titanium build, designed to withstand the rigors of frequent use.
  • Get superior connectivity with the XLR output stage module for professional audio setups.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Neumann MCM 114 Specifications

Microphone

Microphone

Jump to...
  • Form Factor

    Gooseneck

  • Intended Sound Sources

    Acoustic Guitar, Acoustic Bass, Cello

  • Sound Field

    Mono

  • Operating Principle

    Pressure Gradient

  • Capsule

    1x Electret Condenser

  • Polar Pattern

    Cardioid

  • High-Pass Filter

    None

  • Gain Adjustment

    None

  • Windscreen

    Foam (Included)

Performance

Jump to...
  • Frequency Range

    20 Hz to 20 kHz

  • Maximum SPL

    153 dB SPL (Phantom Power)

  • Impedance

    50 Ohms

  • Load Impedance

    1000 Ohms

  • Sensitivity

    3.6 mV/Pa at 1 kHz into 1 Kilohms

  • Dynamic Range

    130 dB A-Weighted

  • Signal-to-Noise Ratio

    63 dB CCIR (Phantom Power)
    71 dB A-Weighted (Phantom Power)

  • Equivalent Noise Level

    31 dB CCIR (Phantom Power)
    23 dB A-Weighted (Phantom Power)

  • THD

    < 0.5% (Phantom Power)

Connectivity

Jump to...
  • Headphone Connector

    None

  • Cable Length

    6' (1.8m)

  • Operating Voltage

    48 V (Phantom Power)

  • Operating Current Consumption

    3.5 mA

General

Jump to...
  • Color

    Black

  • Material

    Titanium

  • Mounting

    Instrument Clamp (Included)

  • Included Case

    Soft Case

  • Included Filters

    None

  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Operating Humidity

    0 to 90%

  • Storage Temperature

    -4 to 158 Degree F (-20 to 70 Degree C)

  • Dimensions

    Capsule (Dia. x L): 0.5 x 0.4" (12 x 11mm)
    Gooseneck Length: 5.9" (150mm)

  • Weight

    Microphone: 0.1 oz (2.3g)

  • UPC Code

    615104357259

About Neumann MCM 114

Be at the forefront of acoustic amplification with the MCM 114 Set Guitar Cardioid Miniature Clip-On Microphone System, a comprehensive solution for capturing the true essence of your guitar, ukulele, Dobro, acoustic bass, or cello. This set is meticulously designed to harness the renowned Neumann sound quality in live settings, ensuring that the natural acoustics of your instrument are faithfully reproduced.

The heart of the system lies in the KK 14 capsule, a marvel of audio engineering that embodies eight meticulously crafted components. This capsule achieves an unprecedented tonal balance, enriching the bass and mid-range while maintaining crystal-clear treble frequencies. Neumann's innovative layer-based design and stringent quality control mean that each KK 14 capsule delivers consistent, neutral sound, streamlining your setup and EQ adjustments, particularly when using multiple microphones.

With an ultra-low self-noise of 23 dBA and a remarkable maximum sound level of 153 dB SPL, the KK 14 capsule is versatile enough to capture the nuances of the softest passages and the power of the loudest crescendos. Encased in a durable titanium housing, the capsule is built to withstand the rigors of the road, safeguarding its delicate components for long-term use.

Connectivity is a breeze with the MCM System's array of interchangeable cable options, including 3.5 mm jack, Lemo, 4-pin mini-XLR, and MicroDot connectors, eliminating the need for adapters. For wired applications, the MCM 100 high-end output stage pairs seamlessly with the included 3.5 mm jack cable, ensuring a stable and high-quality connection.

Mounting your microphone is effortless and secure, thanks to the system's extensive selection of instrument-specific clips. These mounting solutions are designed to be gentle on your instrument's finish and allow for quick, one-handed operation. The SH 150 gooseneck holder offers flexible positioning with rotation along one or two axes and locks in 45-degree increments, providing precise microphone placement.

Included in this complete set are the KK 14 capsule, SH 150 gooseneck, KC 1 cable brace, AC 31 cable, MCM 100 output stage, WS 110 wind shield, and the MC 9 clip, all delivered in a convenient soft case for easy transport and storage.

Elevate your live performances with the MCM 114 Set Guitar Cardioid Miniature Clip-On Microphone System, and experience the new reference in close miking with the signature Neumann sound that captures every detail of your acoustic instrument.

Neumann MCM 114 Features

  • Elevates electret principle to Neumann sound standards
  • Durability increases ROI up to tenfold
  • A single capsule for loud and soft instruments
  • Works with key transmitter bodypacks

Warranty Information

This product has a limited warranty of 24 months for parts and 24 months for labor.

Key Features

  • Capture pristine sound with this Neumann cardioid microphone, perfect for acoustic instruments.
  • Achieve exceptional clarity with a wide 20 Hz-20 kHz frequency response for detailed audio.
  • Enjoy versatile mounting with the included instrument clamp, ideal for guitars and cellos.
  • Experience low-noise performance, ensuring clean recordings with minimal background interference.
  • Rely on the durable titanium build, designed to withstand the rigors of frequent use.
  • Get superior connectivity with the XLR output stage module for professional audio setups.

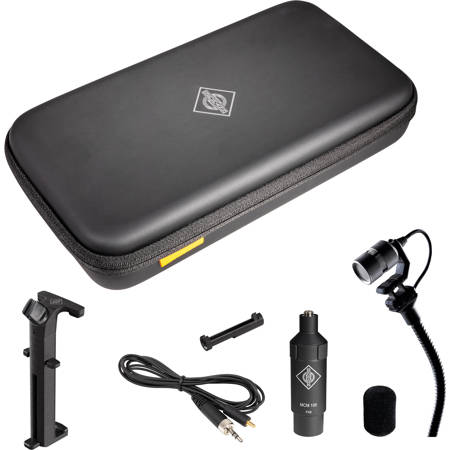

What's in the box:

  • KK 14 Cardioid Capsule
  • MCM 100 XLR Output Stage Module
  • SH 150 5.9" Flexible Gooseneck
  • AC 31 5.9' 3.5mm TRS Cable
  • KC1 Cable Braces for Gooseneck
  • MC 9 MCM Clip
  • WS 110 Foam Windscreen
  • Soft Case
  • User Manual
  • Neumann 2 Year Limited Warranty
