Neumann MCM 114 Set Bass Cardioid Miniature Clip-On Microphone System

SKU: NMV8709 MFR: 008709
Earn VIP Reward Points

Key Features

  • Capture pristine sound with this Neumann cardioid microphone, perfect for acoustic bass.
  • Experience exceptional clarity and detail with this miniature clip-on microphone system.
  • Achieve professional recordings with a wide 20 Hz - 20 kHz frequency response microphone.
  • Enjoy versatile instrument miking with included gooseneck and mounting accessories.
  • Rely on the durable titanium build of this microphone for consistent, long-lasting performance.
  • Minimize unwanted noise with the included windscreen, ensuring clean audio recordings every time.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Neumann MCM 114 Specifications

Microphone

Microphone

Jump to...
  • Form Factor

    Gooseneck

  • Intended Sound Sources

    Acoustic Bass

  • Sound Field

    Mono

  • Operating Principle

    Pressure Gradient

  • Capsule

    1x Electret Condenser

  • Polar Pattern

    Cardioid

  • High-Pass Filter

    None

  • Gain Adjustment

    None

  • Windscreen

    Foam (Included)

Performance

Jump to...
  • Frequency Range

    20 Hz to 20 kHz

  • Maximum SPL

    153 dB SPL (Phantom Power)

  • Impedance

    50 Ohms

  • Load Impedance

    1000 Ohms

  • Sensitivity

    3.6 mV/Pa at 1 kHz into 1 Kilohms

  • Dynamic Range

    130 dB A-Weighted

  • Signal-to-Noise Ratio

    63 dB CCIR (Phantom Power)
    71 dB A-Weighted (Phantom Power)

  • Equivalent Noise Level

    31 dB CCIR (Phantom Power)
    23 dB A-Weighted (Phantom Power)

  • THD

    < 0.5% (Phantom Power)

Connectivity

Jump to...
  • Headphone Connector

    None

  • Cable Length

    6' (1.8m)

  • Operating Voltage

    48 V (Phantom Power)

  • Operating Current Consumption

    3.5 mA

General

Jump to...
  • Color

    Black

  • Material

    Titanium

  • Mounting

    Instrument Clamp (Included)

  • Included Case

    Soft Case

  • Included Filters

    None

  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Operating Humidity

    0 to 90%

  • Storage Temperature

    -4 to 158 Degree F (-20 to 70 Degree C)

  • Dimensions

    Capsule (Dia. x L): 0.5 x 0.4" (12 x 11mm)
    Gooseneck Length: 5.9" (150mm)

  • Weight

    Microphone: 0.1 oz (2.3g)

  • UPC Code

    615104357266

About Neumann MCM 114

Overcome the limitations of traditional electret capsules with the innovative MCM 114 Set Bass Cardioid Miniature Clip-On Microphone System from the renowned brand, Neumann. This professional-grade microphone system is designed specifically for capturing the pure, authentic sound of string instruments, making it an ideal choice for both live performances and studio recordings.

The heart of this system is the newly developed KK 14 cardioid capsule, which offers an unprecedented level of tonal balance, body, and transparency. With its layer-based design, each of the capsule's eight key components is meticulously crafted for optimal performance and assembled by hand. This meticulous attention to detail ensures an unparalleled level of tonal consistency, with each capsule delivering the neutral, signature Neumann sound.

The MCM 114 Set Bass Cardioid Miniature Clip-On Microphone System boasts an ultra-low self-noise of 23 dBA and an impressively high maximum sound level of 153 dB SPL, ensuring flawless results from both quiet and loud instruments. Encased in a durable titanium housing, the sensitive components of the microphone are well-protected, ensuring longevity and reliable performance for years to come.

This versatile microphone system offers interchangeable cable options, including 3.5 mm jack, Lemo, 4-pin mini-XLR, and MicroDot connectors, eliminating the need for adapters. It also supports wired connections via the MCM 100 high-end output stage and the 3.5 mm jack cable.

The MCM 114 Set Bass Cardioid Miniature Clip-On Microphone System also features a comprehensive range of mounting options, allowing for easy and secure positioning on any instrument. The gentle mechanics of the mounting clips protect even the most delicate surfaces, while the gooseneck holder's ability to rotate along one or two axes and lock in 45-degree increments ensures precise adjustment.

Included in this complete set are the KK 14 capsule, SH 150 gooseneck, KC 1 cable brace, AC 31 cable, MCM 100 output stage, WS 110 wind shield, and MC 3 clip. All of these components are conveniently delivered in a handy soft case, making the MCM 114 Set Bass Cardioid Miniature Clip-On Microphone System a comprehensive solution for capturing high-quality audio from string instruments.

Neumann MCM 114 Features

  • Elevates electret principle to Neumann sound standards
  • Durability increases ROI up to tenfold
  • A single capsule for loud and soft instruments
  • Works with key transmitter bodypacks

Warranty Information

This product has a limited warranty of 24 months for parts and 24 months for labor.

Key Features

  • Capture pristine sound with this Neumann cardioid microphone, perfect for acoustic bass.
  • Experience exceptional clarity and detail with this miniature clip-on microphone system.
  • Achieve professional recordings with a wide 20 Hz - 20 kHz frequency response microphone.
  • Enjoy versatile instrument miking with included gooseneck and mounting accessories.
  • Rely on the durable titanium build of this microphone for consistent, long-lasting performance.
  • Minimize unwanted noise with the included windscreen, ensuring clean audio recordings every time.

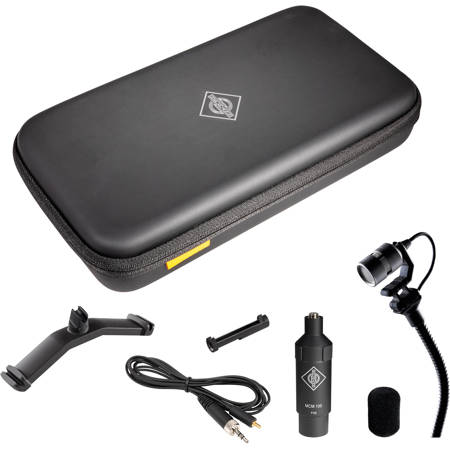

What's in the box:

  • KK 14 Cardioid Capsule
  • MCM 100 XLR Output Stage Module
  • SH 150 5.9" Flexible Gooseneck
  • AC 31 5.9' 3.5mm TRS Cable
  • KC1 Cable Braces for Gooseneck
  • MC 3 MCM String Clip
  • WS 110 Foam Windscreen
  • Soft Case
  • User Manual
  • Neumann 2 Year Limited Warranty
