26% Off

Neumann MCM 114 Set Brass/Sax/Uni Cardioid Miniature Clip-On Microphone System

SKU: NMV8711 MFR: 008711
Earn VIP Reward Points

Key Features

  • Capture pristine sound with this Neumann clip-on microphone, perfect for brass & sax!
  • Achieve exceptional clarity with the MCM 114's wide 20 Hz - 20 kHz frequency response.
  • Enjoy secure instrument attachment using the included universal clamp for worry-free performance.
  • Experience low-noise recording; the Neumann microphone ensures a clean, professional sound.
  • The cardioid polar pattern minimizes unwanted background noise, ideal for live stage use.
  • Durable titanium build ensures this miniature mic stands up to the rigors of frequent use.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Neumann MCM 114 Specifications

Microphone

Microphone

Jump to...
  • Form Factor

    Gooseneck

  • Intended Sound Sources

    Percussion, Trumpet, Trombone, Saxophone, Baritone Saxophone, Soprano Saxophone

  • Sound Field

    Mono

  • Operating Principle

    Pressure Gradient

  • Capsule

    1x Electret Condenser

  • Polar Pattern

    Cardioid

  • High-Pass Filter

    None

  • Gain Adjustment

    None

  • Windscreen

    Foam (Included)

Performance

Jump to...
  • Frequency Range

    20 Hz to 20 kHz

  • Maximum SPL

    153 dB SPL (Phantom Power)

  • Impedance

    50 Ohms

  • Load Impedance

    1000 Ohms

  • Sensitivity

    3.6 mV/Pa at 1 kHz into 1 Kilohms

  • Dynamic Range

    130 dB A-Weighted

  • Signal-to-Noise Ratio

    63 dB CCIR (Phantom Power)
    71 dB A-Weighted (Phantom Power)

  • Equivalent Noise Level

    31 dB CCIR (Phantom Power)
    23 dB A-Weighted (Phantom Power)

  • THD

    < 0.5% (Phantom Power)

Connectivity

Jump to...
  • Headphone Connector

    None

  • Cable Length

    6' (1.8m)

  • Operating Voltage

    48 V (Phantom Power)

  • Operating Current Consumption

    3.5 mA

General

Jump to...
  • Color

    Black

  • Material

    Titanium

  • Mounting

    Instrument Clamp (Included)

  • Included Case

    Soft Case

  • Included Filters

    None

  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Operating Humidity

    0 to 90%

  • Storage Temperature

    -4 to 158 Degree F (-20 to 70 Degree C)

  • Dimensions

    Capsule (Dia. x L): 0.5 x 0.4" (12 x 11mm)
    Gooseneck Length: 5.9" (150mm)

  • Weight

    Microphone: 0.1 oz (2.3g)

  • UPC Code

    615104357280

About Neumann MCM 114

An exceptional tool for musicians and audio professionals, the MCM 114 Set Brass/Sax/Uni Cardioid Miniature Clip-On Microphone System is a comprehensive solution for capturing the true essence of your instrument's sound. This versatile set is expertly designed for use on a variety of instruments, including the bell of a trumpet, trombone, saxophone, or other horns, as well as percussion instruments and pole stands.

The heart of the system is the KK 14 capsule, which embodies a new benchmark in tonal balance, offering enhanced body in the bass and mid-range frequencies, coupled with pristine transparency in the treble. Neumann's innovative layer-based design approach ensures that each of the capsule's eight critical components is optimized for peak performance. These components are meticulously crafted and assembled by hand, ensuring unparalleled consistency and the signature neutral Neumann sound that professionals have come to trust.

The KK 14 capsule boasts an ultra-low self-noise of 23 dBA and an impressive maximum sound pressure level of 153 dB SPL, ensuring that it captures every nuance of your performance, from the subtlest pianissimo to the most powerful fortissimo. Encased in a durable titanium housing, the capsule is built to withstand the rigors of the road, safeguarding its delicate internal components for long-lasting reliability.

Connectivity is seamless with the MCM System, featuring a range of interchangeable cable options, including 3.5 mm jack, Lemo, 4-pin mini-XLR, and MicroDot connectors, eliminating the need for adapters. For wired applications, the system includes the MCM 100 high-end output stage and a 3.5 mm jack cable, ensuring compatibility with a wide array of audio setups.

Mounting the microphone is quick and effortless thanks to the comprehensive selection of instrument-specific clips included in the set. These mounting options are designed to be gentle on even the most delicate instrument finishes and allow for secure placement in seconds, often with just one hand. The included SH 150 gooseneck holder offers precise adjustability, rotating along one or two axes and locking in 45-degree increments for optimal microphone positioning.

The MC 6 Universal Clamp Clip is a key component of the set, enabling secure attachment of the capsule and gooseneck to various instruments, ensuring that the microphone stays in place during even the most dynamic performances.

This complete set also includes the KC 1 cable brace, AC 31 cable, WS 110 wind shield, and is delivered in a convenient soft case for easy transport and storage.

Elevate your live sound capture with the MCM 114 Set Brass/Sax/Uni Cardioid Miniature Clip-On Microphone System, and experience the new reference in close miking with the quality and precision that Neumann is renowned for.

Neumann MCM 114 Features

  • Elevates electret principle to Neumann sound standards
  • Durability increases ROI up to tenfold
  • A single capsule for loud and soft instruments
  • Works with key transmitter bodypacks

Warranty Information

This product has a limited warranty of 24 months for parts and 24 months for labor.

Key Features

  • Capture pristine sound with this Neumann clip-on microphone, perfect for brass & sax!
  • Achieve exceptional clarity with the MCM 114's wide 20 Hz - 20 kHz frequency response.
  • Enjoy secure instrument attachment using the included universal clamp for worry-free performance.
  • Experience low-noise recording; the Neumann microphone ensures a clean, professional sound.
  • The cardioid polar pattern minimizes unwanted background noise, ideal for live stage use.
  • Durable titanium build ensures this miniature mic stands up to the rigors of frequent use.

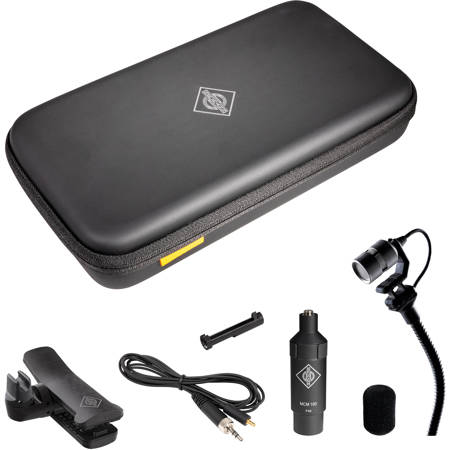

What's in the box:

  • KK 14 Cardioid Capsule
  • MCM 100 XLR Output Stage Module
  • SH 150 5.9" Flexible Gooseneck
  • AC 31 5.9' 3.5mm TRS Cable
  • KC1 Cable Braces for Gooseneck
  • MC 6 MCM Universal Clamp Clip
  • WS 110 Foam Windscreen
  • Soft Case
  • User Manual
  • Neumann 2 Year Limited Warranty
