Nanlite MixPad 27 Specifications

  • Color Temperature

    3200K-5600K

  • CRI

    95

  • TLCI

    93

  • Dimming

    0-100%

  • Cooling System

    Passive

  • Battery Compatibility

    Sony NP-F550 / F750 / F970 series (Not Included)

  • Charge Time

    To Full and 80%: Battery Dependent

  • Runtime

    At 50% Brightness: 1x NP-F550: 1 hours; 1x NP-F750: 2 hours; 1x NP-F970: 3 hours
    At 100% Brightness: 1x NP-F550: 0.6 hours; 1x NP-F750: 1.2 hours; 1x NP-F970: 1.6 hours

  • DMX Control

    No

  • Wireless Control Type

    Wireless Remote / Wi-Fi via adapter

  • Frequency

    2.4GHz

  • Max Power Consumption

    27W

  • Power Source

    12-24V DC

  • Mount

    5/8" Receiver

  • Photometrics

    At 3200K: Soft Light Mode 433 Lux at 1m, Hard Light Mode 1757 Lux at 1m
    Soft Light Mode 102 Lux at 2m, Hard Light Mode 436 Lux at 2m
    Soft Light Mode 48 Lux at 3m, Hard Light Mode 190 Lux at 3m

    At 5600K: Soft Light Mode 445 Lux at 1m, Hard Light Mode 2188 Lux at 1m
    Soft Light Mode 108 Lux at 2m, Hard Light Mode 522 Lux at 2m
    Soft Light Mode 49 Lux at 3m, Hard Light Mode 230 Lux at 3m

  • Photometrics (Cont.)

    Red: 487 Lux at 1m
    122 Lux at 2m
    53 Lux at 3m

    Green: 1184 Lux at 1m
    282 Lux at 2m
    130 Lux at 3m

    Blue: 216 Lux at 1m
    53 Lux at 2m
    24 Lux at 3m

  • Lumen Output

    At 3200K: 2508 Lumens
    At 5600K: 2508 Lumens
    Red: 1283 Lumens
    Green: 3078 Lumens
    Blue: 757 Lumens

  • Special Effects

    Color Cycle, Flashing

  • Dimensions (LxWxH)

    13.7 x 1.6 x 9.4" (34.80 x 4.06 x 23.88cm)

  • Weight

    3.3 lbs (1.50kg)

  • UPC Code

    6949987420354

21 Accessories for Nanlite MixPad 27 Adjustable Bicolor Tunable RGB Dimmable Hard and Soft Light LED Panel

  • All Accessories (21)
  • Batteries & Power Supply (5)
  • Light Stands & Accessories (5)
  • Sandbags (5)
  • Adapters & Mounts (1)
  • Brackets & Mounts (1)
  • Clamps (1)
  • Gaffer Tape (3)

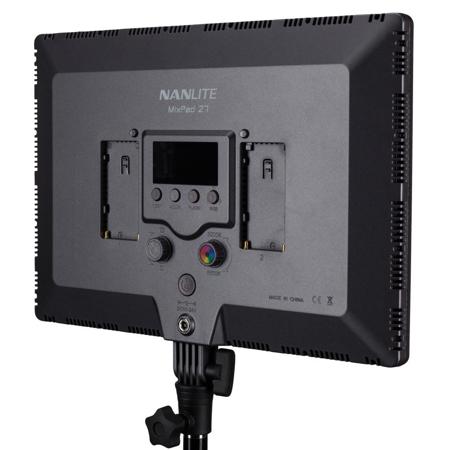

About Nanlite MixPad 27

NanLite MixPad series LED panels incorporate three LED light sources into one compact light fixture. Switch between a "traditional" multi-LED source producing a harder light; surface mount (SMD) LEDs that provide a soft light and Red, Green and Blue LEDs which can be mixed to create more than 360 colors at the touch of a button. Whether you need hard lighting with more throw, diffused lighting for flattering portraits and up close work or colored light to set moods and express emotions you can do it all in one unit with no additional accessories.

Applications include creating a variety of background colors by directing the RGB light onto a plain white wall or canvas, adding interesting hues and highlights to portrait photography and setting mood and tone for music videos, short films or any video production. Supplied with a standard 5/8" receiver mount, the MixPad 27 can be mounted directly on any standard light stand.

With MixPad series LED panels you can quickly achieve beautiful, studio-quality results without adding plastic filters or cloth diffusion. Control knobs enable you to dial in brightness from 0-100%, temperature from warm to cold (3200K-5600K) and hue when in RGB mode. A rear-facing LCD shows the color temperature, brightness level and hue information, allowing you to make precision adjustments and making it easy to recreate your lighting set up in future if you need to. The NanLite MixPad 27 is ideal for use in the studio or on location. Choose from multiple power options including the ac adapter or compatible Sony NP-F style batteries (sold separately) and it also features a built in battery level indicator.

Studio Quality Lighting
NanLite RGB series LED panels create bright, color accurate, studio lighting with minimal set up and zero complications. Perfect for live streaming, vlogging, photography lighting, video lighting, photo booths and more.

Three LED Light Sources In One Compact Panel
Switch between a "traditional" multi LED panel for hard light, a diffuse SMD LED panel for soft light and a Tunable RGB panel for colorful creative effects at the push of a button.

Full Creative Control
Easily achieve beautiful results without adding plastic filters or cloth diffusion. The MixPad 27's control knobs enable you to dial in brightness from 0-100%, temperature from warm to cold (3200K-5600K) or hue when in RGB mode.

Power Anywhere
Perfect for use in the studio or on location, the MixPad 27 can run off either the included AC adapter or 2x compatible Sony NP-F style batteries (Not Included) so you can operate in any location regardless power availability.

What's in the box:

  • NanLite MixPad 27 Adjustable Bicolor Tunable RGB Dimmable Hard and Soft Light LED Panel
  • AC Adapter with Light Stand Mount
  • NanLite 1 Year Limited Warranty
