NanLite MixPanel + RGB LED Panel Specifications

Light Fixture

Light Fixture

Jump to...
  • Number of Heads/Lights

    1

  • Fixture Type

    Light Panel

  • Photometrics

    3200K
    1145fc / 12,330Lux at 3.3 / 1 m
    144fc / 1557Lux at 9.8 / 3m
    5600K
    1289fc / 13,880Lux at 3.3 / 1 m
    162fc / 1746Lux at 9.8 / 3m

  • Color Accuracy Standard

    CRI 98, CRI 95

  • Color Temperature

    RGBDT

  • Color Temperature Range

    2700-7500K

  • Display

    Yes

  • Built-In Flash

    No

  • Cooling System

    Fan

  • Dimming

    Built-In Dimmer- 0 to 100%

Connectivity

Jump to...
  • Mobile App Compatible

    Yes, Adapter Required (Not Included): Android & iOS

Battery

Jump to...
  • Battery Connection

    V Mount

  • Battery

    1x Rechargeable, 26 VDC (Not Included)

  • Power Source

    AC/DC

  • Power Consumption

    150 W

  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz

  • DC Input Power

    24 VDC at 7.5 A

Mounting

Jump to...
  • Fixture Mount

    1x 5/8" Receiver (Via Yoke Mount)

  • Umbrella Mount

    No

Physical Details

Jump to...
  • Panel Size

    16" x 19"

  • Dimensions

    19 x 16 x 3" / 48.3 x 40.6 x 7.6cm (Fixture)

  • Weight

    9lb / 4.08kg (Fixture with Yoke)

  • UPC Code

    6949987420378

25 Accessories for NanLite MixPanel 150 Bicolor + RGB Hard and Soft Light LED Panel

  • All Accessories (25)
  • Transmitters & Receivers (1)
  • Batteries & Power Supply (9)
  • Light Stands & Accessories (7)
  • Cables & Adapters (2)
  • Brackets & Mounts (2)
  • Clamps (1)
  • Gaffer Tape (3)

About NanLite MixPanel + RGB LED Panel

FEATURED REVIEWS

Need it

By BENJAMIN F.

Great light

nanlite mixpanel 60 150

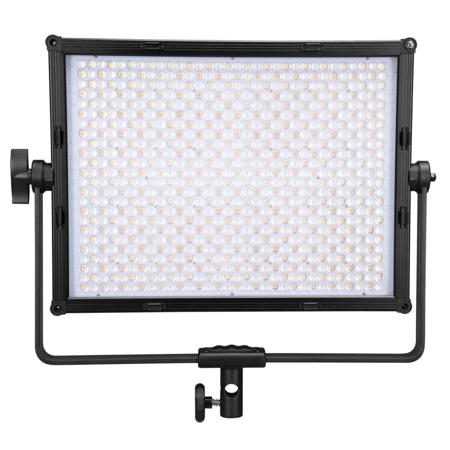

The NanLite MixPanel Series

The Nanlite MixPanel Series uniquely combines three LED light sources into one compact housing, giving you the ability to switch between hard light, soft light, and colored light at the touch of a button. Coupled with ultra-bright light output, 0-100% dimming, a CRI of 98, a TLCI of 95, green/magenta adjustment, 43 gel presets in two light sources (3200K & 5600K), and 9 special effects; MixPanels are some of the most versatile RGBWW LED panels on the market.

Three LED Light Sources in One Compact Panel - NanLite MixPanels are capable of switching between a "traditional" multi-LED panel for hard light, a diffuse SMD LED panel for soft light and a Tunable RGB panel for colorful, creative effects at the push of a button.

Now, whether you need hard lighting with more throw, diffused lighting for flattering portraits and up-close work, or colored light to set moods and express emotions, you can do it all in one unit with no additional accessories.

Ultra-Bright Output

When using the hard light fixture in normal mode, the MixPanel 60 emits an impressive 4980 Lux@1m 5600K. When shifted into boost mode the output climbs even higher to 6600 Lux at 1m. Plus with dimming from 100% down to 1%, you can quickly adapt the MixPanel 60 to any scene without adding ND gel or diffusion.

Mixpanel

Intuitive User Interface

If there is one thing an RGBWW LED panel can not be it's cumbersome to use on set. That is why the MixPanel 60's operating system has been developed from the ground up to be efficient and intuitive to use. What's more, you can save your settings as presets to make your lighting consistent and repeatable.

mixpanel

Gel Emulation and Practical Effects

The MixPanel's gel emulation mode provides a selection of 43 gel presets in two light sources (3200K & 5600K) encompassing 5x CTOx 5x CTB, and 33x Calcolor. Also, with 9 pre-programmed and adjustable special effects, the MixPanel makes it possible to imitate lighting scenarios that can otherwise be tricky to recreate such as hue loop, CCT loop, flash, pulse, storm, siren, TV screen, paparazzi, and candle/fire.

nanlite mixpanel

Color Perfection

The brightness of a light is important, but without color accuracy, a ton of time and money will be lost in post-production. The MixPanel 60 features a CRI of 98, a TLCI of 95 plus Green/Magenta adjustment in CCT mode, meaning you can shoot with confidence knowing the color reproduction will be precise.

mixpanel

Power Anywhere

Optimized for use in the studio or on location, the MixPanel 60 can run off either the included AC adapter or 14.8V V-Mount batteries (Not Included), so you can operate in any location regardless of power availability.

mixpanel

With the Nanlite MixPanel 150 Bicolor + RGB Hard and Soft Light LED Panel, you gain access to a versatile lighting solution that seamlessly combines three distinct LED light sources into a single, compact unit. This innovative design allows you to effortlessly transition between hard light, soft light, and vibrant colored light at a simple touch, offering unparalleled flexibility for your photography and videography needs.

This high-quality LED panel is renowned for its ultra-bright light output, featuring an impressive 11320 Lux@1m 5600K in normal mode, and an even more powerful 14950 Lux at 1m in boost mode. With a dimming range from 100% down to a mere 1%, you can swiftly adapt the MixPanel 150 to any scene without the need for additional ND gel or diffusion.

The MixPanel 150 is not just about power, but also precision. It boasts a high color rendering index (CRI) of 98 and a Television Lighting Consistency Index (TLCI) of 95, ensuring accurate color reproduction in every shot. The panel also includes green/magenta adjustment in CCT mode, allowing you to fine-tune your lighting to perfection.

Ease of use is a key feature of the MixPanel 150. Its intuitive user interface has been meticulously designed for efficiency and simplicity, enabling you to save your settings as presets for consistent, repeatable lighting.

The MixPanel 150 also offers a unique gel emulation mode, providing a selection of 43 gel presets in two light sources (3200K & 5600K), including 5x CTO, 5x CTB, and 33x Calcolor. With nine pre-programmed and adjustable special effects, you can effortlessly recreate complex lighting scenarios such as hue loop, CCT loop, flash, pulse, storm, siren, TV screen, paparazzi, and candle/fire.

Designed for both studio and on-location use, the MixPanel 150 can be powered by the included AC adapter or 26V V-Mount batteries (not included), ensuring reliable performance wherever your work takes you. Experience the bright, durable, and reliable lighting solution that is the Nanlite MixPanel 150 Bicolor + RGB Hard and Soft Light LED Panel.

NanLite MixPanel + RGB LED Panel Features

  • Three LED Light Sources in One Compact Panel
  • In hard light boost mode the MixPanel 150 emits an impressive 14950 Lux at 1m 5600K
  • Features a CRI of 98, a TLCI of 95 plus Green/Magenta adjustment in CCT mode
  • MixPanel 150's operating system has been developed from the ground up to be efficient and intuitive to use
  • Provides a selection of 43 gel presets in two light sources (3200K & 5600K) and 9 special effects

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Achieve stunning color accuracy with CRI 98, ensuring your photos and videos look professional.
  • Enjoy versatile lighting with a wide 2700-7500K color temperature range for any creative project.
  • This 150W LED panel delivers impressive brightness, up to 13,880Lux at 3.3ft, for perfect illumination.
  • Compact and durable design at 9lb, this light panel is perfect for studio or on-location shoots.
  • Customize your lighting setup easily with built-in dimming from 0-100% for precise control.
  • Use the V-Mount battery option for portable power, making it ideal for remote photography sessions.

What's in the box:

  • NanLite MixPanel 150 Bicolor + RGB Hard and Soft Light LED Panel
  • Metal Barn Doors
  • Power Adapter
  • Carry Bag
  • NanLite 2 Year Limited Warranty (Extended 1 Year Warranty with Online Registration)
