What lighting modes does the MixPad II 27C RGBWW Hard and Soft Light LED Panel offer?

The MixPad II 27C offers three lighting modes: a traditional multi-LED array for hard light, a diffuse SMD LED panel for soft light, and a tunable RGB array for colorful effects. You can switch between these modes with just a push of a button.

What is the color temperature range of the MixPad II 27C?

The MixPad II 27C has an adjustable color temperature range of 2700K-6500K. It also offers green to magenta shift, providing 360 degrees of hue control with 100 levels of color saturation adjustment.

What is the power source for the MixPad II 27C?

The MixPad II 27C can be powered by an AC power adapter, 2x Sony NP-F style batteries, or a DC through a D-tap cable. Please note that the batteries and D-tap cable are sold separately.

What is the weight and size of the MixPad II 27C?

The MixPad II 27C is a lightweight and compact fixture, weighing just under 3lbs and measuring 13.7 x 2.2 x 12.7 inches. Its slim design makes it ideal for on-location shoots, studio work, or even desktop video conferencing.

What is the CRI and TLCI of the MixPad II 27C?

The MixPad II 27C has an average Color Rendering Index (CRI) of 98 and a Television Lighting Consistency Index (TLCI) of 95, ensuring high-quality, consistent lighting that enhances the natural colors in your photos and videos.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Nanlite MixPad II 27C Specifications

  • Color Temp

    2700-6500K

  • CRI

    Average 95

  • TLCI

    93
    Average 98

  • Dimming

    0-100%

  • Lumen Output 5600K

    2795 Lumen
    Lux @ 1m 5600K: Hard Light Mode - 2898 Lux /Soft Light Mode - 500 Lux
    Lux @ 1m 3200K: Hard Light Mode - 2898 Lux/Soft Light Mode - 450 Lux

  • Power Source

    15V/2.4A DC

  • Max Power Draw

    36w

  • Battery

    Sony NP-F550 / F970 series (Not Included)

  • Battery Run Time

    2x NP-F550: 1.5 hours / 2x NP-F970: 2 hours 48 min at 100% Brightness (approx)

  • Mount

    5/8" Receiver

  • Battery Info

    Optional, not included

  • Battery Material

    -

  • Battery Quantity

    1

  • Battery Type

    NP-F550

  • Dimensions (L x W x H)

    13.7 x 2.2 x 12.7" (34.8 x 5.5 x 32cm)

  • Weight

    3 lbs (1.3kg)

  • UPC Code

    6949987422877

15 Accessories for Nanlite MixPad II 27C RGBWW Hard and Soft Light LED Panel

  • All Accessories (15)
  • Batteries & Power Supply (12)
  • Brackets & Mounts (2)
  • Clamps (1)

About Nanlite MixPad II 27C

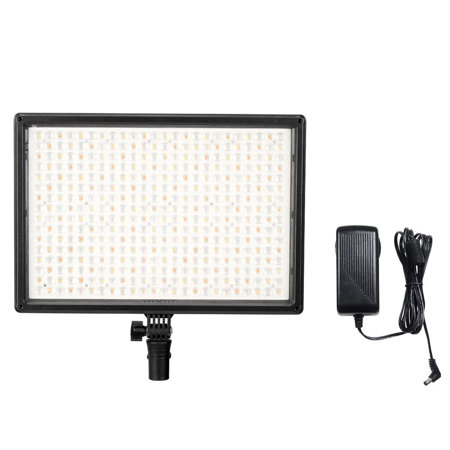

Explore the exceptional capabilities of the NanLite MixPad II 27C RGBWW Hard and Soft Light LED Panel, a compact yet powerful lighting solution for photographers and videographers. This lightweight, 13.7 x 2.2 x 12.7-inch fixture delivers a remarkably bright output, offering a unique versatility with its ability to switch between a traditional multi-LED array, a diffuse SMD LED panel, and a tunable RGB array with just a push of a button.

The MixPad II 27C is designed to provide a wide range of lighting options, featuring 0 to 100% dimming and an impressive output of 2898 Lux at 1m distance in Hard Light Mode. With an adjustable color temperature range of 2700K-6500K, this LED panel allows for precise color tuning to match your subject's skin tone or the ambient light. It also offers green to magenta shift, providing 360 degrees of hue control with 100 levels of color saturation adjustment, ensuring the perfect light for every shot.

Boasting an average Color Rendering Index (CRI) of 98 and a Television Lighting Consistency Index (TLCI) of 95, the MixPad II 27C guarantees high-quality, consistent lighting, enhancing the natural colors in your photos and videos.

This LED panel is not only versatile but also portable. Weighing just under 3lbs and with a width of 2.2 inches, it maintains a minimal footprint, making it an ideal choice for on-location shoots, studio work, or even desktop video conferencing.

The MixPad II 27C offers multiple power options for added convenience. It can be powered by the included AC power adapter, 2x Sony NP-F style batteries (sold separately), or a DC through a D-tap cable (sold separately), making it a reliable and versatile lighting tool for all your photography and videography needs.

Nanlite MixPad II 27C Features

  • Get Studio Quality Lighting
  • And Powerful Output
  • Plus the Versatility of Three Different LED Light Sources
  • From An Exceptionally Slender Panel
  • With Multiple Power Options

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Switchable lighting modes: traditional multi-LED, diffuse SMD, and tunable RGB array
  • Wide color temperature range: 2700K-6500K with hue and saturation control
  • High CRI and TLCI: average of 98 and 95 respectively for true-to-life colors
  • Dimmable LED panel: 0 to 100% dimming capability for precise lighting control
  • Lightweight and slim design: Ideal for on-the-go photographers and videographers

What's in the box:

  • Nanlite MixPad II 27C RGBWW Hard and Soft Light LED Panel
  • Power Adapter
  • NanLite 2 Year Limited Warranty (Extended 1 Year Warranty with Online Registration)
