New Arrival

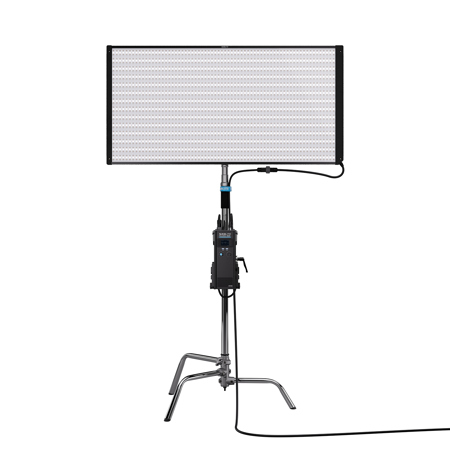

NanLite PavoSlim 360C 4x2' RGBWW LED Panel Light with CRMX

SKU: NNPS360C MFR: PS360C
Earn VIP Reward Points

Key Features

  • Experience brilliant illumination with 27,060 Lux at 3.3', perfect for professional video production.
  • Achieve stunningly accurate colors with a high CRI of 96 and TLCI of 97, essential for photography.
  • Enjoy versatile lighting control from 2400K to 12,000K, adapting to any creative vision.
  • Effortlessly adjust brightness from 0-100% via app, DMX, or the included controller for ideal dimming.
  • Power your shoots anywhere with flexible AC power or dual V-mount battery options for portability.
  • The slim, durable design and passive cooling ensure reliable performance for all your projects.
See More Product Details
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

NanLite PavoSlim 360C Specifications

Light Fixture

Light Fixture

Jump to...
  • Number of Heads/Lights

    1x

  • Fixture Type

    Light Panel

  • Photometrics

    2700K:
    2201 fc (23,700 Lux at 3.3'
    374 fc (4030 Lux at 9.8'
    146 fc (1579 Lux at 16.4'

    3200K:
    2345 fc (25,250 Lux at 3.3'
    397 fc (4280 Lux at 9.8'
    155 fc (1673 Lux at 16.4'

    5600K:
    2513 fc (27,060 Lux at 3.3'
    426 fc (4590 Lux at 9.8'
    166 fc (1795 Lux at 16.4'

    6500K:
    2484 fc (26,740 Lux at 3.3'
    421 fc (4540 Lux at 9.8'
    164 fc (1772 Lux at 16.4'

  • Color Accuracy Standard

    CRI 96
    TLCI 97
    SSI 84 at 3200K
    SSI 74 at 5600K
    TM-30 Rf 94
    TM-30 Rg 100

  • Color Temperature

    RGBWW

  • Color Temperature Range

    2400 to 12,000K

  • Display

    Yes

  • Beam Angle

    60 Degree

  • Built-In Flash

    No

  • Cooling System

    Passive

  • Dimming

    App-Controlled / Controller Included / DMX / RDM: 0 to 100%

Physical Details

Jump to...
  • Color

    Black

  • Panel Size

    47.36 x 23.87"

  • Dimensions

    Fixture: 47.36 x 23.87 x 0.77" (120.3 x 60.63 x 1.96cm)
    Control Unit: 11.93 x 6.01 x 4.39" (30.3 x 15.27 x 11.15cm)

  • Weight

    Fixture: 12.6 lbs (5.7kg)
    Control Unit: 7.23 lbs (3.28kg)

Connectivity

Jump to...
  • Remote Control Type

    Bluetooth (Nanlink)
    Radio/RF (Remote Not Included)
    CRMX (LumenRadio)

  • Mobile App Compatible

    Yes: Android & iOS
    App Name: Nanlink
    Functionality: Adjust Settings, Remote Control, Setup

Battery

Jump to...
  • Battery Connection

    2x V-Mount (Built-In)

  • Battery

    Lithium ion

  • Power Source

    AC Power (Cable Included)
    Battery (Not Included)

  • Power Consumption

    370W

  • AC Input Power

    48 VDC
    100 to 240 VAC, 50 / 60 Hz

  • DC Input Power

    14.4 to 26 VDC

Mounting

Jump to...
  • Fixture Mount

    1x 5/8" Receiver

  • Umbrella Mount

    No

  • Accessory Mount

    Proprietary

  • UPC Code

    6949987427735

Models
<b>New Arrival</b> - NanLite PavoSlim 360C 4x2' RGBWW LED Panel Light with CRMX
$2,490.00

New Item

Expecting delivery from Manufacturer. Order now, your card will not be charged until it is ready to ship

NanLite Forza 720B 800W 2700-6500K Bi-Color LED Monolight with Rolling Case
$1,519.00

$1,899.00

Save:$380.00 (20%)

Temporarily On Backorder

Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.

NanLite Forza 720 800W 5600K LED Monolight with Rolling Case
$1,699.00

$1,953.85

Save:$254.85 (13%)

Special Order

Generally ships in 7-14 days, subject to availability

Watts-800W800W
Kit Style1 Light Kit1 Light Kit1 Light Kit
Power SourceAC/DCAC/DCAC/DC
Color TemperatureRGBWWBi-ColorDaylight
Battery ConnectionV Mount--
Color Temperature Range2400-12000K2700-6500K-
Panel Size24" x 48"--

About NanLite PavoSlim 360C

Large yet slim
A full 4x2 light source with a durable body that's only 0.77" (1.96cm) thick, and the panel weighs just 12.63 lb (5.73kg)

Bright & efficient
Provides 27060 lux (2514 fc) @1m 5600K with 370 watts of output, runs cool with efficient heat dissipation via its magnesium alloy body and fanless light head

Lightning fast setup
Fully sets up and breaks down in one minute for the fastest possible workflow with the pop-up softbox and elastic grid

Accuracy & control
High SSI ratings, a wide 2400K-12000K CCT with +/-150 G/M adjustment, full-color RGBWW, 460 LEE and Rosco gels, and full control with LumenRadio CRMX, DMX/RDM, 2.4G, Bluetooth, and onboard

PavoSlim 360C is a large 4x2 LED panel light that combines a slim, lightweight design with a fast setup and breakdown workflow. It's less than an inch thick yet provides a significant amount of output, a wide CCT range with G/M adjustment, full-color, AC or battery power, and a comprehensive set of control options that includes CRMX.

Easy to Install, Conceal & Move
At 4 feet long and 2 feet wide, PavoSilm 360C provides a large source that's ideal for a key, overhead, or ambient lighting with even, soft-light coverage. However, its size and power come with an unusually fast workflow. A single person can set it up or tear it down in no time. Its ultra-thin body allows it to be easily hidden on set, and if packed up or on a stand, it's light enough to be easily moved.

Magnesium Alloy Construction
To deliver a superior level of durability, strength, and reduced weight, PavoSlim 360C features a magnesium alloy body. A large multi-row heatsink on the back of the panel delivers enhanced structural rigidity, efficient cooling, and silent, fanless operation, no matter how long the shoot.

Designed to Save Time
Every detail of PavoSlim 360C is made for ease of use and lightning-fast workflows: Snap and lock mounts quickly slide into place, a quick-release clamp securely speeds up Control Unit mounting and placement, a pop-up softbox can remain attached in the case in be deployed in seconds, and an eggcrate grid slips on quickly with elastics.

Exceptional Accuracy
Nanlite's advanced RGBWW full-color mixing technology provides a wide CCT of 2400K-12000K with +/-150 G/M adjustment, SSI ratings of 84 (3200K) and 74 (5600K), CRI of average 96 and TLCI of average 97, TM-30 Rf of average 94 and TM-30 Rg of average 100.

Expand to 4x4 with Coupler
A dual-panel coupler is available as a separate accessory that joins two PavoSlim 360C's together as a single 4x4 source. The model name of the coupler is AS-DCP-PS360. It securely attaches to the mounting points on the back of the PavoSlim 360C.

Modes & Control
In addition to color temperature you have HSI mode for adjusting hue, saturation, and intensity, RGBW for individual control of red, green, and blue, Gel mode with 460 presets from LEE and Rosco, and 15 effects. It's also fully outfitted for control with LumenRadio CRMX, DMX/RDM, 2.4G for the optional WS-RC-C2 handheld and WS-TB-1 Transmitter Box, Bluetooth for the Nanlink mobile app, and intuitive built-in controls and screen.

Made by Nanlite
The PavoSlim concept and form factor was pioneered by the teams at Nanlite. We build and thoroughly test every light that ships in our own factory. This gives us the best possible quality control, and allows us to follow strict environmentally friendly manufacturing and business practices. Similar brands outsource their manufacturing to third-party factories with no commitment to the environment.

NanLite PavoSlim 360C Features

  • Slim 4x2 LED panel, less than 1" thick, weighs only 12.6 lb
  • 27060 lux @1m with 370W output, fanless magnesium alloy cooling
  • Sets up or breaks down in one minute with pop-up softbox and grid
  • Wide 2400K-12000K CCT, +/-150 G/M, RGBWW, gels, and CRMX/DMX/Bluetooth control
  • Expandable to 4x4 source with dual-panel coupler accessory

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience brilliant illumination with 27,060 Lux at 3.3', perfect for professional video production.
  • Achieve stunningly accurate colors with a high CRI of 96 and TLCI of 97, essential for photography.
  • Enjoy versatile lighting control from 2400K to 12,000K, adapting to any creative vision.
  • Effortlessly adjust brightness from 0-100% via app, DMX, or the included controller for ideal dimming.
  • Power your shoots anywhere with flexible AC power or dual V-mount battery options for portability.
  • The slim, durable design and passive cooling ensure reliable performance for all your projects.

What's in the box:

  • NanLite PavoSlim 360C 4x2' 370W RGBWW LED Panel Light with CRMX
  • Control Unit with Dual V-Mount Battery Plates
  • Universal Holder with 5/8" Baby Pin
  • Quick-Release Clamp
  • 24.6' DC Connection Cable
  • 14.7' AC Power Cable
  • Pop-Up Softbox
  • 2.5 Stop Lite Diffuser
  • 1.5 Stop Standard Diffuser
  • Eggcrate Grid
  • Padded Carrying Bag
  • User Manual
  • NanLite 2 Year Limited Warranty (Extended 1 Year Warranty with Registration)
