NanLite PavoTube II 60X Specifications

  • CRI

    Average 97

  • TLCI

    Average 98

  • Color Temperature (Kelvin)

    2700K-12000K

  • Lumen Output 3200K

    0 Lumens

  • Lumen Output 5600K

    0 Lumens

  • Dimming

    0-100%

  • DMX Control

    Yes

  • Compatible Wifi Adapter

    Nanlink WS-TB-1 Transmitter box

  • Compatible Remote

    WS-RC-C2 remote control

  • Wireless Control Type

    2.4GHz, Bluetooth, DMX/RDM

  • Frequency

    2.4Ghz

  • Accessory Port(s)

    No

  • Depth Rating

    IP20

  • Mount

    T12, 3x 1/4 20"

  • Operating Temperature

    104 Degree F (40 Degree C)

  • Cooling System

    No

  • Power Source

    DC15V/6.5A

  • Max Power Consumption

    106W

  • Amp-Hours

    8800mAh

  • Includes Rechargeable Battery

    Yes

  • Number of Battery Cells

    20

  • Battery Capacity (Wh)

    162.8

  • Charger

    AC Adapter

  • Battery Maximum Output Voltage

    18.5V

  • Battery Required

    Yes

  • Charge Time to Full

    About 5 hours 30 mins

  • Runtime @ 100% Brightness

    1h 57 mins

  • Runtime @ 50% Brightness

    4h

  • Runtime @ 10% Brightness

    18h

  • Diameter

    1.7" (4.3cm)

  • Electrical Load Capacity

    48W

  • Special Effects

    15 Built-In Practical Effects: Hue Loop/ CCT Loop/ Int Loop/ CCT Flash/ Hue Flash/ CCT Pulse/ Hue Pulse/ Storm/ Police Car/ Tv/ Paparazzi/ Candle/Fire/ Disco/ Bad Bulb/ Firework/ Explosion And Welding 10 Pixel Effects: Hue Loop/ CCT Loop/ Int Loop/ Multi-Color/ Gradient/ Scrolling/ Marching/ Flame/ Rainbow/ Driving

  • Lux @ 0.5m

    2700K: 2114 lux / 196.4 fc
    3200K: 2176 lux / 202.1 fc
    5600K: 2324 lux / 215.9 fc
    6500K: 2405 lux / 223.4 fc
    7500K: 2461 lux / 228.6 fc
    Red: 783 lux / 72.7 fc
    Green: 1831 lux / 170.1 fc
    Blue: 337 lux / 31.3 fc

  • Lux @ 1m

    2700K: 900 lux / 83.6 fc
    3200K: 928 lux / 86.2 fc
    5600K: 991 lux / 92 fc
    6500K: 1024 lux / 95.1 fc
    7500K: 1047 lux / 97.2 fc
    10000K: 966 lux / 89.7 fc
    12000K: 934 lux / 86.7 fc
    Red: 332 lux / 30.8 fc
    Green: 783 lux / 72.7 fc
    Blue: 143 lux / 13.2 fc

  • Lux @ 2m

    2700K: 336 lux / 31.2 fc
    3200K: 345 lux / 32 fc
    5600K: 369 lux / 34.2 fc
    6500K: 380 lux / 35.3 fc
    7500K: 389 lux / 36.1 fc
    10000K: 358 lux / 33.2 fc
    12000K: 347 lux / 32.2 fc
    Red: 131 lux / 12.1 fc
    Green: 295 lux / 27.4 fc
    Blue: 55 lux / 5.1 fc

  • Lux @ 3m

    2700K: 180 lux / 16.7 fc
    3200K: 184 lux / 17.1 fc
    5600K: 194 lux / 18 fc
    6500K: 201 lux / 18.6 fc
    7500K: 206 lux / 19.1 fc
    10000K: 191 lux / 17.7 fc
    12000K: 186 lux / 17.2 fc
    Red: 68 lux / 6.3 fc
    Green: 153 lux / 14.2 fc
    Blue: 28 lux / 2.6 fc

  • Battery Info

    Required, included

  • Battery Material

    Lithium-ion

  • Battery Type

    Non-universal

  • Battery Quantity

    4

  • Dimensions (H x L x W)

    3.9 x 99.2 x 7.1" (9.9 x 251.9 x 18cm)

  • UPC Code

    6949987424772

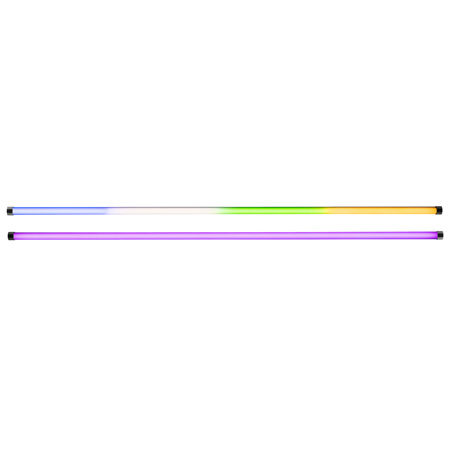

About NanLite PavoTube II 60X

The Nanlite PavoTube II RGBWW LED Pixel Tubes are the next evolution of Nanlite's signature light fixtures. These second-gen LED Tubes have been refined based on feedback from creators around the globe with features including pixel-based special effects, brighter output, more uniform diffusion, robust metal housings, DMX compatibility, and wireless 2.4G and Bluetooth control with the free NANLINK mobile app for iOS and Android.

Get Unique, Studio Quality Lighting Anywhere
With an expanded and more precise color temperature range from 2700K-12000K with green to magenta adjustment, an average CRI of 97, an average TLCI of 98, plus full-spectrum RGB hue and saturation control, the PavoTube II 60X 8' RGBWW LED Pixel Tube packs studio-quality lighting into a hardy, portable package.

From a Next-Generation LED Tube
Nanlite drew on the feedback from PavoTube owners across the world to evolve their LED Tube design. Enhancements include brighter output from a larger illumination area with more uniform diffusion, a pixel density of 32 to create eye-catching animated effects, an upgraded control panel with locking buttons, DMX compatibility, and full wireless control through 2.4G and Bluetooth with the free NANLINK mobile app for iOS and Android.

With No Cords Needed
Powered by an internal 8800mAh Li-ion battery, the PavoTube II 60X can run for 1 hour and 57 minutes at full brightness completely untethered. Battery recharge is achieved with the included AC adapter, which can also keep the PavoTube II 60X powered on during longer shoots.

Pixel Based Special Effects
In addition to 15 adjustable practical special effects, PavoTube II 60X features 10 new pixel-based effects expanding the creative possibilities further than ever before. Pixel-based effects include Hue Loop, CCT Loop, INT Loop, Multi-color, Gradient, Scrolling, Marching, Flame, Rainbow, and Driving. Practical effects include Hue Loop, CCT Loop, INT Loop, CCT Flash, HUE Flash, CCT Pulse, Hue Pulse, Storm, Police Car, TV, Paparazzi, Candle/Fire, Disco, Bad Bulb, Firework, Explosion, and Welding.

And A Robust Metal Housing
The PavoTube II 60X's upgraded metal housing makes worrying about an accidental drop or risky light placements a thing of the past. Plus, three incorporated 1/4-20" receivers greatly expand mounting options.

NanLite PavoTube II 60X Features

  • Transport Long Tube Lights - This carrying bag was designed to hold up to 4 8' long PavoTube II 60X LED Pixel Tubes, including the AC adapters and basic accessories. It's also compatible with other tube lights
  • Handle & Padding - Features a centered handle and light padding throughout with thicker padding at the ends
  • Designed For Production - Inside the bag each tube has a dedicatred zippered chamber. The bag was designed to be unzipped completely and lay flat, making it easier to access what you need, ultimately saving you time on set

Key Features

  • Transport Long Tube Lights - This carrying bag was designed to hold up to 4 8' long PavoTube II 60X LED Pixel Tubes
  • Handle & Padding - Features a centered handle and light padding throughout with thicker padding at the ends
  • Designed For Production - Inside the bag each tube has a dedicatred zippered chamber

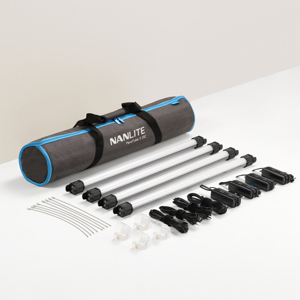

What's in the box:

  • 4x NanLite PavoTube II 60X 8' 106W RGBWW LED Pixel Tube Lights
  • 4x 15V/6.5A Power Adapters
  • 4x 9.8' Power Cables
  • 4x Elastic Safety Straps for Power Adapter
  • 8x Transparent Mounting Clips with 1/4-20 Receivers (HD-T12-1-C)
  • 8x ASEB Eyebolts
  • Carrying Bag (CC-S-PTII60X)
  • User Manual
  • NanLite 2 Year Limited Warranty (Extended 1 Year Warranty with Registration)
