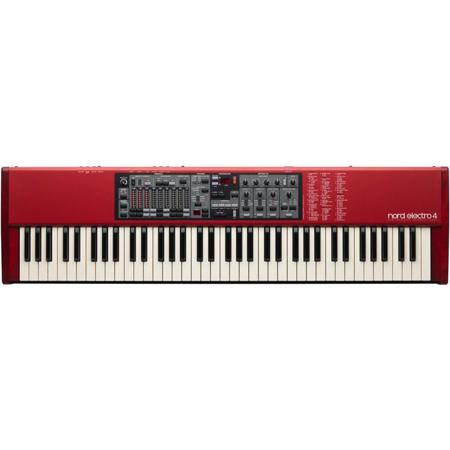

NORD Electro 4 SW73 73-Key (6 Octaves/F-F) Velocity Sensitive Semi Weighted Waterfall Keyboard with Digital LED Drawbars

Organ Section
The NORD Electro 4 features the B3 tone wheel organ engine from our flagship organ NORD C2D and includes a redesigned Key Click simulation as well as the Rotary Speaker simulation of a vintage 122 unit with a great new overdrive. The percussion model has been improved to offer increased control over the percussion levels when playing near-legato. Naturally, the vibrato and chorus scanners have been carefully modeled to be just as alive as the tone wheels.

• Three classic organ models: B3, Vox Continental and Farfisa with full polyphony
• B3 Tone Wheel Organ engine from NORD C2D Combo Organ
• Two complete organ registrations for every program
• Percussion with 2nd, 3rd, normal/soft, fast/slow for the B3 model
• User adjustable percussion levels, percussion decays and key click level
• Vibrato / Chorus Control with separate functionality for each model (the classic C1, C2, C3, V1, V2, V3 options for the B3, Vibrato for the Farfisa)
• 4 Tonewheel modes: select the level of "vintage" desired
• MIDI Split: By connecting an extra MIDI keyboard the NORD Electro 4 can be used as a dual manual (Lower/Upper) organ with different drawbar settings for each manual
• NORD Electro 4 SW73: Digital LED drawbars

The Farfisa and Vox models are just as impressive as the B3, simulating the behavior and unique response of the original instruments. The Farfisa Compact Deluxe, considered by many to be the mother of transistor organs, involves routing matrixes and complex filter combinations that offer a tailored sound with massive energy and high-end. The Vox Continental's brute design brings you a more hollow tone, but with a very intense character. Both these transistor organs have their own unique, irreplaceable personalities. Combine them with any of the Amp simulations, add some distortion, adjust the EQ and they will definitely get you through any organ gig with flying colors.

The NORD Electro 4 SW73 organ section is identical in features but sports our Digital LED Drawbars. The organ can be split, for compact dual manual action and its even possible to assign the lower manual to a second MIDI keyboard. Inputs for a Swell pedal and Rotary Speaker control are also available.

Piano Section
The NORD Electro 4 comes loaded with a selection of amazing sounds from the NORD Piano Library - our specialized library for Grand, Upright and Electrical Pianos, Clavinet and Harpsichords. All the sounds have been recorded using our state-of-the-art sampling techniques to capture the extraordinary nuances and unique characters of the source instruments and covers everything from brilliant, factory new Grand Pianos to detuned upright bar pianos with tons of charm.

The entire NORD Piano Library is included on DVDs and new additions can be downloaded free on the NORD Piano Library page. Replacing the sounds is simply a matter of dragging and dropping files in the NORD Sound Manager for Mac and Windows. The Long Release feature is suitable for legato playing styles and the String Resonance (Gen 1) feature on Grand and Upright Pianos can be turned off when desired.

NORD Electro 4 SW73 feature 380 MB of memory for the NORD Piano Library. NORD Electro 4 SW73 also feature 4 Dynamic Response Curves for customizing the keyboard response to your playing style.

NORD Sample Library And Sample Editor
The NORD Electro 4 series support the NORD Sample Library, giving you access to our exclusively licensed Mellotron and Chamberlin sounds and a wide selection of quality sounds from leading sample producers. See the NORD Sample Library section to learn more and listen to the more than 1000 the sounds currently available! The NORD Sample library is updated on a regular basis and all new additions can be downloaded for free!

The included NORD Sample Editor makes it possible to add any sound you want to your Electro 4. The Sample Editor can use audio files in the .wav format and has great tools to assist you in getting the results you want. Mapping several samples across the keyboard or creating seamless loops has never been easier. The Electro 4 SW73 feature 128 MB of memory for the NORD Sample Library.

Piano and Sample Library Section
• 380 MB memory dedicated to the NORD Piano Library
• 128 MB memory dedicated to the NORD Sample Library
• The Piano Section has 5 categories - Grand, Upright, Epiano 1 (tine), Epiano 2 (reed) & Clav/Harpsichord. Each category can contain several different models.
• All pianos and samples can be replaced using the NORD Sound Manager application
• String Resonance-control (Gen 1)
• Long Release
• The Sample Library section can contain up to 50 samples from the NORD Sample Library
• Stereo pianos and samples can be played back in mono
• 40-60 Voices polyphony for Piano Library sounds. 15 Voices for Sample Library sounds.

Effect Section
The NORD Electro 4 Effect section features great, tweakable effects for instantly adding some dirt, glimmer or atmosphere to your sound. The Amp/Speaker simulation now features the same Vintage 122 Rotary Speaker simulations as found in our flagship organ, NORD C2D. Also, there's a flexible Stereo Delay effect with Tap-Tempo and Ping-Pong mode.

• Effect 1 - pan, tremolo, auto-wah, pedal-wah and ring modulator
• Three selectable depths for the pan and tremolo, rate controlled with the Effect 1 Rate knob
• Control pedal assigned to pedal-wah and ring modulator depth
• Effect 2 - phaser, flanger and chorus
• Three selectable depths, rate controlled with the Effect 2 Rate knob
• Comp/Amp - three amp/speaker simulations, compressor and rotary speaker
• Drive/Compression amount controlled with the Drive knob
• Rotary speed controls - Slow, Fast and Stopped
• Close or Normal microphone placement for 122 Rotary Speaker simulation
• User adjustable rotary treble and bass rotor speeds and acceleration rates
• Three band EQ, with sweepable mid. +/- 15 dB gain/attenuation
• Delay Effect - Rate, Amount, Tap-tempo and Stereo Ping Pong
• Reverb with five algorithms - Room, Stage Soft, Stage, Hall, Hall Soft
• Dry/Wet control

The Keybeds
Each Fatar keybed is meticulously calibrated at the NORD factory to ensure an even response over the whole range.

Semi Weighted Waterfall (SW)
This keybed type uses semi weighted organ type keys with a rounded "waterfall" tip, brilliant for rapid organ shredding and synthesizer licks, but also plays nice with piano sounds.
Key range F-F on Electro 4 SW73.

Performance
Changing, editing and storing presets is a breeze with there is also 4 Live memory locations that automatically saves what you're doing. The Program memory can hold 128 different Programs, organized in 32 Pages with 4 Programs each. All NORD instruments have dedicated knobs and buttons for all vital functions to keep the interface simple and easy to use during a performance. Functions only accessible through menus are printed on the panel for easy overview.

Monitor Input
Just plug your MP3 or CD player to the rear panel monitor input to play along, rehearse to or jam with previously recorded music without the need of an external mixer or sound system. The signal is monitored through the headphone output.

Control Pedals
Control Pedal support has been improved and now supports the following pedals: Fatar, Yamaha FC7, Roland EV-7, Roland EV-5, Korg EXP2 and Korg XVP10.
