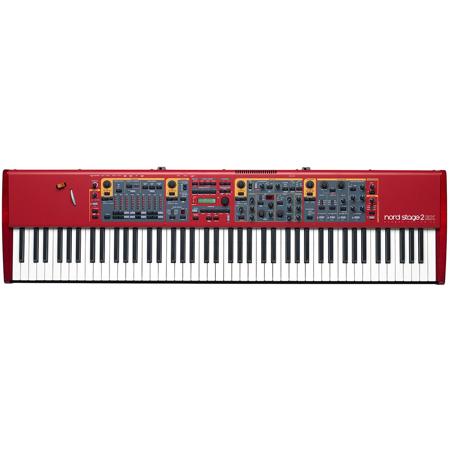

NORD Stage 2 EX 88 Velocity Sensitive Hammer-Action Keyboard with 88 Keys, Range A-C

SKU: NONST2EX88

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

NORD Stage 2 EX 88 Keyboard Specifications

  • Keyboard Functions -1

    Master level control
    Wooden pitch stick
    Modulation wheel
    400 programs - 4 banks with 20 pages each. Each page has 5 program locations
    Program categories
    Program Sort Modes: Numerical, alphabetical or by category
    5 live buffers
    2 individual slot setups
    3 morph sources (modulation wheel, control pedal, after touch)

  • Keyboard Functions -2

    Global mono output
    Programmable transpose +/- 6 semitones
    Master clock functionality with manual, external and tap-tempo rate control
    Internal and MIDI clock source
    MIDI over USB functionality

  • Organ Section

    3 Tone Wheel organ, Vox Continental and Farfisa models with full polyphony
    9 digitally controlled drawbars
    Percussion controls
    Vibrato / chorus control
    Two drawbar settings per program 2-part multitimbral (2 manuals)

  • Piano Section -1

    1GB memory for piano sounds
    Acoustic grand pianos
    Upright pianos
    Electric pianos
    Synth Pianos
    Wurlitzer A200 electric piano
    Clavinet D6
    Harpsichords
    Electric grand pianos includes CP-80 electric grand
    40-60 voices polyphony
    4 selectable velocity curves

  • Piano Section -2

    Clavinet EQ controls
    String resonance (Generation 2) on acoustic Grand Pianos and Uprights
    Selectable piano release
    Pedal Noise when used with Nord Triple Pedal (optional accessory) on selected acoustic and electric pianos
    Slot Detune functionality
    2-part multitimbral

  • Synth Section -1

    Sample Playback Synthesis: Approx. 380 Megabytes of sample memory, up to 999 Sample Instruments
    Analog Synthesis: Multiple waveforms including dual saw, hard sync and PWM
    FM Synthesis: 2 & 3 operator FM synthesis
    Wavetables Synthesis: 62 waveforms
    18 voices polyphony
    Unison control - with no reduction in polyphony
    Amplitude envelope
    Modulation envelope
    12/24dB low pass, high pass, band pass and notch filter with resonance

  • Synth Section -2

    LFO with 4 waveforms (square, triangle, ramp and sample & hold)
    300 patch memory locations, 3 categories
    Arpeggiator (Up, Down, Up-Down and Random), Range: 1, 2, 3 or 4 octaves
    LFO and Arpeggiator synchronizable to Master Clock
    2-part multitimbral

  • Common Parameters

    Level Control
    Zone (split assignment) control

  • Effects

    Effect 1: Ring modulator, tremolo, pan, wah, autowah 1, autowah 2
    Effect 2: Flanger, vibe, 2 phasers, and 2 choruses
    Delay: With ping pong (stereo taps) and tap-tempo
    3 types of speaker simulations: JC, twin and small
    Tube amp simulation with adjustable overdrive
    3-band equalizer with sweepable mid. EQ ranges: 100Hz, 200Hz-8kHz and 4kHz
    Rotary Speaker: Selectable speed (stop, slow and fast) and separate overdrive
    Effect rates/tempo can be synchronized to the Master Clock

  • Master Effects

    Compressor
    Reverb - 5 algorithms

  • Keyboard

    HA88-Model: 88-key fully weighted hammer-action velocity-sensitive keyboard.
    Range: A-C,Aftertouch, supports 3 split zones with a visual LED indication

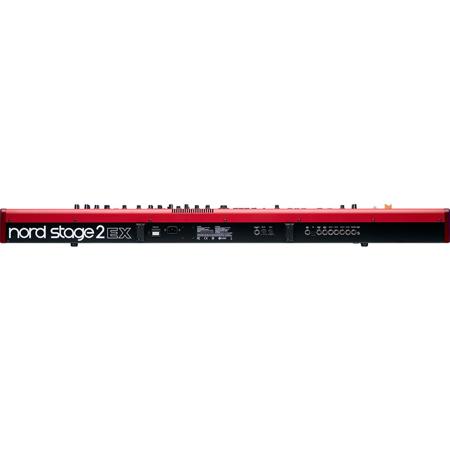

  • Connections -1

    4 Assignable Audio Outputs: 1/4" (6.3mm) jacks, unbalanced
    Stereo Headphone Output: 1/4" (6.3mm) stereo jack
    1 Monitor Input: 1/8" (3.5mm) stereo jack
    Sustain Pedal: 1/4" (6.3mm) jack uses a momentary pedal, like e.g. Roland DP-2, DP-6, Yamaha FC-4, FC-5, Fatar VFP1-25, etc.
    Sustain input compatible with Nord Triple Pedal (sold separately)

  • Connections -2

    Rotor Pedal: 1/4" (6.3mm) jack. Use a momentary pedal or a switch-type pedal
    Organ Swell Pedal: 1/4" (6.3mm) TRS stereo jack. Use a Control/Expression pedal like e.g. Yamaha FC-7, Roland EV-5, etc.
    Control Pedal: 1/4" (6.3mm) TRS stereo jack. Use a Control/Expression pedal like e.g. Yamaha FC-7, Roland EV-5, etc.
    MIDI In: 5-pin DIN connectors
    MIDI Out: 5-pin DIN connectors
    USB: type B connector
    Power Cord with IEC C14 connector

  • Dimensions (L x H x W)

    50.7 x 4.7 x 13" / 128.78 x 11.94 x 33.02cm

  • Weight

    40.7lbs / 18.46kg

  • UPC Code

    834035001288

About NORD Stage 2 EX 88 Keyboard

The Nord Stage 2 Ex updates their flagship instrument line with 1 GB memory for the Nord Piano Library and a new ultra lightweight Hammer Action Portable HP76 model. Their outstanding new Factory Bank features 5 Grand Pianos, 7 Upright Pianos, 11 Electric Pianos, Clavinet, Harpsichords and a vastly improved Nord Sample Library selection including great new Strings, Choir and Folk instruments.

The Nord Stage 2 Ex features their award winning Piano, Organ and Synthesizer technologies combined with a well thought-out, user friendly interface, a choice of premium keybeds and an almost obsessive level of quality control. The Stage 2 Ex truly sets itself apart as an instrument for the professional performing musician.

Piano section
• 1 GB memory for the Nord Piano Library
• State-of-the art sample-based Acoustic and Electric Pianos
• Advanced String Resonance (Gen 2)
• Long Release option
• Dynamic Pedal Noise via optional Nord Triple Pedal

Synth section
• 380 MB for the Nord Sample Library
• Powerful Classic analog, FM and Wavetable synthesis
• Arpeggiator
• Unison mode
• Master Clock

Organ section
• B3 Tone-wheel simulation
• Rotary Speaker simulation
• Faithful simulations of classic Vox and Farfisa organs
• Digital LED Drawbars for easy overview of active drawbar settings.

Multitimbral powerhouse
The Stage 2 Ex has three sound generating sections; Piano, Organ and Synthesizer, all of which can be used simultaneously. Furthermore, the Nord Stage 2 Ex has 2 separate slots allowing you to have 2 Pianos, 2 Organs and 2 Synths at the same time for massive sonic flexibility.

New factory sound banks
The Nord Stage 2 Ex features a brand new Factory Sound Bank with both new sounds in the Piano Library as well as a completely updated and refined selection of sounds from the Nord Sample Library. They've also optimized their sounds allowing you to fit even more sounds without comprising playability.

New sounds include:
DX Electric Pianos, Strings, Voice, Folk instruments

Piano section
he Stage 2 Ex Piano section features their state-of-the-art sampling techniques that capture the extraordinary nuances and real character of the individual source instruments. Combined with the Advanced String Resonance that reproduces the sound of the piano strings resonating at their fundamental or harmonic frequencies when other strings are played and compatibility with the optional Nord Triple Pedal that adds Dynamic Pedal Noise the result is breathtaking realism and an unsurpassed expressiveness.

In addition to vivid acoustic Grand and Upright pianos, the Piano section also features some of the finest, most desirable vintage electric pianos. The Stage 2 Ex's piano sounds are future-proof thanks to its compatibility with the Nord Piano Library. This free online library is continuously updated with both upgraded existing pianos and all-new pianos to keep your instrument constantly renewed.

Long release
Ab Long Release-mode adds a slightly longer release, more suitable for legato playing, emulating a looser damper tension in an acoustic or an electromechanical instrument.

Nord triple pedal
The Nord Triple Pedal (optional accessory) features their unique dynamic sustain pedal that enables the use of half-pedaling and ""release and catch"" techniques, as and also includes Sustenuto and Soft Pedals. The Nord Triple Pedal also recreates the mechanical sounds of lifting and releasing the damper mechanism, producing the characteristic thomp and sizzle sounds. The Pedal Noise feature responds dynamically to the force/momentum used when pressing or releasing the sustain pedal on the Nord Triple Pedal.

Organ section
B3 tone-wheel simulation
The Stage 2 Ex's dedicated organ section is based on their award winning B3 Tone-Wheel simulations, based on thorough analysis of the 91 spinning discs inside several original instruments and painstaking work on understanding exactly how all the components interact with each other. The virtual circuitry reacts not only to the settings on the panel but also during the real time performance. The Stage 2 Ex will faithfully reproduce the important foldback and energy robbing characteristics; the latter will produce the gentle compression effect that makes those lovely smears absolutely wonderful. There are 3 tone wheel modes that allow you to switch from a clean, factory spec'd instrument to a worn and battered workhorse with many years of touring.

Rotary speaker simulation
The vintage Rotary Speaker simulation adds an essential character to a live organ performance and features Slow, Fast and Stop mode as well as a Drive control. The Rotary Speaker simulation can also be used with the Piano or Synth Section.

Digital LED drawbars
The Nord Stage 2 Ex features Digital LED Drawbars, offering excellent overview over current settings and let's you easily change the drawbar settings while playing.

Transistor organ simulations
The Organ section also includes carefully modeled simulations of two of the most famous transistor organs from the 1960's, the Vox Continental and the Farfisa Compact.

Synth section
The Stage 2 Ex's powerful synthesizer engine is capable of classic analog synthesis, three operator FM synthesis, Wavetable synthesis and compatible with the Nord Sample Library. The Nord Sample Library gives Stage 2 Ex owners access to the huge free library of world-class sounds, including the famous vintage Mellotron and Chamberlin samples. The included Nord Sample Editor for Mac and PC, makes it possible to create your own samples easily and transfer them to your keyboard in no time, opening up a whole new world of possibilities!

The Synth engine itself features classic analog synthesis with dual saw, hard sync and pulse wave modulation, three-operator FM synthesis with 32 different modulation frequencies, Wavetable synthesis with 62 waveforms and Sample based synthesis. A great-sounding multimode filter features 12 and 24dB low pass, high pass, band pass and notch filters. And with an Amp envelope, Modulation envelope, an LFO and Unison control, the Stage 2 Ex's synth capabilities are hugely powerful, delivering amazing on-stage sound. The Synth section also features an Arpeggiator that can be easily synced to the Stage 2 Ex's Master Clock for perfect timing with other elements of the Stage 2 Ex, including its effects.

Programming and control
To make programming and on-stage control as simple as possible they have arranged the sound generators and controls of the Stage 2 Ex into dedicated sections Piano, Organ and Synth. Not only does this make for a very intuitive approach to programming but also instantly shows you which settings are active. There are no deep menus, no complicated screens to navigate. All vital functions are controlled by dedicated single-function knobs.

In addition their patented Pitch Stick and Modulation Wheel allow maximum musical expression and their efficient Morph Grouping technique is also included, allowing you to assign sound and effects parameters to physical controllers.

Extern section
The Nord Stage 2 Ex wouldn't be a master keyboard if it couldn't control external devices with ease. The Extern Section is designed solely for this purpose, so that any MIDI-connected gear gets seamlessly integrated with the Stage 2 Ex's built-in instruments. Zones, splits and layers are handled exactly as if the external equipment was a part of the Stage 2 Ex itself. All settings are saved together with a Program so advanced setups can be immediately recalled in real-time during a performance. You can even use the Extern Section to automatically transmit Bank Select and Program Change messages to your external units.

The keybeds
Each Fatar keybed is meticulously calibrated at the Nord factory to ensure an even response over the whole range.

Hammer action (HA)
The Ex 2 88 keybed uses their top-of-the-line fully weighted hammer action piano keys. Perfect for electric and acoustic piano sounds, but also works great for organ playing. Key range A-C.

Effect section
No sound is complete without the proper use of effects. In the Nord Stage 2 Ex they incorporated all the effects required to cover musicians' needs. All of the three instrument sections - Organ, Piano and Synth - can be routed individually through the Stage 2 Ex's built-in effect units. Turning the effects on and off and controlling the routing is easily done by a touch of dedicated buttons, readily accessible at the bottom of each effects unit. The Nord Stage 2 Ex has a dedicated Effect Section for each of the 2 slots.

Effect 1
Here you can choose from Tremolo, two Wahs, an Auto-Wah and an AutoPan. Use the AutoWah with a Clavinet for raw funk licks, create a psychedelic vibe with an Electric Piano on AutoPan, or give a Wurlitzer some body using the Tremolo. There is also a Ring Modulator on board, an effect used by many experimental and electronic musicians.

Effect 2
The two Phasers, two Choruses, the Flanger and a Vibe effect are modeled from the classic analog stomp boxes that define the sound of popular music. These swirling Phasers, metallic Flangers and thick Choruses that are used by uncompromising professionals everywhere are crystal clear and faithfully simulated on the Nord Stage 2 Ex.

What's in the box:

  • NORD Stage 2 EX 88 Velocity Sensitive Hammer-Action Keyboard with 88 Keys
  • Dust Cover
  • Sustain Pedal
  • Power Cord
  • USB Cord
  • User Manual
  • Nord Sample and Piano DVDs
  • NORD 1 Year Limited Warranty
