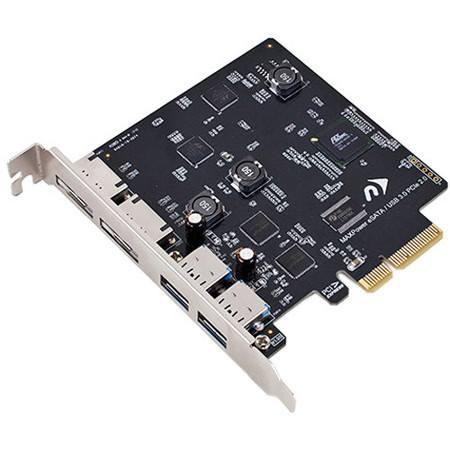

NewerTech MAXPower 2x 2 USB/eSATA PCIe 2.0 Host Adapter for Mac OS X 10.6 - 10.8.2

Maximum Versatility
Designed specifically for OS X 10.6 - 10.8.2, the MAXPower USB/eSATA 2x2 Host Adapter for OS X 10.6 - 10.8.2 comes with a custom built driver and is the perfect companion card for systems which still require a legacy OS. For systems which are running 10.8.3 or later the driverless MAXPower USB/eSATA 2x2 Host Adapter is also available.

• PCI Express 2.0 x4
• Two USB 3.0 ports with Type A connectors (female)
• Two 6Gb/s eSATA Ports
• 20Gb/s transfer bandwidth
• Optimized for all USB 3.0 & eSATA storage devices
• Backwards compatible with USB 2.0 & 1.1 and eSATA 3Gb/s
• Hot-Swap and Hot-Plug

Maximum Integration
The power of USB 3.0 and SATA 6G high-speed interfaces are brought together on a single PCIe 2.0 card with the MAXPower USB/eSATA 2x2 host adapter. With both high-speed USB 3.0 and 6Gb/s eSATA connectivity, the MAXPower USB/eSATA host adapter provides connections to the latest technology. This highly integrated I/O card saves valuable PCIe slots while adding the throughput desired for demanding applications like video editing, audio mixing and photography.

Maximum Performance
The MAXPower USB/eSATA 2x2 host adapter provides two eSATA ports that are compatible with the latest 6G technology such as SSDs, allowing for speeds up to 6Gb/s. It is fully compatible with SATA I (1.5G), SATA II (3G) and USB 2.0 and supports legacy devices, hubs and external optical drives. Simple to integrate and operate, it supports hot-plugging, eliminating the need to restart the computer when connecting or disconnecting a USB or SATA device.

Maximum Efficiency
Since each USB and eSATA port commands a dedicated PCIe lane, card-level throughput of up to 2,000MB/s can be achieved, up to 500MB/s per each port. And the eSATA ports support port multiplication, allowing you to connect multiple eSATA devices through a single port. For applications in servers or other specialized computers where space is limited, the MAXPower USB/eSATA 2x2 features a removable bracket design to fit into low profiles machines. The small size accommodates most Mac and PC workstations. Using less power than most PCIe cards, the MAXPower has been designed to run faster and cooler than other cards on the market.

All MAXPower products are designed with superior quality components for long life reliability and the USB/eSATA 2x2 card is no exception. Every component from the card to the cables has been tested to ensure optimum performance.

Note

Apple OS X Sleep is not supported with this card. Sleep should be disabled when using devices with this card. The computer's screen will turn off, but the computer will not actually enter a sleep state with the card installed.
