NewerTech Power2U Wall Outlet Specifications

  • Compatibility

    Apple iPad (all models)
    Apple iPhone (all models)
    Apple iPod (all USB chargeable models)
    Android tablets and phones, tablet computers, cellphones, gaming systems (Nintendo, Sony PSP, etc.), Bluetooth headsets, digital cameras, or GPS devices which charge via standard USB plug

  • Electrical Requirements

    14 Gauge (15A) Electrical Circuit
    14 Cubic Inch or larger single gang electrical box

  • Grounding

    Self

  • Amperage

    15 Amp

  • Voltage

    125 Volt

  • NEMA

    5-15R Compliant

  • Pole

    2

  • Wire

    3

  • DC power

    5.2 volt, 2500mA (12.5W) Duplex USB charging receptacle with integrated on/off safety switch for USB power

  • Dielectric Voltage

    Withstands 2000V per UL 498

  • Overload Test, HP Ratings

    125V AC 58.8A

  • Current Limiting

    Full Rated Current

  • Temperature Rise

    15A
    Maximum contact temperature rise 62.95 deg. F (27.6 deg. C)
    Maximum terminal temperature rise 59.36 deg. F (19.8 deg. C)

  • Face & Body Material

    Polycarbonate

  • Line Contacts

    Brass triple-wipe .031 thick

  • Strap Material

    Zinc-plated steel

  • Terminal ID

    None; wires attached

  • Terminal Accommodation

    None; wires attached

  • Product ID

    Ratings marked on device

  • Termination

    14 Gauge Standard Wire

  • Flammability

    Rated V-2 per UL94

  • Operating Temperature

    -40 to 140 deg. F (-40 to 60 deg. C)

  • Compliances

    NEMA: WD-1 & WD-6
    ANSI: C-73
    UL 498: File E339607
    UL 514D: File E339607
    UL 1310: File E339607
    CAN/CSA C22.2 No. 223: File E339607
    Patent Number: 7997925

About NewerTech Power2U Wall Outlet

Dual-socket Wall Outlet with Two Integrated USB Ports
The NewerTech Power2U dual USB wall outlet is the convenient and energy-efficient solution for powering and charging USB devices. The Power2U provides two traditional 15A power outlets, plus two USB ports delivering 2.5A for fast charging of your USB devices. Conveniently power and charge up to four devices without searching for power adapters or using your computer as a charging station.

• Two full-power USB ports to charge mobile devices
• Fully UL-listed
• NEC compliant tamper-resistant
• Designed for standard 15A circuits

Designed for Easy Install

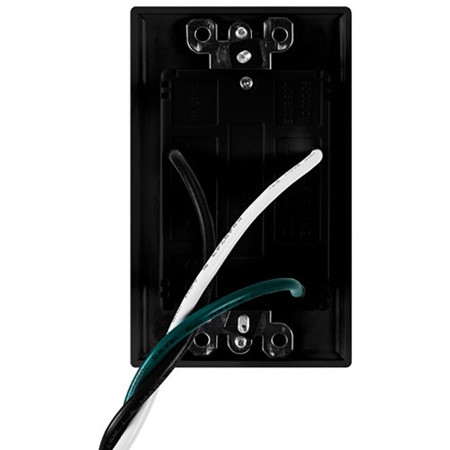

At just 14 cubic inches, the Power2U offers a compact design and features integrated 14 gauge copper wires for easy installation. Plus, the Power2U utilizes a standard wall plate, allowing you to install it in more places than ever before, even in multi-gang configurations. Fully UL-listed and featuring NEC-compliant, tamper-resistant AC sockets, means the Power2U is safe for use in homes and offices. And with its compact design and free how-to installation video, you can have Power2U installed in minutes!

Ideal "DIY" Upgrade For Multiple Device Users
The Power2U offers easy access to each port and outlet, so you can charge and power up to four devices simultaneously. Whether in your kitchen, living room or beside your bed, the Power2U delivers convenience and blends seamlessly anywhere you can install a wall outlet.

Money Saving, Energy-Efficient Design
Power 2U's internal safety switch only outputs the charging power required by the attached device and powers off unused USB ports to eliminate stand-by energy draw. With 5% of U.S. energy consumed from stand-by power from appliances and computer equipment, the Power2U is a smart, environmentally friendly energy decision that reduces the cost of your monthly energy bill.

What's in the box:

  • NewerTech Power2U Universal Fit AC 15A Wall Outlet with 2x USB Charging Ports and 2x AC 110/120V Soc
  • 2x Faceplate Retaining Screw
  • 2x Electrical Box Mounting Screws (Pre-Installed)
  • 3x 22-14 AWG Wire Nuts
  • Installation Manual
  • NewerTech 1 Year Limited Warranty
