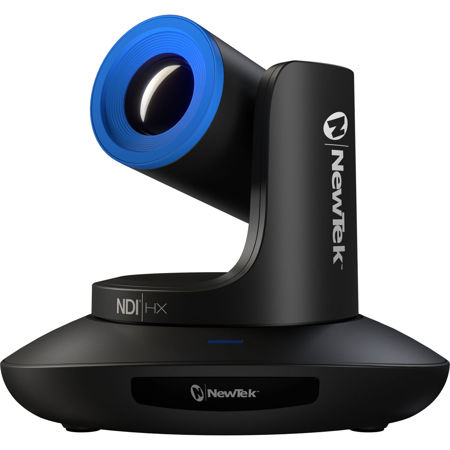

NewTek NDI|HX PTZ3 Full HD 3G-SDI/HDMI 20x PTZ Camera, Black

SKU: NUNDIHXPTZ3B

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the NDI|HX3 technology in the NDI|HX PTZ3 Camera?

NDI|HX3 is an advanced technology that delivers superior video quality with significantly reduced latency, all while utilizing minimal bandwidth. It's a new standard that offers the quality and low latency of full NDI without the heavy bandwidth usage.

What is the function of the Professional XLR audio input in the NDI|HX PTZ3 Camera?

The Professional XLR audio input in the NDI|HX PTZ3 Camera allows for seamless connections with audio devices such as microphones and sound mixers, ensuring superior audio quality in your video productions.

How does the single Ethernet cable connectivity work in the NDI|HX PTZ3 Camera?

The NDI|HX PTZ3 Camera can be integrated into any workflow with just one Ethernet cable. This cable provides audio and video, PTZ control, tally, and Power over Ethernet (PoE), simplifying the setup process and eliminating the need for long cable runs.

How does the NDI|HX PTZ3 Camera perform in different lighting conditions?

The NDI|HX PTZ3 Camera is equipped with an advanced lens and sensor, allowing for smoother movement between camera presets. This makes it effective in diverse lighting conditions, from low light environments like studios to brighter settings such as classrooms or hospitals.

What does it mean that the NDI|HX PTZ3 Camera is 'future-proofed'?

The NDI|HX PTZ3 Camera is described as 'future-proofed' because it offers a range of new elements that add quality, simplicity, and flexibility. These features ensure that users can keep pace with the evolving needs of any video production, making it a long-term investment.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

NewTek NDI|HX PTZ3 Specifications

  • Color

    Black

  • Video Formats

    1080p: 60, 59.94, 50, 30, 29.97, 25, 24,
    1080i: 59.94, 50
    720p: 60, 59.94, 50, 30, 29.97, 25

  • Zoom

    20x Optical & 2x digital zoom

  • Sensor

    1/2.86" High Quality CMOS Sensor

  • Shutter Speed

    1/30 to 1/10,000 sec

  • Panning Angle

    -170 Degree to +170 Degree

  • Panning Speed

    Max 120 Degree /sec

  • Tilting Angle

    30 Degree to +90 Degree

  • Tilting Speed

    Max 80 Degree /sec

  • Aperture

    F1 - F14

  • Focal Length

    4.9-98mm

  • Horizontal Angle of View

    60 Degree (Far)-3,2 Degree (Near)

  • Min. Object Distance

    1.5m (Wide/Tele)

  • Min. Illumination

    1.0 lux

  • Audio Input

    Mini XLR, 3.5mm stereo audio input (line)

  • Embedded Audio

    NDI, HDMI

  • Signal

    Balanced (Mini XLR), Unbalanced (Line In)

  • Sample Rate

    48KHz

  • Frequency

    100Hz-20KHz

  • Total Harmonic distortion

    -90dB

  • Tally

    Supported

  • Anti-Flicker

    Off/50Hz/60Hz

  • Gain Control

    Auto, Manual

  • Control

    NDI

  • User Interface

    Web based or NewTek NDI Studio Monitor applications for remote configuration, control, and monitoring

  • POE+

    POE+ (IEEE 802.3 at)

  • Direct Power

    DC12V

  • Power Consumption

    8W

  • Operating Temperature

    14 Degree F to 122 Degree F (-10 Degree C to 50 Degree C)

  • Operating Humidity

    20% - 80%

  • Dimensions

    8.66 x 7.48 x 6.41" (220 x 190 x 173mm)

  • Weight

    2.97 lbs (1.35kg)

About NewTek NDI|HX PTZ3

What sets the NewTek NDI|HX PTZ3 Camera apart is its revolutionary PTZ capabilities, designed to redefine the standards of live video acquisition for any workflow. This Full HD 3G-SDI/HDMI 20x PTZ Camera, housed in a sleek black casing, is the world's first to offer the advanced NDI|HX3 technology. This feature ensures superior video quality with significantly reduced latency, all while utilizing minimal bandwidth.

The NDI|HX PTZ3 Camera is not just about video; it also brings unprecedented audio quality to the forefront. With the inclusion of a Professional XLR audio input, it facilitates seamless connections with audio devices such as microphones and sound mixers.

Connectivity is another area where the NDI|HX PTZ3 Camera excels. It seamlessly integrates into any workflow with a single Ethernet cable, providing audio and video, PTZ control, tally, and Power over Ethernet (PoE). This level of integration simplifies the setup process and eliminates the need for long cable runs, making it a cost-effective solution for video professionals, IT managers, and system designers.

The PTZ3 Camera's unique design allows for smoother movement between camera presets, coupled with an improved lens and sensor. This makes it equally effective in low light environments like studios, as well as in brighter settings such as classrooms or hospitals.

With the NDI|HX3 technology, the PTZ3 Camera strikes the perfect balance between quality and efficiency without any compromise. This new standard offers the quality and low latency of full NDI without the heavy bandwidth usage.

In addition to its advanced features, the NDI|HX PTZ3 Camera is future-proofed, offering a range of new elements that add quality, simplicity, and flexibility. This ensures users can keep pace with the evolving needs of any production.

In conclusion, the NDI|HX PTZ3 Full HD 3G-SDI/HDMI 20x PTZ Camera is more than just a camera; it's a comprehensive solution for superior video and audio production, offering unparalleled connectivity and control. With its advanced features and future-proof design, it's set to redefine the standards of PTZ Cameras everywhere.

NewTek NDI|HX PTZ3 Features

  • Offers NDI|HX3 support
  • Support for sophisticated devices with Professional XLR audio connection
  • Available in Black body color
  • One ethernet cable for audio and video, PTZ control and tally
  • Compatible with NDI version 5
  • Smooth, motor-driven pan-tilt-zoom operation and movement between presets
  • Integrated and automatic tally support via NDI
  • Native support for HD video formats up to 1080p 60

Product Documents

User Manual

Key Features

  • Full HD 3G-SDI/HDMI 20x PTZ Camera with revolutionary NDI|HX3 technology
  • Professional XLR audio input for superior sound quality and easy connection to audio devices
  • Future-proof design with features that cater to the evolving needs of any video production
  • Seamless integration into workflows, offering unparalleled control and simplicity

What's in the box:

  • NewTek NDI|HX PTZ3 Full HD 3G-SDI/HDMI 20x PTZ Camera (Black)
  • Ceiling Mount
  • Wall Mount
  • Mini-XLR to XLR Adapter
  • NewTek 1 Year Limited Warranty
