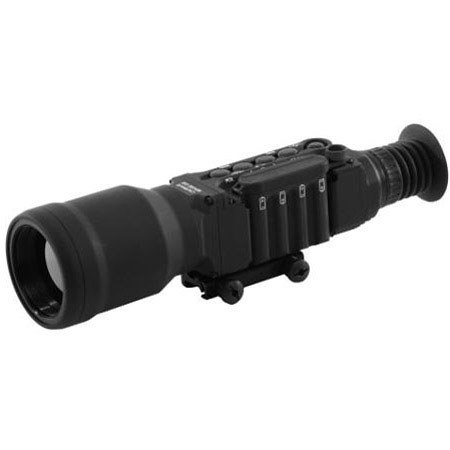

N-Vision Optics TWS-13A-H Thermal Weapon Sight, 100mm f/1.2 Lens, 336x256 Resolution, 17um Detector Pitch

SKU: NVTWS13AH MFR: TWS-13A-H
Earn VIP Reward Points

Key Features

  • Experience superior thermal imaging with the 336x256 resolution for crisp visuals.
  • Enhance your vision with this thermal weapon sight, featuring a powerful 100mm f/1.2 lens.
  • Detect targets up to 2950 meters with this advanced thermal optic, ensuring long-range capabilities.
  • Operate in extreme conditions; this thermal imager is built to withstand -40°C to +50°C.
  • Customize your view with selectable reticles, adjustable for precise targeting with this sight.
  • Enjoy extended use with versatile power options: AA batteries or external 12V DC for your thermal.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$229.99

3 Year

$274.99

4 Year

$369.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

N-Vision Optics TWS-13A-H Specifications

  • Detector

    Uncooled vanadium oxide (VOx) microbolometer

  • Spectral Response

    7.5-13.5um

  • Detector Resolution

    336 x 256

  • Detector Pitch

    17um

  • Frame Rate

    30Hz

  • Standard Mount

    MIL-STD-1913 Picatinny or Weaver

  • Reticles

    Four reticles selectable and adjustable to boresight

  • Objective Lens

    100mm f/1.2

  • FOV (H x V)

    3.3deg. x 2.5deg.

  • Digital Zoom

    2x, 4x

  • Polarity Control

    Black hot/white hot

  • Analog Video Display Formats

    Standard 640 x 480 (NTSC)
    Factory option 640 x 512 (PAL)

  • Eyepiece Display Type

    Color OLED

  • Eyepiece Display Resolution

    800 x 600

  • Eye Relief

    48mm

  • Eyepiece Diopter Adjustment

    -6 to +2 diopters

  • Power Source

    4 AA batteries or external 12V DC
    4 CR123 battery version is available

  • Power Conversion

    Standby mode

  • Detection (typical/best, meters)

    2450/2950 (Man Size Target)

  • Recognition (typical/best, meters)

    650/750 (Man Size Target)

  • Identification (typical/best, meters)

    330/380 (Man Size Target)

  • Image Storage Type

    Internal, Non-removable

  • Image Access

    USB

  • Image Storage Capacity

    400 images

  • Operating Temperature Range

    -40 to +50deg.C

  • Non-Operating Temperature

    -40 to +71deg.C

  • Dimensions (L x W x H)

    35.5 x 8.9 x 10cm / 13.98 x 3.5 x 3.94" (without batteries and spacer)

  • Weight

    1.6kg / 3.53lbs (without batteries and spacer)

  • UPC Code

    700613258002

About N-Vision Optics TWS-13A-H

Become a master of precision and accuracy with the high-tech N-Vision Optics TWS-13A-H Thermal Weapon Sight. Engineered with a powerful 100mm f/1.2 Lens and an advanced 336x256 resolution, this thermal weapon sight is designed to provide a clear, detailed image that gives the operator a significant edge in detecting, observing, and engaging targets, regardless of the time of day or weather conditions.

Constructed from durable, aircraft-grade 6061-T6 aluminum, this lightweight yet robust sight is equipped with cutting-edge thermal imaging technology. This technology generates superior infrared (IR) images, ensuring reliable target acquisition at the maximum possible range.

The TWS-13A-H is not just powerful, but also user-friendly. It features ergonomic and clearly marked digital controls for ease of operation. With four custom-tailored reticle patterns, each with corresponding zero, color, brightness, and contrast, you can adapt the sight to individual weapons and specific tactical scenarios.

The sight's display polarity can be switched between white hot or black hot options, allowing you to choose the best visual representation for your environment. Additionally, the standard 2x and 4x digital zoom capabilities enable clear identification of targets before engagement, enhancing your safety and success rate.

But the TWS-13A-H goes beyond just sighting. It also allows you to photograph targets and save images to its internal storage. These images can later be downloaded to a computer via a USB cable, providing a valuable tool for post-mission analysis or training purposes.

Experience the blend of advanced technology, power, and user-friendly design with the N-Vision Optics TWS-13A-H Thermal Weapon Sight, a reliable choice for any tactical operation.

N-Vision Optics TWS-13A-H Features

  • Advanced 336x256 resolution for clear, detailed thermal imaging
  • High-performance 100mm f/1.2 lens for superior target acquisition
  • Rugged, lightweight design with aircraft-grade 6061-T6 aluminum housing
  • Customizable reticle patterns with digital controls for tailored targeting
  • Dual polarity display with white hot and black hot viewing options
  • Integrated digital zoom (2x and 4x) for precise target identification

Key Features

  • Experience superior thermal imaging with the 336x256 resolution for crisp visuals.
  • Enhance your vision with this thermal weapon sight, featuring a powerful 100mm f/1.2 lens.
  • Detect targets up to 2950 meters with this advanced thermal optic, ensuring long-range capabilities.
  • Operate in extreme conditions; this thermal imager is built to withstand -40°C to +50°C.
  • Customize your view with selectable reticles, adjustable for precise targeting with this sight.
  • Enjoy extended use with versatile power options: AA batteries or external 12V DC for your thermal.
