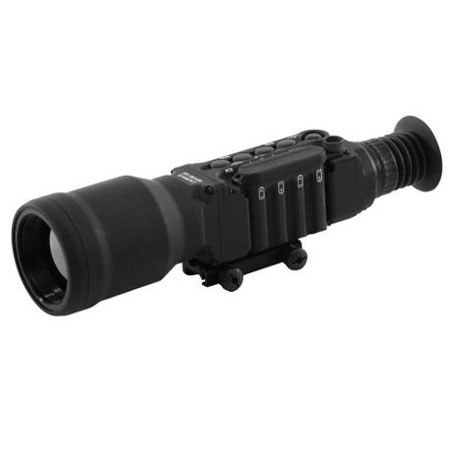

N-Vision Optics TWS-13D-H Thermal Weapon Sight, 100mm f/1.2 Lens, 640x512 Resolution, 17um Detector Pitch

SKU: NVTWS13DH MFR: TWS-13D-H
Earn VIP Reward Points

Key Features

  • Experience superior clarity with the 640x512 thermal resolution for detailed imaging.
  • Enhance your situational awareness with a wide 6.2° x 5.0° field of view thermal optic.
  • Achieve long-range detection; identify targets up to 380 meters with thermal imaging.
  • Enjoy versatile mounting with MIL-STD-1913 Picatinny for secure thermal weapon sight.
  • Customize your view with selectable reticles, adjustable for precise thermal boresighting.
  • Operate in extreme temps, from -40°C to +50°C, with this rugged thermal riflescope.
See More Product Details
Special Order?Estimated to Ship: 09/09/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

N-Vision Optics TWS-13D-H Specifications

  • Detector

    Uncooled vanadium oxide (VOx) microbolometer

  • Spectral Response

    7.5-13.5um

  • Detector Resolution

    640 x 512

  • Detector Pitch

    17um

  • Frame Rate

    30Hz

  • Standard Mount

    MIL-STD-1913 Picatinny or Weaver

  • Reticles

    Four reticles selectable and adjustable to boresight

  • Objective Lens

    100mm f/1.2

  • FOV (H x V)

    6.2deg. x 5.0deg.

  • Digital Zoom

    2x, 4x

  • Polarity Control

    Black hot/white hot

  • Analog Video Display Formats

    Standard 640 x 480 (NTSC)
    Factory option 640 x 512 (PAL)

  • Eyepiece Display Type

    Color OLED

  • Eyepiece Display Resolution

    800 x 600

  • Eye Relief

    48mm

  • Eyepiece Diopter Adjustment

    -6 to +2 diopters

  • Power Source

    4 AA batteries or external 12V DC
    4 CR123 battery version is available

  • Power Conversion

    Standby mode

  • Detection (typical/best, meters)

    2450/2950 (Man Size Target)

  • Recognition (typical/best, meters)

    650/750 (Man Size Target)

  • Identification (typical/best, meters)

    330/380 (Man Size Target)

  • Image Storage Type

    Internal, Non-removable

  • Image Access

    USB

  • Image Storage Capacity

    400 images, Extended memory versions are available

  • Operating Temperature Range

    -40 to +50deg.C

  • Non-Operating Temperature

    -40 to +71deg.C

  • Dimensions (L x W x H)

    35.5 x 8.9 x 10cm / 13.98 x 3.5 x 3.94" (without batteries and spacer)

  • Weight

    1.6kg / 3.53lbs (without batteries and spacer)

  • UPC Code

    700613258033

About N-Vision Optics TWS-13D-H

Are you seeking a high-performance thermal weapon sight that offers superior target detection and engagement capabilities in any condition Look no further than the N-Vision Optics TWS-13D-H. This advanced thermal weapon sight, equipped with a 100mm f/1.2 Lens and a high-resolution 640x512 display, is engineered to provide operators with a significant edge in all scenarios, whether in daylight or under the cover of darkness.

Constructed from rugged, lightweight aircraft-grade 6061-T6 aluminum, the TWS-13D-H is not only durable but also incorporates cutting-edge thermal imaging technology. This combination ensures the generation of superior IR images and guarantees maximum range target acquisition.

Ease of operation is a key feature of the N-Vision Optics TWS-13D-H. Its ergonomic design and clearly marked digital controls make it user-friendly, even in high-pressure situations. The sight comes with four custom-tailored reticle patterns, each designed for individual weapons with corresponding zero, color, brightness, and contrast settings.

The TWS-13D-H offers flexibility in display polarity, with options for either white hot or black hot, allowing operators to choose the best setting for their tactical scenario. The standard 2x and 4x digital zoom capabilities further enhance target identification before engagement, providing a clear and detailed view of potential threats.

Adding to its impressive list of features, the N-Vision Optics TWS-13D-H also allows users to photograph targets and save images to its internal storage. These images can later be downloaded to a computer via a USB cable, providing a valuable tool for post-mission analysis and record-keeping.

In summary, the N-Vision Optics TWS-13D-H thermal weapon sight, with its 100mm f/1.2 Lens and 640x512 resolution, is a robust, high-tech tool designed to enhance your tactical capabilities and ensure successful mission outcomes.

N-Vision Optics TWS-13D-H Features

  • Advanced thermal weapon sight with 100mm f/1.2 Lens and high-resolution 640x512 display
  • Durable, lightweight construction using aircraft-grade 6061-T6 aluminum
  • User-friendly design with clearly marked digital controls for ease of operation
  • Four custom-tailored reticle patterns for individual weapon optimization
  • Flexible display polarity with white hot or black hot options
  • Standard 2x and 4x digital zoom capabilities for enhanced target identification
  • Image capture and storage feature with USB transfer capability for post-mission analysis
