27% Off

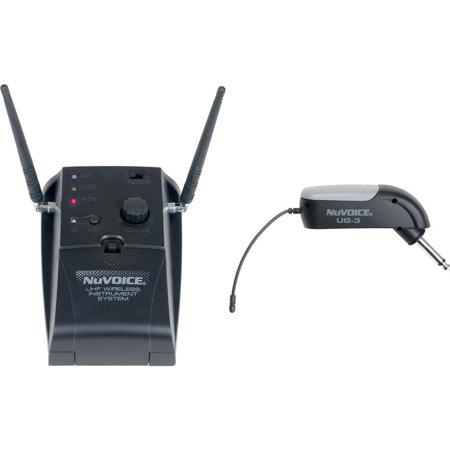

VocoPro NuVOICE UG-3 UHF Wireless Guitar System, Includes Receiver, Transmitter, Travel Case, 3' Male/Male 1/4" TRS Cable, AC Power Adapter

SKU: NVUG3 MFR: UG-3
$109.00
$149.00
Save: $40 (27%)
Earn VIP Reward Points

Key Features

  • Experience freedom with this UHF wireless guitar system, perfect for dynamic stage performances.
  • Achieve crystal-clear audio with a wide 50Hz-20kHz frequency response for your instrument.
  • Enjoy a reliable wireless range up to 328 feet, giving you room to move on stage or in studio.
  • The clamp-on microphone is designed specifically for instruments, ensuring optimal sound capture.
  • Benefit from low latency and a 95dB signal-to-noise ratio, delivering pristine sound quality.
  • Get up to 12 hours of battery life with the included transmitter, so you can play worry-free.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$15.99

2 Year

$23.99

3 Year

$35.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Learn
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

VocoPro UG-3 Specifications

  • Carrier Frequency Range

    900 - 925MHz

  • Operating Range

    328 feet

  • Number of Channels

    16

  • Receiver Type

    Portable

  • Diversity

    Yes

  • Microphone: Type

    Clamp On

  • Microphone: Designed Applications

    Instruments

  • Microphone: Number of Microphones

    1

  • Microphone: Frequency Response

    50 - 20000 Hz

  • Microphone: Signal-to-Noise Ratio

    95 dB

  • Microphone: Output Impedance

    5-10 k ohms

  • Microphone: Pad(s)

    -15

  • Microphone: Connection Type

    1/4" (TS Connector)

  • Receiver: Frequency Range

    900MHz - 925MHz

  • Receiver: Modulation Type

    F3E

  • Receiver: OSC (Oscillator) System

    PLL Circuit

  • Receiver: Operating Range

    Approx. 328 Feet (100 m)

  • Receiver: De-emphasis

    50u/sec

  • Receiver: Operating Temperature

    0deg.C - 50deg.C (32deg.F - 122deg.F)

  • Receiver: Storage Temperature

    -20deg.C - 70deg.C (-4deg.F - 158deg.F)

  • Receiver: Receiving Sensitivity

    SINAD > 30dB 10dBuV

  • Receiver: Squelch Sensitivity

    17dBuV +/- 4dBuV

  • Receiver: S/N (Signal-to-Noise) Ratio

    95dB (A) (f1kHz = 1mV)

  • Receiver: Audio Output Level

    800mV (f40kHz) at div.f15kHz

  • Receiver: Frequency Response

    50Hz - 20kHz +/- 3dB

  • Receiver: T.H.D. (@ SG Output 56dBuV)

    < 0.8% (f1kHz)

  • Receiver: Output Impedance

    5K - 10K ohms

  • Receiver: Power Supply

    DC9V / 2x 3V AA Batteries

  • Receiver: Current Consumption

    9V / 60mA, 3V / 100mA

  • Receiver: Antenna

    Dual 1/4 Wave Length Rod Antennas

  • Receiver: Controls

    Audio Volume
    IR ACT
    Ch. Select
    Power

  • Receiver: LED Display

    White: IR SEND
    Red: Power
    Yellow: Low Battery
    Orange/Green: Antenna

  • Transmitter: RF Output Power

    10dBm +/- 1dBm

  • Transmitter: Spurious

    -50dBm

  • Transmitter: Modulation Factor

    40kHz

  • Transmitter: Pre-emphasis

    50u/sec

  • Transmitter: Max. Input Level

    +2dBv

  • Transmitter: Input Impedance

    20K ohms

  • Transmitter: T.H.D

    < 0.8% (1kHz 100mV)

  • Transmitter: Frequency Response

    50Hz - 20kHz +/- 3dB

  • Transmitter: Operating Power Voltage

    1.5V typical, 1.1V min. - 2V max

  • Transmitter: Current Consumption

    80mA

  • Transmitter: Battery Life

    12 hrs. (AAA size battery)

  • Transmitter: Antenna

    Permanently Attached 1/4 Wave Length Wire

  • Transmitter: Controls

    Power / 15dB Pad Switch

  • Transmitter: LED Indicators

    Power On (flash) / Low Battery (solid)

  • UPC Code

    692868688737

Related Articles & Videos

6 Best Wireless Guitar Systems in 2020

6 Best Wireless Guitar Systems in 2020

Going wireless is a great way to improve your live performances regardless of your skill level. Wireless guitar systems give you the freedom to move around the stage while saving you from cable-related hazards. Like all wireless technologies, it has i...
Read more

About VocoPro UG-3

Some musicians need freedom when playing their instrument and with the VocoPro NuVOICE UG-3 UHF Wireless Guitar System, they may have all the freedom they like. Simply attach the wireless transmitter to your instrument and you're free to play for up to 12 hours on a single AAA battery. The solid base receiver can run on batteries or AC power, allowing for virtually unlimited placement options. Also, the diversity receiver design helps avoid signal drop-outs for greater reliability. Since there are 16 user-selectable operating frequencies, up to four systems can be used simultaneously.

VocoPro UG-3 Features

  • UHF Wireless Guitar System
  • Diversity receiver design eliminates dropouts caused by multipathing and interference
  • 16 operating channels allow for multiple sets to be used simultaneously
  • Operating range of up to 150 feet
  • Adjustable squelch control to minimize outside interference
  • TS 1/4" audio output
  • 3 LEDs display power, battery and antenna link status
  • Receiver can operate on 2 AA batteries or included DC power adapter

Product Documents

User Manual

Key Features

  • Experience freedom with this UHF wireless guitar system, perfect for dynamic stage performances.
  • Achieve crystal-clear audio with a wide 50Hz-20kHz frequency response for your instrument.
  • Enjoy a reliable wireless range up to 328 feet, giving you room to move on stage or in studio.
  • The clamp-on microphone is designed specifically for instruments, ensuring optimal sound capture.
  • Benefit from low latency and a 95dB signal-to-noise ratio, delivering pristine sound quality.
  • Get up to 12 hours of battery life with the included transmitter, so you can play worry-free.

What's in the box:

  • VocoPro NuVOICE U-Series Receiver
  • 3' Male/Male 1/4 " TRS Cable
  • AC Power Adapter
  • UG-3 Transmitter
  • Owner's Manual
  • VocoPro NuVOICE Warranty
