VocoPro NuVOICE UH-580 4-Channel UHF Wireless Headset System, M/N/O/P/PII
See all VocoPro items

VocoPro NuVOICE UH-580 4-Channel UHF Wireless Headset System, Includes Receiver, 4 Transmitters, 4 Mic, 8 AA Battery, 3' Cable, M/N/O/P/PII Frequency

SKU: NVUH5803
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

VocoPro UH-580 Specifications

  • Frequency Set

    Frequency M: 656.825 MHz
    Frequency N: 685.96 MHz
    Frequency O: 694.11 MHz
    Frequency P: 629.40 MHz

  • Receiver: Oscillation Mode

    Quartz Controlled Fixed Frequency

  • Receiver: Stability

    10 PPM

  • Receiver: Sensitivity

    1.6uV at sinad = 12dB

  • Receiver: Max. Deviation Range

    50Hz

  • Receiver: S/N Ratio

    >105dB

  • Receiver: T.H.D.

    <0.5% at 1kHz

  • Receiver: Image Rejection

    85dB typical

  • Receiver: Spurious Rejection

    75dB typical

  • Receiver: Frequency Response

    40Hz ~ 16kHz

  • Receiver: Squelch Control

    Dual-Squelch Circuit

  • Receiver: Max. Output Level

    Balance: 0 - 400mV
    Unbalance: 0 - 200mV

  • Receiver: Power Supply

    External DC Power Supply, 0.7A, 12 ~ 15V DC

  • Transmitter: Power

    30mV

  • Transmitter: Spurious Emission

    <40dB [with carrier]

  • Transmitter: Battery Voltage

    AA 1.5V

  • Dimensions (W x D x H)

    18.93 x 8.5 x 1.81" / 48.08 x 21.59 x 4.59cm

  • UPC Code

    692868688416

About VocoPro UH-580

Experience the ultimate freedom of going hands-free with the VocoPro NuVOICE UH-580 4-Channel UHF Wireless Headset System (M/N/O/P/PII Frequency) . Not only are you free from the tangles of microphone cables, you can once again use your hands for more important things like animating your presentation, or delivering a performance the crowd will never forget.

Each receiver channel has its own field-replaceable module that easily slides out without the need for special tools and without affecting the functionality of the other channels. Whether you're a house of worship, theater troupe, or board of speakers, VocoPro have you covered. Free yourself! And benefit from the reliability and versatility of the UH-580.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • NuVOICE UH-580 Receiver
  • 4 x Body Pack Transmitters
  • 3' Male/Male 1/4 " TRS Cable

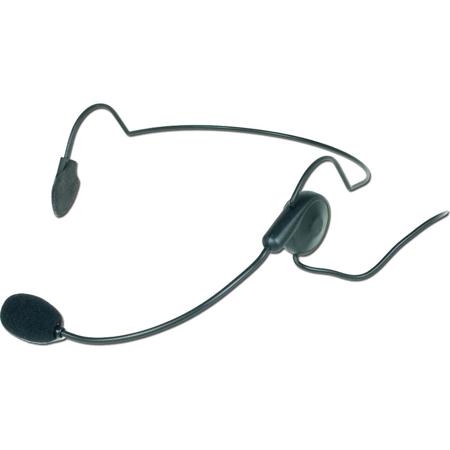

  • 4 x Headset Microphones
  • AC Power Adapter
  • 8 x AA Batteries
  • Owner's Manual
  • Custom Aluminum Travel Case
  • VocoPro Warranty
