NZXT H510 Specifications

  • Color

    Matte Black/Red

  • Material (s)

    SGCC Steel, Tempered Glass

  • Motherboard Support

    Mini-ITX, MicroATX, and ATX

  • Front I/O Ports

    H510: 1x USB 3.1 Gen 2 Type-C
    1x USB 3.1 Gen 1 Type-A
    1x Headset audio Jack

    Front I/O internal header
    1x USB 3.1 Gen 2 Internal Header
    1x USB 3.1 Gen 1 Internal Header
    1x HD Audio Header

  • Filters

    All Air Intakes

  • Drive Bays

    2.5": 2+1
    3.5": 2+1

  • Expansion Slots

    7

  • Radiator Support

    Front: 2x 140 or 2x 120mm with Pull
    Rear: 1x 120mm

  • Fan Support

    Front: 2 x 120/ 2 x 140mm
    Top: 1x 120mm/ 1x 140mm (1 Aer F120 Case Version included)
    Rear: 1x 120mm (1 Aer F120 Case Version included)

  • Fan Specs

    Aer F120 (Case Version)
    Speed: 1200 +/- 200 RPM
    Airflow: 50.42 CFM
    Noise: 28 dBA
    Bearing: Rifle Bearing

  • Clearance

    Cable Management: 19-23mm
    GPU Clearance: Up to 381mm w/o front watercooler installed, up to 325mm with front watercooler installed
    CPU Cooler: Up to 165mm
    Front Radiator: 60mm
    Rear Radiator: 60mm
    Reservoir & Pump: Up to 180mm (Along cable bar), Up to 86mm (Along bottom panel)

  • Battery Info

    Not Required

  • Battery Material

    -

  • Battery Quantity

    -

  • Battery Type

    -

  • Dimensions (W x H x D)

    8.27 x 17.12 x 16.85" (210 x 435 x 428mm) (without feet)
    8.27 x 18.11 x 16.85" (210 x 460 x 428mm) (with feet)

  • Weight

    14.55 lbs (6.6kg)

  • UPC Code

    815671014771

About NZXT H510

FEATURED REVIEWS

But It

By NATHAN H.

Great. Solid. Real.

Clean look

By PAIGE D.

I just build my first computer with this case and I love it.

We've made our iconic H Series PC cases even better. Our new lineup still features the elements builders loved in the original H Series, including our patented cable management system, removable fan/radiator mounting brackets, and easy-to-use drive trays, alongside new updates like a front-panel USB-C connector supporting high-speed USB 3.1 Gen 2 devices, a tempered glass side panel that installs with a single thumbscrew, and an upgraded Smart Device V2 on the H510i.

NZXT H510 Features

  • With a USB 3.1 Gen2-compatible USB-C connector on the front panel, it's easier than ever to connect smartphones, high-speed external storage, or the latest peripherals to your PC
  • The clean, modern design, iconic cable management bar, and uninterrupted tempered-glass side panel showcase your stunning build
  • Cable management can often take more time than assembly. We designed a cable routing kit with pre-installed channels and straps, for intuitive and easy wiring
  • Two Aer F120mm fans are included for optimal internal airflow and the front panel and PSU intakes include removable filters. Includes a removeable bracket designed for radiators up to 280mm simplifies the installation of either closed-loop or custom-loop water cooling

Key Features

  • We designed a cable routing kit with pre-installed channels, straps, for intuitive and easy wiring

What's in the box:

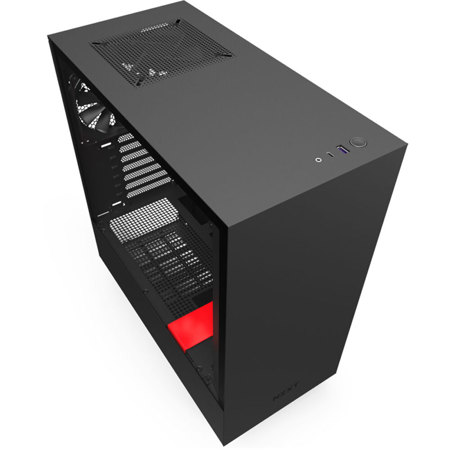

  • H510 Compact Mid-Tower Case with Tempered Glass (Matte Black/Red)
  • Installation Screws
  • 10x Cable Ties
  • 1x Headset Audio Jack Splitter (4 Pole to 3 Pole)
  • NZXT 2 Year Limited Warranty
