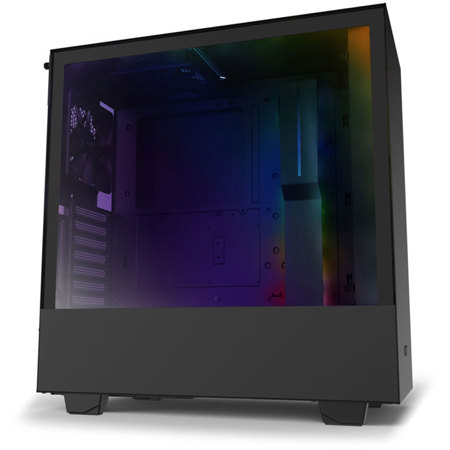

NZXT H510i Compact Mid-Tower Case with Lighting and Fan Control, Matte Black
See all NZXT items

NZXT H510i Compact Mid-Tower Case with Lighting and Fan Control, Matte Black

SKU: NZCAH510IB1

This item is no longer available.

Recommended Alternatives

NZXT H5 Flow RGB: Picture 1 regular
NZXT H5 Flow RGB Compact Tempered Glass ATX Mid-Tower Computer Case, Black
$129.99
NZXT H5 Flow: Picture 1 regular
NZXT H5 Flow Compact Tempered Glass ATX Mid-Tower Airflow Computer Case, White
$109.00
NZXT H5 Flow RGB: Picture 1 regular
NZXT H5 Flow RGB Compact Tempered Glass ATX Mid-Tower Computer Case, White
$139.00
NZXT H6 Flow: Picture 1 regular
NZXT H6 Flow Compact Dual-Chamber ATX Mid-Tower Airflow Computer Case, Black
$124.99
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

NZXT H510i Specifications

  • Color

    Matte Black

  • Material (s)

    SGCC Steel, Tempered Glass

  • Motherboard Support

    Mini-ITX, MicroATX, and ATX

  • Front I/O Ports

    1x USB 3.1 Gen 2 Type-C
    1x USB 3.1 Gen 1 Type-A
    1x Headset audio Jack

    Front I/O internal header
    1x USB 3.1 Gen 2 Internal Header
    1x USB 3.1 Gen 1 Internal Header
    1x USB 2.0 Internal Header
    1x HD Audio Header

  • Filters

    All Air Intakes

  • Smart Device V2

    3x Fan channels with Max 10W per channel output
    2x RGB LED port support up to 4x HUE 2 addressable LED strips or 5x Aer RGB or Aer RGB 2 fans
    Built-in noise detection module (Note: If a splitter is used, fan control is regulated depending on the fan connected to the 4-pin port. Do not use low-noise adapters.)

  • LED Strip(s)

    2 integrated addressable LED strip

  • Vertical GPU Mount

    2 Slots

  • Drive Bays

    2.5": 2+1
    3.5": 2+1

  • Expansion Slots

    7

  • Radiator Support

    Front: 2x 140 or 2x 120mm with Pull
    Rear: 1x 120mm

  • Clearance

    Cable Management: 19-23mm
    GPU Clearance: Up to 381mm w/o front watercooler installed, up to 325mm with front watercooler installed
    Vertical GPU Mount Clearance: 40.64mm
    CPU Cooler: Up to 165mm
    Front Radiator: 60mm
    Rear Radiator: 60mm
    Reservoir & Pump: Up to 180mm (Along cable bar), Up to 86mm (Along bottom panel)

  • Fan Support

    Front: 2 x 120/ 2 x 140mm
    Top: 1x 120mm/ 1x 140mm (1 Aer F120 Case Version included)
    Rear: 1x 120mm (1 Aer F120 Case Version included)

  • Fan Specs

    Aer F120 (Case Version)
    Speed: 1200 +/- 200 RPM
    Airflow: 50.42 CFM
    Noise: 28 dBA
    Bearing: Rifle Bearing

  • Dimensions

    8.27 x 17.12 x 16.85" (210 x 435 x 428mm) (without feet)
    8.27 x 18.11 x 16.85" (210 x 460 x 428 mm) (with feet)

  • Weight

    14.99 lbs (6.8kg)

  • UPC Code

    815671014719

About NZXT H510i

We've made our iconic H Series PC cases even better. Our new lineup still features the elements builders loved in the original H Series, including our patented cable management system, removable fan/radiator mounting brackets, and easy-to-use drive trays, alongside new updates like a front-panel USB-C connector supporting high-speed USB 3.1 Gen 2 devices, a tempered glass side panel that installs with a single thumbscrew, and an upgraded Smart Device V2 on the H510i.

NZXT H510i Features

  • The new Smart Device V2 includes a faster microprocessor for NZXT CAM-powered control of two HUE 2 RGB lighting channels and three fan channels that support either voltage regulated or PWM fans
  • With a USB 3.1 Gen2-compatible USB-C connector on the front panel, it's easier than ever to connect smartphones, high-speed external storage, or the latest peripherals to your PC
  • The clean, modern design, iconic cable management bar, and uninterrupted tempered-glass side panel showcase your stunning build
  • Use the intuitive NZXT CAM application to monitor and control your build, choosing from presets or custom controls for your RGB lighting and fans to create your dream PC
  • Cable management can often take more time than assembly. We designed a cable routing kit with pre-installed channels and straps, for intuitive and easy wiring
  • Two Aer F120mm fans are included for optimal internal airflow and the front panel and PSU intakes include removable filters. Includes a removeable bracket designed for radiators up to 280mm simplifies the installation of either closed-loop or custom-loop water cooling
  • Show off your graphic card with a built-in mounting bracket for installing your GPU vertically (PCIe riser card not included)

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • With a USB 3.1 Gen2-compatible USB-C connector on the front panel
  • We designed a cable routing kit with pre-installed channels and straps, for intuitive and easy wiring
  • Use the intuitive NZXT CAM application to monitor and control your build

What's in the box:

  • H510i Compact Mid-Tower Case with Lighting and Fan Control (Matte Black)
  • Installation Screws
  • 10x Cable Ties
  • 1x Headset Audio Jack Splitter (4 Pole to 3 Pole)
  • NZXT 2 Year Limited Warranty
