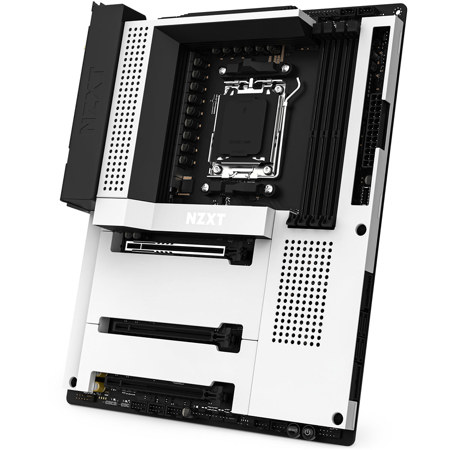

NZXT N7 B650E Wi-Fi DDR5 SATA 6Gbps ATX Gaming Motherboard, White
NZXT N7 B650E: Picture 1 thumbnail
NZXT N7 B650E: Picture 2 thumbnail
NZXT N7 B650E: Picture 3 thumbnail
NZXT N7 B650E: Picture 4 thumbnail
NZXT N7 B650E: Picture 5 thumbnail
NZXT N7 B650E: Picture 6 thumbnail
See all NZXT items

NZXT N7 B650E Wi-Fi DDR5 SATA 6Gbps ATX Gaming Motherboard, White

SKU: NZN7B65XTW1 MFR: N7-B65XT-W1
Be the first to review this itemAsk a Question
$319.99
OR
$54/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Unleash peak performance with this NZXT ATX motherboard, supporting AMD Ryzen 7000/8000/9000 series CPUs.
  • Experience lightning-fast data transfer with PCIe 5.0 on this gaming motherboard for NVMe SSD boot disks.
  • Enjoy seamless connectivity with integrated Wi-Fi 6E and Bluetooth V5.2 on this NZXT motherboard.
  • Create stunning builds with multiple NZXT RGB connectors and ARGB headers for personalized lighting.
  • This ATX motherboard supports DDR5 memory up to 7200+ MHz (OC), ensuring blazing-fast speeds for gaming.
  • Get robust and reliable performance with the Realtek ALC1220 Codec for crystal-clear audio quality.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$44.99

2 Year

$79.99

3 Year

$109.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

NZXT N7 B650E Specifications

CPU

CPU

Jump to...

  • Supports

    AMD Socket AM5 for AMD Ryzen 9000, 8000, and 7000 Series Processors

Chipset

Jump to...

  • AMD

    B650E

Memory

Jump to...

  • DIMM Slots

    4x, DDR5 only

  • Max Memory Support

    128GB

  • Memory Architecture

    Dual-Channel

  • OC Frequency

    DDR5 Non-ECC, Un-buffered Memory up to 7200+ (OC)

  • Extreme Memory Profile (XMP)

    Supported

  • Extended Profiles for Overclocking

    Supported

Expansion Slots

Jump to...

  • Expansion Slots

    1x PCIe 5.0 x16 slot (Supports NVMe SSD as boot disks)
    2x PCIe 4.0 x16 slots (Supports NVMe SSD as boot disks)

  • M.2 Socket (Key E)

    1x (supports Type 2230 Wi-Fi/BT PCIe Wi-Fi module)

Integrated Graphics

Jump to...

  • Integrated AMD RDNA 2 graphics

    Supported

  • HDMI 2.1 TMD Compatible

    1

  • HDR

    Supported

  • HDCP 2.3

    max. resolution up to 4K 60Hz

Storage

Jump to...

  • M.2

    Type 2242/2260/2280 (PCIe 5.0 x4 mode)
    Type 2242/2260/2280 (PCIe 4.0 x4 mode)
    Type 2242/2260/2280 (PCIe 4.0 x2 mode)

  • SATA 6Gb/s ports

    4x

  • RAID for SATA

    0/1/10

  • RAID for M.2 NVMe

    0/1/10

  • NVMe SSD as boot disks

    Supported

LAN

Jump to...

  • Realtek

    RTL8125BG 2.5G LAN

Wireless

Jump to...

  • 802.11ax Wi-Fi 6E Module

    Supported

  • Bluetooth

    V5.2

Audio

Jump to...

  • Realtek

    ALC1220 Codec

Rear I/O

Jump to...

  • Wireless antenna SMA connectors

    2x

  • HDMI port

    1x

  • USB 2.0

    2x

  • USB 3.2 Gen 2 Type-C port

    1x

  • USB 3.2 Gen 2 ports

    2x

  • USB 3.2 Gen 1 ports

    4x

  • Clear CMOS button

    1x

  • BIOS Flashback button

    1x

  • LAN (RJ45) port

    1x

  • Audio jacks

    5x

  • Optical S/PDIF Out port

    1x

Internal I/O

Jump to...

  • 24-pin ATX power connector

    1x

  • 8+4-pin ATX 12V power connector

    1x

  • 4-pin CPU_FAN connector

    1x

  • 4-pin AIO_PUMP connector

    1x

  • 4-pin SYS_FAN connectors

    5x

  • NZXT RGB LED connectors

    4x

  • 5V ARGB LED connector

    2x

  • USB 2.0 header

    3x (Up to 6 USB 2.0 ports)

  • USB 3.2 Gen1 header

    2x (Up to 4 USB 3.2 Gen 1 ports)

  • USB 3.2 Gen2x2 front panel header

    1x (For USB Type-C)

  • Front panel audio connector

    1x

  • Power button

    1x

  • Reset button

    1x

  • POST LEDs

    4x

General

Jump to...

  • Color

    White

  • System Requirements

    NZXT CAM software requires Microsoft Windows 11/10 operating system

  • Form Factor

    ATX

  • Certifications

    FCC, CE, WHQL, ErP/EuP Ready

Other

Jump to...

  • UPC Code

    810074842877

About NZXT N7 B650E

Leverage the full value of your AMD Ryzen 9000, 8000, and 7000 Series Processors with the AMD B650 chipset. The N7 B650E features upgraded compatibility as well as N7 favorites, such as digital RGB and fan control, Wi-Fi 6e, and more.

Maximum Control
Easily customize lighting and cooling modes via NZXT CAM, with access to six RGB lighting channels. Configure lights and fans from any manufacturer.

Finishing Touch
A white or black metal cover conceals the inner workings, blending seamlessly with your case. The heat fins have been expanded to cool the PCIe Gen 5 enabled NVMe drive slot.

Ready To Rock
Integrated Wi-Fi 6E, rear I/O shield, and clever port placement makes the build process easy-plenty of room on board for upgrades down the line.

Stunning Craftsmanship
Build your dream system with a full metal cover that blends aesthetically with black or white cases for a seamless backdrop for your components.

CPU and Socket
Supports AMD Socket AM5 for AMD Ryzen 9000, 8000, and 7000 Series Processors.

NZXT N7 B650E Features

  • 16+2+1 Power phase design with 90A Smart Power Stage
  • Seamless cover with integrated heat spreader
  • Digital RGB lighting control through CAM
  • Digital fan control for convenient fan profiles with seven independent fan channels

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Unleash peak performance with this NZXT ATX motherboard, supporting AMD Ryzen 7000/8000/9000 series CPUs.
  • Experience lightning-fast data transfer with PCIe 5.0 on this gaming motherboard for NVMe SSD boot disks.
  • Enjoy seamless connectivity with integrated Wi-Fi 6E and Bluetooth V5.2 on this NZXT motherboard.
  • Create stunning builds with multiple NZXT RGB connectors and ARGB headers for personalized lighting.
  • This ATX motherboard supports DDR5 memory up to 7200+ MHz (OC), ensuring blazing-fast speeds for gaming.
  • Get robust and reliable performance with the Realtek ALC1220 Codec for crystal-clear audio quality.

What's in the box:

  • NZXT N7 B650E Wi-Fi DDR5 SATA 6Gbps ATX Gaming Motherboard (White)
  • 4x SATA Cables
  • M.2 Screws
  • Wireless Antenna
  • NZXT 3 Year Limited Warranty
