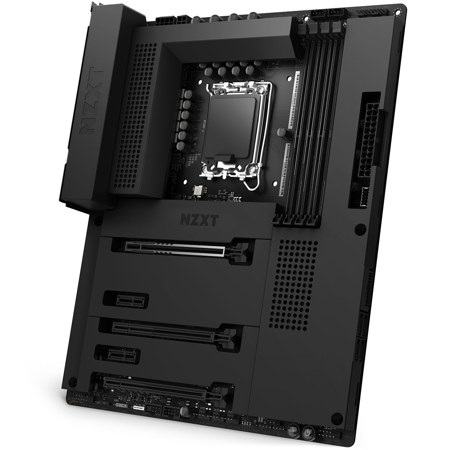

NZXT N7 Z690 Wi-Fi DDR4 LGA 1700 SATA 6Gbps ATX Motherboard, Black

SKU: NZN7Z69XTB1

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

NZXT N7 Z690 Specifications

CPU
  • Intel Core Processors

    Intel Socket LGA1700 for 12th Generation Processors

  • Intel Hybrid Technology

    Supported

  • Turbo Boost Max 3.0 Technology

    Supported

Chipset

Jump to...
  • Intel

    Z690

  • DIMM Slots

    4x (DDR4 Only)

  • Max Memory Support

    128GB

  • Memory Architecture

    Dual-Channel

  • OC Frequency

    5000+(O.C.)

  • Base Frequency

    3200 / 2933 / 2800 / 2666 / 2400 / 2133 MHz

  • Type

    Non-ECC, Un-buffered Memory

  • Intel XMP 2.0 Support

    Supported

Graphics

Jump to...
  • Integrated Graphics

    Intel Xe Graphics (11th Gen CPUs): HDMI 2.0
    UHD (10th Gen CPUs): HDMI 1.4b

  • HDMI Max Resolution

    4096x2160@60Hz

Multi-GPU Support

Jump to...
  • AMD 2-Way CrossFireX Technology

    Supported

Expansion Slots

Jump to...
  • PCIe x16

    3x (Single - PCIe_1: Gen 5 x16 mode / Dual - PCIe_1: Gen 5 x16; PCIe_3: Gen 4 x4 / Triple - PCIe_1: Gen 5 x16; PCIe_3: Gen 4 x4; PCIe_5: Gen 3 x4)

  • PCIe 3.0 x1

    2x

  • M.2 Socket (Key E)

    Supports Type 2230 Wi-Fi/BT Module, Intel CNVio

Storage (Chipset)

Jump to...
  • M.2_1 Type 2242/2260/2280

    1x (PCIe 4.0 x4 mode)

  • M.2_2 Type 2242/2260/2280/22110

    1x (PCIe 4.0 x4 mode)

  • M.2_3 Type 2242/2260/2280

    1x (PCIe 4.0 x4 & SATA mode)

  • SATA 6Gb/s

    4x

  • RAID 0/1/5/10 Support

    Supported

  • Intel Volume Management Device (VMD)

    Supported

  • Intel Optane Technology

    Supported

  • NVMe SSD as boot disks

    Supported

  • Realtek

    RTL8125BG 2.5G

Wireless

Jump to...
  • Intel Dual-Band Wireless

    AX210 Wi-Fi 6E

  • Protocol

    802.11 a/b/g/n/ac/ax

  • Frequency Bands

    2.4 / 5 / 6 GHz

  • MU-MIMO Support

    Supported

  • Bluetooth

    V5.2

  • Realtek

    ALC1220 Codec

  • Channels

    8-Channel High Definition Audio

  • Playback

    32-bit / 192kHz DAC

  • Capacitors

    Nichicon Fine Gold Series

Rear I/O

Jump to...
  • USB 3.2 Gen 2 (Type-C)

    1x

  • USB 3.2 Gen 2 (Type-A)

    2x

  • USB 3.2 Gen 1 (Type-A)

    3x

  • USB 2.0

    2x

  • HDMI 2.0

    1x

  • Wireless Antenna

    2x (2T2R)

  • LAN (RJ45) Port

    1x

  • 5.1-Channel Audio Jacks

    1x

  • Optical S/PDIF

    1x

  • BIOS Flashback Button

    1x

  • Clear CMOS Button

    1x

Internal I/O

Jump to...
  • USB 3.2 Gen 2 Header (Type-C)

    1x

  • USB 3.2 Gen 1 Header

    1x (Up to 2 ports)

  • USB 2.0 Header

    2x (Up to 4 ports)

  • Front Panel Audio

    1x

  • CPU_FAN Connector

    1x (Up to 24W)

  • AIO_PUMP Connector

    1x (Up to 24W)

  • SYS_FAN Connector

    5x (Up to 24W)

  • NZXT RGB LED Header

    2x

  • 5V ARGB Header

    1x

  • 12V RGB Header

    1x

  • 24-Pin EATX Power

    1x

  • 8-Pin ATX 12V Power

    1x

  • 4-Pin ATX 12V Power

    1x

  • Power Button

    1x

  • Reset Button

    1x

  • POST LEDs

    4x

General

Jump to...
  • Color

    Black

  • Operating System

    Windows 11/10 64-bit

  • Form Factor

    ATX

  • UPC Code

    810074840194

About NZXT N7 Z690

For enthusiasts seeking a high-performance foundation for their next PC build, the NZXT N7 Z690 Wi-Fi DDR4 LGA 1700 SATA 6Gbps ATX Motherboard in sleek black offers a visually seamless backdrop. Designed to harness the full potential of the latest Intel Z690 chipset, this motherboard supports Intel's 12th generation Alder Lake processors, ensuring robust performance and future-proofing your system. With integrated Wi-Fi capabilities, it provides reliable wireless connectivity, while the support for DDR4 memory ensures fast data processing and multitasking efficiency. The motherboard also features multiple SATA 6Gbps ports for high-speed data transfer and ample storage options. Its ATX form factor allows for compatibility with a wide range of cases, making it a versatile choice for custom builds. Whether you're a gamer, content creator, or tech enthusiast, the NZXT N7 Z690 motherboard delivers the advanced features and sleek design needed to elevate your computing experience.

NZXT N7 Z690 Features

  • All-metal cover completes the look of your build
  • Wi-Fi 6E connectivity with updated specs for Z690 chipset
  • Digital RGB lighting control through NZXT CAM
  • Digital fan control with profiles within NZXT CAM for seven independent fan channels
  • Integrated rear I/O shield and efficient layout ensures optimal setup with upgradeability

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Unleash peak performance with the NZXT N7 Z690 motherboard, supporting 12th Gen Intel CPUs.
  • Experience lightning-fast data transfer speeds with PCIe 4.0 on this reliable ATX motherboard.
  • Enjoy seamless connectivity with integrated Wi-Fi 6E and 2.5G LAN for gaming and streaming.
  • Create stunning visuals with HDMI 2.0, supporting resolutions up to 4096x2160@60Hz for immersive experiences.
  • Customize your build with NZXT RGB headers and ARGB support for a personalized gaming rig.
  • Build a robust system with multiple M.2 slots and SATA 6Gbps ports for ample storage options.

What's in the box:

  • NZXT N7 Z690 Wi-Fi DDR4 LGA 1700 SATA 6Gbps ATX Motherboard (Black)
  • 2x SATA Cable (90 degree)
  • 2x SATA Cable (180 degree)
  • 2x Wireless Antenna
  • 2x M.2 Screws
  • User Manual
  • NZXT 3 Year Limited Warranty
