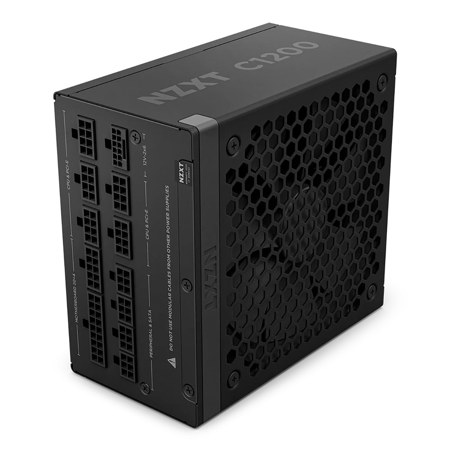

NZXT C1200 Gold 1200W 80+ Gold Certified Fully Modular ATX 3.1 Power Supply Unit, Black

SKU: NZPA2G2BBUS MFR: PA-2G2BB-US
Earn VIP Reward Points

Key Features

  • Power your high-end gaming rig with 1200W for stable, reliable performance.
  • Achieve superior energy savings with 80+ Gold efficiency, reducing your electricity bill.
  • Enjoy a clutter-free build thanks to fully modular cables for easy installation and management.
  • Experience next-gen power delivery with ATX 3.1 compliance, ready for future upgrades.
  • Trust in NZXT's renowned reliability with a 10-year warranty for peace of mind.
  • Keep your system cool and quiet with an optimized fan design for efficient thermal control.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

NZXT C1200 Gold ATX 3.1 Specifications

General

General

Jump to...
  • Color

    Black

  • Material

    Steel, PCB and Plastic

  • Compatible Devices

    Desktop PC

  • Connector Type

    ATX

  • Output Wattage

    1200 Watts

  • Form Factor

    ATX

  • Wattage

    1200

  • Cooling Method

    Air

  • Compliance Standard

    ATX12V v3.1 / EPS12V v2.92

  • Regulation & Certification

    FCC, Canada, CE, CB(IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65

Output Connectors

Jump to...
  • 24-pin ATX Power Cable

    1x

  • 4+4-pin CPU Power Cable

    1x

  • 8-pin CPU Power Cable

    1x

  • 6+2-pin PCIe Power Cable

    3x

  • 16-pin (12+4) 12V-2x6 PCIe Cable

    1x

  • SATA Cable

    12x

  • Peripherals Cable

    4x

  • 24-pin ATX Power Cable

    600mm with nylon sleeving

  • 4+4-pin CPU Power Cable

    700mm with nylon sleeving

  • 8-pin CPU Power Cable

    700mm with nylon sleeving

  • 6+2-pin PCIe Power Cable

    650mm with nylon sleeving

  • 16-pin (12+4) 12V-2x6 PCIe Cable

    650mm with nylon sleeving

  • SATA Cable

    500 + 150mm

  • Peripherals Cable

    500 + 150mm

AC Input Rating

Jump to...
  • 100 - 240Vac

    14A 50Hz-60Hz

  • 200 - 240Vac

    7A 50Hz-60Hz (China & South Korea)

DC Output Rating

Jump to...
  • 3.3V / +5V

    22A (120W)

  • 12V

    100A (1200W)

  • 5Vsb

    3A (15W)

  • Total

    1200W

Energy Efficiency

Jump to...
  • Rating

    80 Plus Gold

  • 10% loading

    85% @115Vac

  • 20% loading

    90.1% @115Vac

  • 50% loading

    91.6% @115Vac

  • 100% loading

    88.7% @115Vac

Electrical

Jump to...
  • PF Correction

    Active @0.99

  • Protections

    OVP / UVP / SCP / OTP / OPP / OCP

  • Speed

    2300 +/- 10% RPM

  • Airflow

    93.02 CFM (Min.)

  • Noise

    44.5 dBA max

  • Bearing

    Fluid Dynamic Bearing (FDB)

Operation

Jump to...
  • MTBF

    100,000 hours

  • Temperature

    32 - 122 Degree F (0 - 50 Degree C)

Physical

Jump to...
  • Dimensions

    6.3 x 5.91 x 3.39" (160.02 x 150.11 x 86.10mm)
    Fan: 5.31 x 5.31 x 0.98" (135 x 135 x 25mm)

  • UPC Code

    810074844697

About NZXT C1200 Gold ATX 3.1

Designed for maximum performance with minimal noise, NZXT C Series Gold ATX 3.1 PSUs are ready to fuel the demands of top-tier GPUs and CPUs.

NZXT Gold ATX 3.1 PSU
ATX 3.1 compliant PSUs featuring high efficiency, low noise, and premium construction.

ATX 3.1 Compliant
ATX 3.1 powers high-performance components with stable delivery and improved efficiency.

RTX 50 Series Ready
12V-2x6 cable delivers up to 600 watts of power to NVIDIA GeForce RTX 50 Series GPUs.

Certified for High Efficiency & Low Noise
80 PLUS Gold Efficiency, Cybenetics Gold Efficiency, and Cybenetics A- Noise Level Ratings.

Silence is Golden
135mm FDB fan with Zero Fan Mode stops spinning under 50% load for total silence.

100% Japanese Capacitors
Improved hold-up time and reduced ripple noise for stable, reliable power delivery.

Fully Modular
Only connect the cables needed to keep a tidy build. Full cable set included.

Space-Saving Size
Compact form factor frees up room for cable management and improved airflow.

NZXT C1200 Gold ATX 3.1 Features

  • Compliant with the ATX 3.1 standard to fuel high-performance PC components with stability, efficiency, and power spike resistance
  • Durable, heat-resistant 12V-2x6 connector pumps up to 600 watts to NVIDIA GeForce RTX 50 Series graphics cards
  • 135mm fluid dynamic bearing fan with Zero Fan Mode is completely silent when under 50% load
  • 100% premium Japanese capacitors improve hold-up time and minimal ripple noise, ensuring reliable and stable power delivery
  • Fully modular design allows for only connecting essential cables, reducing clutter for better airflow and a neater build
  • Compact form factor frees up valuable room for cable management and more case airflow
  • Thanks to high-quality construction and rigorous product testing

Warranty Information

This product has a limited warranty of 120 months.

Key Features

  • Power your high-end gaming rig with 1200W for stable, reliable performance.
  • Achieve superior energy savings with 80+ Gold efficiency, reducing your electricity bill.
  • Enjoy a clutter-free build thanks to fully modular cables for easy installation and management.
  • Experience next-gen power delivery with ATX 3.1 compliance, ready for future upgrades.
  • Trust in NZXT's renowned reliability with a 10-year warranty for peace of mind.
  • Keep your system cool and quiet with an optimized fan design for efficient thermal control.

What's in the box:

  • NZXT C1200 Gold 1200W 80+ Gold Certified Fully Modular ATX 3.1 Power Supply Unit (Black)
  • 24-Pin ATX Power Cable
  • 4+4-Pin CPU Power Cables
  • 8-Pin CPU Power Cable
  • 3x 6+2-pin PCIe Power Cable
  • 16-pin (12+4) 12V-2x6 PCIe Cable
  • 3x SATA Cables
  • Peripherals Cables
  • 4x 6-32 Screws
  • AC Power Cord
  • User Manual
  • NZXT 10 Year Limited Warranty
