Review Summary
Black
750W
ATX
3.1
Gold
Platinum
A++
Fully modular
221 Degree F (105 Degree C) performance capacitors
Individually embossed with cable comb
Yes
China
1x 600mm
1x 700mm
1x 700mm
2x 650mm
1x 650mm (300W)
8x 500 + 100mm
3x 500 + 100mm
10 - 5 A, 50 - 60Hz
5 A, 50 - 60Hz
20 A (120W)
62.5 A (750W)
3 A (15W)
750W
Gold
87.9% @ 115 V
91.63% @ 115 V
92.11% @ 115 V
89.53% @ 115 V
5.31" (135mm)
PWM
2,300 +/- 10% RPM
103.36 CFM
40.5 dBA
Fluid dynamic bearing
100,000 hours
32 Degree F to 122 Degree F (0 Degree C to 50 Degree C) (Continuous Full Load)
Active @ 0.99
OVP (Over Voltage), UVP (Under Voltage), SCP (Short Circuit), OTP (Over Temperature), OPP (Over Power), OCP (Over Current)
ATX12V v3.1 / EPS12V v2.92
CE, UKCA, FCC, IC, BSMI, CB (IEC 62368-1 Ed. 3), RCM, KC
5.91 x 3.39 x 5.91" (150 x 86 x 150mm)
810074849111

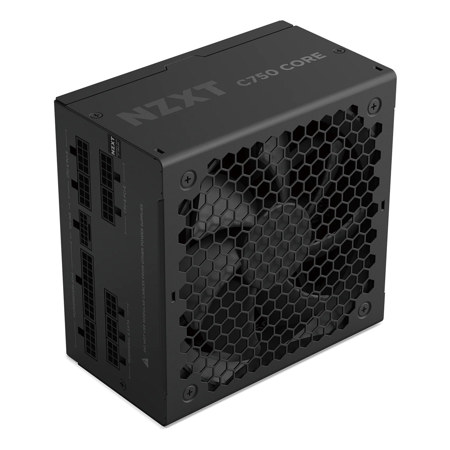

The NZXT Gold Core is an ATX 3.1, fully modular PSU with 80 PLUS Gold and Cybenetics Platinum efficiency, A++ noise rating, and a 12V-2x6 PCIe 5.1 connector. Built for modern GPUs, it delivers clean, quiet power with easy cable management for performance PCs.
Essential Power for Modern Builds
NZXT Gold Core delivers 80 PLUS Gold efficiency with full ATX 3.1 support for stable performance. Its modular design keeps cable management easy and your build clean, with broad compatibility across cases and components.
ATX 3.1 & PCIe 5.1 Compatibility
Supports modern GPUs with a 12V-2x6 connector and dual-color housing that lets you see when it's fully plugged in. Includes up to two 8-pin PCIe cables for legacy support - offering flexibility across a wide range of NVIDIA and AMD builds.
Ready for Any GPU
Supports the latest GPUs from NVIDIA and AMD with a 12V-2x6 connector, plus two 8-pin PCIe cables for legacy cards. Whether you're upgrading or building new, it's ready for your next graphics card.
Quiet When it Counts
135 mm fluid dynamic bearing fan stays silent under light loads with Zero RPM mode-automatically stopping the fan when cooling isn't needed.
Stable Under Pressure
105 Degree C-rated capacitors deliver steady, reliable power-even under heavy loads.
Fully Modular
Embossed cables with included combs help keep your build and cables clean.
Sized for Easy Builds
150 mm length fits easily in most PC cases, helping keep your build clean and straightforward.
Peace of Mind
Includes overcurrent, overvoltage, and shortcircuit protection
