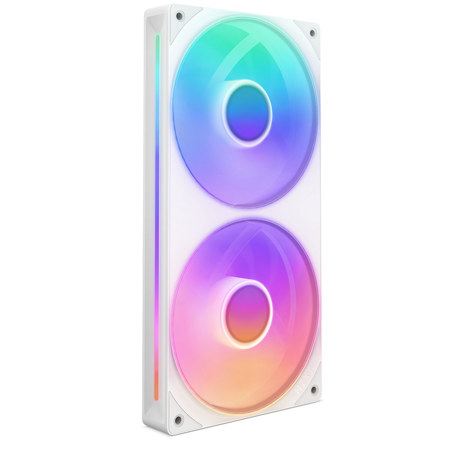

NZXT F Series Single-Frame RGB Core Fan Unit 240mm (2x 120mm Fans) White

SKU: NZRFU24HFWH MFR: RF-U24HF-W1
$44.99
Earn VIP Reward Points

Key Features

  • Seamless integration with multiple fans for superior cooling and whisper-quiet performance
  • All-in-one single-frame design simplifies installation and lighting control
  • Versatile connectivity with NZXT controller or 5V ARGB motherboard header
  • Advanced blade design for enhanced static pressure and superior airflow
  • Fluid dynamic bearings ensure low noise, high stability, and long lifespan
  • Striking RGB visuals with 8 aRGB LEDs per fan hub for vibrant lighting effects
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$3.99

2 Year

$5.99

3 Year

$8.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

NZXT F Series Single-Frame RGB Core Fan Unit Specifications

  • Available Colors

    Black, White

  • Available Fan Sizes

    F240: 240mm, F280: 280mm, F360: 360mm

  • Material

    Plastic, Rubber, PCB

  • Speed

    F240: 500 - 2,400 +/- 250 RPM per fan
    F280: 500 - 2,000 +/- 200 RPM per fan
    F360: 500 - 2,400 +/- 250 RPM per fan

  • Airflow

    F240: 75.12 CFM per fan
    F280: 98.61 CFM per fan
    F360: 75.12 CFM per fan

  • Static Pressure

    F240: 3.3mm H2O per fan
    F280: 3.2mm H2O per fan
    F360: 3.3mm H2O per fan

  • Noise

    F240: 30.00 dBA per fan
    F280: 34.5 dBA per fan
    F360: 30.00 dBA per fan

  • Power Consumption

    F240: 12V DC, 0.56A, 6.72W / 5V DC, 0.45A, 2.25W
    F280: 12V DC, 0.59A, 7.08W / 5V DC, 0.45A, 2.25W
    F360: 12V DC, 0.79A, 9.48W / 5V DC, 0.81A, 4.05W

  • Bearing

    Fluid Dynamic Bearing

  • Output LED

    8 LEDs per Fan

  • Connector

    8-pin for PWM & RGB

  • Cable Length

    1x 23.62" (600mm)

  • Life

    60,000 Hours

  • Splitter Cable Connections

    4-pin PWM Fan Cable (1x 300mm) / 5V RGB & 4-pin NZXT RGB Cable (1x 100mm)

  • Dimensions (H x W x D)

    F240: 9.45 x 4.72 x 1.02" (240 x 120 x 26mm)
    F280: 11.02 x 5.51 x 1.02" (280 x 140 x 26mm)
    F360: 14.17 x 4.72 x 1.02" (360 x 120 x 26mm)

  • UPC Code

    810074844482

About NZXT F Series Single-Frame RGB Core Fan Unit

For those seeking a high-performance cooling solution with stunning aesthetics, the NZXT F Series Single-Frame RGB Core Fan Unit is an ideal choice. This innovative fan unit is designed to seamlessly integrate multiple fans, ensuring effortless installation while delivering superior cooling performance and whisper-quiet operation.

The all-in-one design of the single-frame unit simplifies the installation process, setup, and lighting control, making it a breeze to enhance your system's cooling capabilities. With versatile connectivity options, you can easily connect a single cable to an NZXT controller (sold separately) for comprehensive lighting and speed control via the intuitive NZXT CAM software. Alternatively, the included splitter cable allows you to connect to any motherboard's 5V ARGB header, providing flexibility in setup.

Engineered for optimal performance, the fan's blade design enhances static pressure, effectively pushing air through tight spaces to ensure superior airflow. The inclusion of fluid dynamic bearings guarantees low noise levels, high rotational stability, and an impressive 60,000-hour fan lifespan, making it a reliable choice for long-term use.

The NZXT F Series fan unit features radiant RGB lighting, with 8 aRGB LEDs per fan hub that illuminate through semi-translucent blades and frame side windows, creating striking visual effects. The PWM control dynamically adjusts fan speeds based on your PC's temperatures, optimizing efficiency and performance.

Silent operation is achieved through anti-vibration rubber corners that dampen noise, while the Zero RPM Mode shuts fans off during light loads, further reducing sound output. With the NZXT CAM software, you can do more by controlling fan speeds, personalizing lighting effects, and syncing with other NZXT products, offering a fully customizable and cohesive system experience.

NZXT F Series Single-Frame RGB Core Fan Unit Features

  • Single-frame unit with integrated fans streamlines installation, setup, and lighting control-no need to connect individual fans
  • Simply connect a single cable to an NZXT controller (sold separately) for lighting and speed control via NZXT CAM software. Or, connect to any motherboard's 5V ARGB header using the included splitter cable
  • Fan blade design boosts static pressure to push air through tight spaces while ensuring optimal airflow. Suitable for both intake and exhaust
  • Fluid dynamic bearings ensure quiet, stable operation across an exceptional 60,000 hour lifespan
  • Eight individually-addressable RGB LEDs per fan hub are diffused through semi-translucent blades for brilliantly colorful visuals
  • PWM-controlled fans dynamically adjust spinning speeds based on PC temperatures for optimal efficiency and reduced noise
  • Anti-vibration rubber corners effectively eliminate noise caused by vibrations for hushed performance at any speed
  • Control lighting and fan speeds via CAM software when connected to an NZXT controller (sold separately)

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Seamless integration with multiple fans for superior cooling and whisper-quiet performance
  • All-in-one single-frame design simplifies installation and lighting control
  • Versatile connectivity with NZXT controller or 5V ARGB motherboard header
  • Advanced blade design for enhanced static pressure and superior airflow
  • Fluid dynamic bearings ensure low noise, high stability, and long lifespan
  • Striking RGB visuals with 8 aRGB LEDs per fan hub for vibrant lighting effects

What's in the box:

  • NZXT F Series Single-Frame RGB Core Fan Unit
  • 4x Mounting Screws
  • Splitter Cable
  • (Controller Not Included)
  • NZXT 5 Year Limited Warranty
