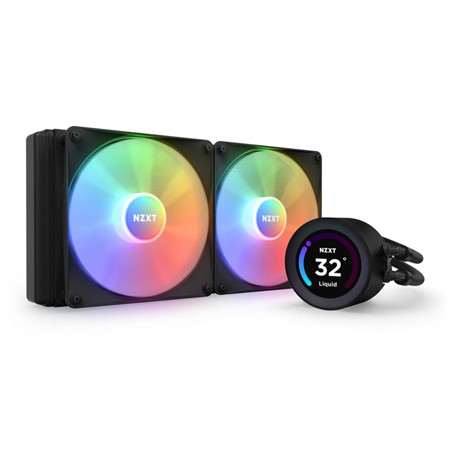

NZXT Kraken Elite RGB All-In-One Liquid CPU Cooler with LCD Display
See all NZXT items

NZXT Kraken Elite RGB All-In-One Liquid CPU Cooler with LCD Display

SKU: NZRLKRE

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Shopper : Why Did You Choose This?JOSEPH B : cool
Shopper : Why Did You Choose This?VICTORIA B : I prefer the rgb in this cooler compared to the new release
Shopper : Why Did You Choose This?MAXIMOS M : need it for my pcMekhi G : The color

Reviews about this item

Review Summary

NZXT Kraken Elite RGB Specifications

Water Block

Water Block

Jump to...

  • Material

    Block: Copper
    Housing: Plastic

Pump

Jump to...

  • Motor Speed

    800 - 2,800 +/- 300 RPM

  • Power

    12V DC, 0.3A

Radiator

Jump to...

  • Material

    Aluminum

Tube

Jump to...

  • Material

    Ultra-Low Evaporation Rubber with Nylon Braided Sleeve

  • Length

    15.74" (400mm)

Cap

Jump to...

  • Material

    Aluminum, Plastic

  • Display Orientation

    Software Adjustable Default, +90, +180, and -90 Degrees

  • Display Panel Active Area

    2.36" (60mm) Diameter

  • Display Color

    24-bit True Color LCD

  • Display Resolution

    640 x 640 px

  • Display Brightness

    690 cd/sq. m

  • Display Panel Type

    TFT-LCD (Wide Viewing Angle)

Fan

Jump to...

  • Speed

    240mm / 360mm: 500-1,800 +/- 180 RPM
    280mm: 500-1,500 +/- 150 RPM

  • Airflow

    240mm / 360mm: 78.86 CFM
    280mm: 90.79 CFM

  • Air Pressure

    240mm / 360mm: 2.75mm-H2O
    280mm: 3.22mm-H2O

  • Noise

    240mm / 360mm: 33.88 dBA
    280mm: 34.48 dBA

  • Bearing

    Fluid Dynamic Bearing

  • Power Consumption

    240mm / 360mm: 12V DC, 0.2 A, 2.4 W
    280mm: 12V DC, 0.24 A, 2.88 W

  • Fan Connector

    4-Pin PWM

  • Life

    60,000 Hours / 6 Years

RGB Controller

Jump to...

  • Mounting

    Magnet and 3M Dual Lock

  • Connection Cables

    1x USB 2.0 Internal Connector 1x SATA Power Cable

  • Input Connector

    12V DC / 2.6A

  • RGB Lighting Channels

    3

  • Output Channel Voltage

    5V DC

  • NZXT RGB Channel Output LED Qty.

    Up to 40 LEDs Per Channel and Up to 120 LEDs Combined Total for The Total 3 Channels

Compatibility

Jump to...

  • Compatible Socket & CPU

    Intel: Intel Socket LGA 1700, 1200/115X Intel Core i9 / Core i7 / Core i5 / Core i3 / Pentium / Celeron
    AMD: AMD Socket AM5, AM4, sTRX4, TR4 (Thread ripper Bracket Not Included) AMD Ryzen 9 / Ryzen 7 / Ryzen 5 / Ryzen 3 / Thread ripper

Physical

Jump to...

  • Available Colors

    Matte Black, Matte White

  • Available Sizes

    240mm, 280mm, 360mm

  • Dimensions

    Water Block (Dia. x H): 3.22 x 2.34" (81.9 x 59.5mm)
    Radiator:
    240mm: 4.84 x 10.82 x 1.18" (123 x 275 x 30mm)
    280mm: 5.62 x 12.40 x 1.18" (143 x 315 x 30mm)
    360mm: 4.76 x 15.51 x 1.06" (121 x 394 x 27mm)
    Fans:
    240mm / 360mm: 4.72 x 4.72 x 1.02" (120 x 120 x 26mm)
    280mm: 5.51 x 5.51 x 1.02" (140 x 140 x 26mm)
    RGB Controller: 2.48 x 2.09 x 0.50" (63.2 x 53.2 x 12.8mm)

  • Weight

    RGB Controller: 1.86 oz (52.8g)

Other

Jump to...

  • UPC Code

    810074842259

About NZXT Kraken Elite RGB

Get high-performance cooling, display a favorite animated GIF or static image, monitor real-time PC performance metrics, see music that's currently playing, stream browser content and more with NZXT CAM software.

Wide-Angle LCD Display
2.36" diameter LCD display with a wide viewing angle, 640x640 resolution, 60 Hz refresh rate, and ultra-high brightness.

High-Performance Pump
The powerful Asetek pump circulates coolant efficiently and quietly.

Colorful Cooling
RGB Core Fans with fluid dynamic bearings provide powerful cooling and vivid RGB lighting.

Includes
• 2x F120P RGB Core Fan (Kraken Elite 240 RGB)
• 2x F140P RGB Core Fan (Kraken Elite 280 RGB)
• 3x F120P RGB Core Fan (Kraken Elite 360 RGB)

Installation Made Easy
• A single breakout cable from pump to motherboard streamlines installation
• Includes compatible mounting brackets for Intel (LGA 1700/1200/115X) and AMD processors (AM4, AM5)
• Pre-applied NZXT High-Performance Thermal Paste
• Extended rubber tubing with durable nylon-braided sleeves for worry-free handling

NZXT Kraken Elite RGB Features

  • 2.36" diameter wide-angle LCD display with 640x640 resolution and 60 Hz refresh rate provides a sharp image from any viewing angle
  • Screen supports the display of custom images, animated GIFs, and CAM system info with adjustable orientation
  • Powerful Asetek pump provides optimal cooling and up to 2,800 RPM whisper-quiet operation
  • Includes F140/F120 RGB Core fans
  • Includes RGB Controller, RGB Fans, & USB Y-Cable
  • Single breakout cable simplifies installation
  • Rubber tubing is reinforced with nylon-braided sleeves to prevent leaks
  • Control custom screen content, RGB, pump speed, and zero-noise fan curves with NZXT CAM software

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience superior CPU cooling with the NZXT Kraken Elite RGB liquid cooler.
  • Customize your rig with a vibrant 2.36" LCD display showing real-time PC stats.
  • Enjoy peak performance with fluid dynamic bearings for reliable, long-lasting cooling.
  • Achieve optimal airflow and pressure with high-performance RGB Core fans.
  • Easily control RGB lighting with the included controller, supporting up to 120 LEDs.
  • Benefit from broad compatibility across Intel and AMD sockets for easy setup.

What's in the box:

  • NZXT Kraken Elite RGB All-In-One Liquid CPU Cooler with LCD Display
  • RGB Core Fan
  • RGB Controller
  • Breakout Cable Set
  • Mounting Hardware
  • NZXT 6 Year Limited Warranty
