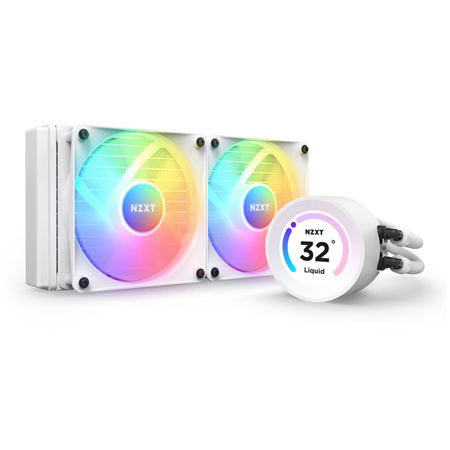

NZXT Kraken Elite RGB All-In-One Liquid CPU Cooler with LCD Display
See all NZXT items

NZXT Kraken Elite RGB All-In-One Liquid CPU Cooler with LCD Display

SKU: NZRLKRE
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the purpose of the LCD display on the Kraken Elite RGB All-In-One Liquid CPU Cooler?

The LCD display on the Kraken Elite RGB All-In-One Liquid CPU Cooler allows you to monitor real-time PC performance metrics, view your favorite animated GIFs or static images, and even see the music that's currently playing or stream browser content, all through the NZXT CAM software.

What makes the cooling of the Kraken Elite RGB All-In-One Liquid CPU Cooler efficient?

The Kraken Elite RGB All-In-One Liquid CPU Cooler features a high-performance Asetek pump that circulates coolant efficiently and quietly. Additionally, it comes with RGB Core Fans with fluid dynamic bearings that provide powerful cooling.

How easy is it to install the Kraken Elite RGB All-In-One Liquid CPU Cooler?

Installing the Kraken Elite RGB All-In-One Liquid CPU Cooler is made easy with a single breakout cable from the pump to the motherboard. The package also includes compatible mounting brackets for both Intel and AMD processors, pre-applied NZXT High-Performance Thermal Paste, and extended rubber tubing with durable nylon-braided sleeves for worry-free handling.

Can the RGB lighting on the Kraken Elite RGB All-In-One Liquid CPU Cooler be customized?

Yes, the RGB lighting on the Kraken Elite RGB All-In-One Liquid CPU Cooler can be customized to match your system or personal preferences.

Shopper : Why Did You Choose This?JOSEPH B : cool
Shopper : Why Did You Choose This?VICTORIA B : I prefer the rgb in this cooler compared to the new release
Shopper : Why Did You Choose This?MAXIMOS M : need it for my pcMekhi G : The color

Reviews about this item

Review Summary

NZXT Kraken Elite RGB Specifications

Water Block

Water Block

Jump to...

  • Material

    Block: Copper
    Housing: Plastic

Pump

Jump to...

  • Motor Speed

    800 - 2,800 +/- 300 RPM

  • Power

    12V DC, 0.3A

Radiator

Jump to...

  • Material

    Aluminum

Tube

Jump to...

  • Material

    Ultra-Low Evaporation Rubber with Nylon Braided Sleeve

  • Length

    15.74" (400mm)

Cap

Jump to...

  • Material

    Aluminum, Plastic

  • Display Orientation

    Software Adjustable Default, +90, +180, and -90 Degrees

  • Display Panel Active Area

    2.36" (60mm) Diameter

  • Display Color

    24-bit True Color LCD

  • Display Resolution

    640 x 640 px

  • Display Brightness

    690 cd/sq. m

  • Display Panel Type

    TFT-LCD (Wide Viewing Angle)

Fan

Jump to...

  • Speed

    240mm / 360mm: 500-1,800 +/- 180 RPM
    280mm: 500-1,500 +/- 150 RPM

  • Airflow

    240mm / 360mm: 78.86 CFM
    280mm: 90.79 CFM

  • Air Pressure

    240mm / 360mm: 2.75mm-H2O
    280mm: 3.22mm-H2O

  • Noise

    240mm / 360mm: 33.88 dBA
    280mm: 34.48 dBA

  • Bearing

    Fluid Dynamic Bearing

  • Power Consumption

    240mm / 360mm: 12V DC, 0.2 A, 2.4 W
    280mm: 12V DC, 0.24 A, 2.88 W

  • Fan Connector

    4-Pin PWM

  • Life

    60,000 Hours / 6 Years

RGB Controller

Jump to...

  • Mounting

    Magnet and 3M Dual Lock

  • Connection Cables

    1x USB 2.0 Internal Connector 1x SATA Power Cable

  • Input Connector

    12V DC / 2.6A

  • RGB Lighting Channels

    3

  • Output Channel Voltage

    5V DC

  • NZXT RGB Channel Output LED Qty.

    Up to 40 LEDs Per Channel and Up to 120 LEDs Combined Total for The Total 3 Channels

Compatibility

Jump to...

  • Compatible Socket & CPU

    Intel: Intel Socket LGA 1700, 1200/115X Intel Core i9 / Core i7 / Core i5 / Core i3 / Pentium / Celeron
    AMD: AMD Socket AM5, AM4, sTRX4, TR4 (Thread ripper Bracket Not Included) AMD Ryzen 9 / Ryzen 7 / Ryzen 5 / Ryzen 3 / Thread ripper

Physical

Jump to...

  • Available Colors

    Matte Black, Matte White

  • Available Sizes

    240mm, 280mm, 360mm

  • Dimensions

    Water Block (Dia. x H): 3.22 x 2.34" (81.9 x 59.5mm)
    Radiator:
    240mm: 4.84 x 10.82 x 1.18" (123 x 275 x 30mm)
    280mm: 5.62 x 12.40 x 1.18" (143 x 315 x 30mm)
    360mm: 4.76 x 15.51 x 1.06" (121 x 394 x 27mm)
    Fans:
    240mm / 360mm: 4.72 x 4.72 x 1.02" (120 x 120 x 26mm)
    280mm: 5.51 x 5.51 x 1.02" (140 x 140 x 26mm)
    RGB Controller: 2.48 x 2.09 x 0.50" (63.2 x 53.2 x 12.8mm)

  • Weight

    RGB Controller: 1.86 oz (52.8g)

About NZXT Kraken Elite RGB

Get high-performance cooling, display a favorite animated GIF or static image, monitor real-time PC performance metrics, see music that's currently playing, stream browser content and more with NZXT CAM software.

Wide-Angle LCD Display
2.36" diameter LCD display with a wide viewing angle, 640x640 resolution, 60 Hz refresh rate, and ultra-high brightness.

High-Performance Pump
The powerful Asetek pump circulates coolant efficiently and quietly.

Colorful Cooling
RGB Core Fans with fluid dynamic bearings provide powerful cooling and vivid RGB lighting.

Includes
• 2x F120P RGB Core Fan (Kraken Elite 240 RGB)
• 2x F140P RGB Core Fan (Kraken Elite 280 RGB)
• 3x F120P RGB Core Fan (Kraken Elite 360 RGB)

Installation Made Easy
• A single breakout cable from pump to motherboard streamlines installation
• Includes compatible mounting brackets for Intel (LGA 1700/1200/115X) and AMD processors (AM4, AM5)
• Pre-applied NZXT High-Performance Thermal Paste
• Extended rubber tubing with durable nylon-braided sleeves for worry-free handling

NZXT Kraken Elite RGB Features

  • 2.36" diameter wide-angle LCD display with 640x640 resolution and 60 Hz refresh rate provides a sharp image from any viewing angle
  • Screen supports the display of custom images, animated GIFs, and CAM system info with adjustable orientation
  • Powerful Asetek pump provides optimal cooling and up to 2,800 RPM whisper-quiet operation
  • Includes F140/F120 RGB Core fans
  • Includes RGB Controller, RGB Fans, & USB Y-Cable
  • Single breakout cable simplifies installation
  • Rubber tubing is reinforced with nylon-braided sleeves to prevent leaks
  • Control custom screen content, RGB, pump speed, and zero-noise fan curves with NZXT CAM software

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience superior CPU cooling with the NZXT Kraken Elite RGB liquid cooler.
  • Customize your rig with a vibrant 2.36" LCD display showing real-time PC stats.
  • Enjoy peak performance with fluid dynamic bearings for reliable, long-lasting cooling.
  • Achieve optimal airflow and pressure with high-performance RGB Core fans.
  • Easily control RGB lighting with the included controller, supporting up to 120 LEDs.
  • Benefit from broad compatibility across Intel and AMD sockets for easy setup.

What's in the box:

  • NZXT Kraken Elite RGB All-In-One Liquid CPU Cooler with LCD Display
  • RGB Core Fan
  • RGB Controller
  • Breakout Cable Set
  • Mounting Hardware
  • NZXT 6 Year Limited Warranty
