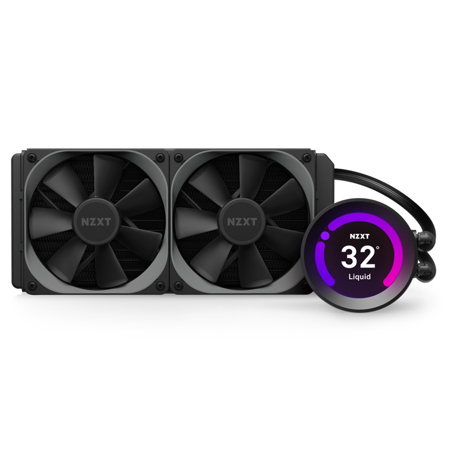

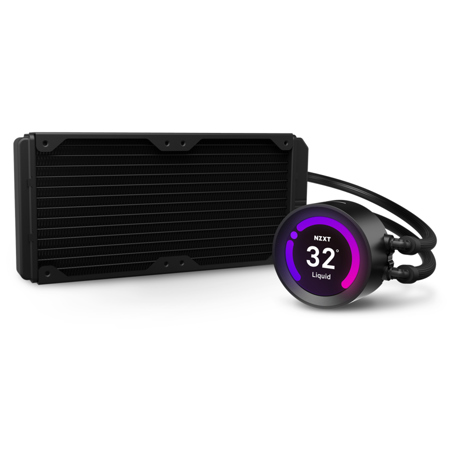

NZXT Kraken Z53 240mm Liquid Cooler with LCD Display
See all NZXT items

NZXT Kraken Z53 240mm Liquid Cooler with LCD Display

SKU: NZRLKRZ5301

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?ALEX C : Gif feature and how well it performscolton b : looks niceSANDRA H : best buy for the money

Reviews about this item

Review Summary

2021-09-14T10:49:07

Rated 5 out of 5

Worth it!

An amazing AIO. the LCD screen is a little extra, but it's nice to have something that will visually show you temps.. or if you want a nice little gif to play on it as well. Cannot complain about NZXT coolers, always been great for me in the past and the Z series is no exception.

SON H.

2021-05-05T08:10:03

Rated 5 out of 5

Love it! Highly recommended

Super easy installation. Dropped my CPU temps by 20 degrees! The built in display makes it perfect when you add a gif or have it display temps.

Victor G.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

NZXT Kraken Z53 Specifications

Water Block

Water Block

Jump to...

  • Material

    Block: Copper
    Housing: Plastic

Pump

Jump to...

  • Motor Speed & Power

    800 - 2,800 + 300 RPM, 12V DC, 0.3A

Radiator

Jump to...

  • Material

    Aluminum

Tube

Jump to...

  • Length

    400mm

  • Material

    Ultra-low Evaporation Rubber with Nylon Braided Sleeve

Cap

Jump to...

  • Material

    Aluminum and plastic

  • Display Orientation

    Software adjustable Default and -90 Degree orientation

  • Display Panel Active Area

    2.36" (60mm) diameter

  • Display Color

    24-bit true color LCD

  • Display Resolution

    320 x 320 px

  • Display Brightness

    650 cd/sq. m

  • NZXT RGB Channel Output Voltage

    5V DC

  • NZXT RGB Channel Output LED Qty

    Up to four LED strips - 10 LEDs per strip, Up to five AER RGB fans, Up to six NZXT RGB accessories

Fans

Jump to...

  • Fans

    Aer P 120mm

  • Quantity

    2

  • Speed

    500-2,000 + 300 RPM

  • Air Flow

    18.28 - 73.11 CFM

  • Air Pressure

    0.18 - 2.93mm-H2O

  • Noise

    21-36dBA

  • Bearing

    Fluid Dynamic Bearing

  • Power Consumption

    12V DC, 0.32A, 3.84W

  • Connector

    4-pin PWM

  • Life

    60,000 hours / 6 Years

Compatibility

Jump to...

  • Compatible Socket & CPU

    Intel Socket LGA 1200, 1151, 1150, 1155, 1156, 1366, 2011, 2011-3, 2066
    Intel Core i9 / Core i7 / Core i5 / Core i3 / Pentium / Celeron
    AMD Socket AM4, sTRX4, TR4 (Threadripper bracket not included)
    AMD Ryzen 7 / Ryzen 5 / Ryzen 3 / Ryzen 9 / Threadripper

Physical

Jump to...

  • Dimensions

    Water Block: 3.11 x 2.06" (79 x 52.4mm)
    Radiator: 4.84 x 10.82 x 1.18" (123 x 275 x 30mm)
    Fans: 4.72 x 4.72 x 1.02" (120 x 120 x 26mm)

Other

Jump to...

  • UPC Code

    815671015181

About NZXT Kraken Z53

FEATURED REVIEWS

Worth it!

By SON H.

An amazing AIO. the LCD screen is a little extra, but it's nice to have something that will visually show you temps.. or if you want a nice little gif to play on it as well. Cannot complain about NZXT coolers, always been great for me in the past and the Z series is no exception.

Love it! Highly recommended

By Victor G.

Super easy installation. Dropped my CPU temps by 20 degrees! The built in display makes it perfect when you add a gif or have it display temps.

The all-new Kraken Z Series is more than just a superior liquid cooling system. With a digitally rotatable display that supports CAM info, custom images, and gifs, the Kraken Z series is more customizable than ever.

NZXT Kraken Z53 Features

  • Bright 2.36" diameter screen supports custom images and CAM system info
  • Adjustable screen orientation in software to accommodate pump head orientation
  • Includes an NZXT RGB connector for compatibility with our AER RGB 2 fans or NZXT RGB accessories
  • All-new 7th Gen Asetek pump providing better cooling and 800RPM whisper-quiet performance
  • NZXT CAM-controlled screen, lighting effects, pump speed, and custom fan curves with 0dB modes
  • Protection with reinforced extended tubing (400mm)

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Bright 2.36" diameter screen supports custom images and CAM system info
  • Adjustable screen orientation in software to accommodate pump head orientation
  • Includes an NZXT RGB connector for compatibility with our AER RGB 2 fans or NZXT RGB accessories
  • All-new 7th Gen Asetek pump providing better cooling and 800RPM whisper-quiet performance
  • NZXT CAM-controlled screen, lighting effects, pump speed, and custom fan curves with 0dB modes
  • Protection with reinforced extended tubing (400mm)

What's in the box:

  • Kraken Z53 240mm Liquid Cooler with LCD Display
  • AMD and Intel Brakets
  • Screws to Mount Unit
  • NZXT 6 Year Limited Warranty
