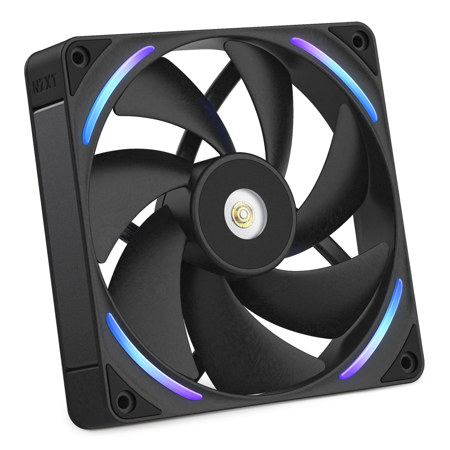

NZXT F Series Performance RGB Fan Black 140mm

SKU: NZRFU14PNB1 MFR: RF-U14PN-B1
$42.74
$49.99
Save: $7.25 (15%)
Earn VIP Reward Points

Key Features

  • Achieve superior PC cooling with airflow options up to 116.0 CFM, ensuring your system runs optimally.
  • Experience quiet operation with a low noise level of 41.0 dBA, perfect for focused work or immersive gaming.
  • Select from various fan sizes, including 120mm, 140mm, 240mm, 280mm, and 360mm, for broad compatibility with diverse PC builds.
  • Customize your setup with vibrant RGB lighting, available in both black and white finishes to match your aesthetic.
  • Benefit from enhanced durability and a long lifespan of 60,000 hours, thanks to the advanced magnetic levitation bearing.
  • Optimize fan speed with precise control, offering up to 3,100 RPM for efficient thermal management in any scenario.
See More Product Details
New Item?Request assistance or get notified
Free Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

NZXT F Series Performance RGB Fan Specifications

General

General

Jump to...
  • Available Colors

    Black, White

  • Available Fan Sizes

    F120X: 120mm, F140X: 140mm, F240X: 240mm, F280X: 280mm, F360X: 360mm

  • Material

    Liquid-crystal polymer (LCP), rubber, PCB

  • Country Of Origin

    China

Performance

Jump to...
  • Speed

    F120X/F240X/F360X: 3,100 +/- 310 RPM
    F140X/F280X: 2,400 +/- 240 RPM

  • Airflow

    F120X/F240X/F360X: 104.0 CFM per fan
    F140X/F280X: 116.0 CFM per fan

  • Static Pressure

    F120X/F240X/F360X: 7.53 mmH2O per fan
    F140X/F280X: 5.78 mmH2O per fan

  • Noise Level

    41.0 dBA per fan

  • Speed (30 dBA)

    F120X/F240X/F360X: 2,300 RPM per fan
    F140X/F280X: 1,700 RPM per fan

  • Airflow (30 dBA)

    F120X/F240X/F360X: 75.5 CFM per fan
    F140X/F280X: 81.0 CFM per fan

  • Static Pressure (30 dBA)

    F120X/F240X/F360X: 4.02 mmH2O per fan
    F140X/F280X: 2.78 mmH2O per fan

  • Rated Voltage

    DC 12V (Fan) / 5V (RGB)

  • Rated Current

    F120X: 0.55A (Fan) / 0.26A (RGB)
    F140X: 0.45A (Fan) / 0.26A (RGB)
    F240X: 1.10A (Fan) / 0.40A (RGB)
    F280X: 0.90A (Fan) / 0.40A (RGB)
    F360X: 1.60A (Fan) / 0.52A (RGB)

  • Input Power

    F120X: 7.9W
    F140X: 6.7W
    F240X: 15.2W
    F280X: 12.8W
    F360X: 21.8W

  • Bearing

    NZXT Magnetic Levitation Stabilizer & Fluid Dynamic Bearing

  • Lifespan

    60,000 hours

Physical

Jump to...
  • Power Connector

    F120X/F140X: PWM 4-pin, NZXT 4-pin RGB, 5V ARGB
    F240X/F280X/F360X: NZXT 8-pin

  • Number of Blades

    7

  • LED Quantity

    F120X/F140X: 16 LEDs
    F240X/F280X: 24 LEDs
    F360X: 32 LEDs

  • Cable Length

    F120X/F240X/F280X/F360X: 23.62" (600mm) (1 Cable)
    F140X: 23.62" (600mm) (2 Cables)

  • Dimensions (L x W x H)

    F120X: 4.7 x 4.7 x 1.18" (120 x 120 x 30mm)
    F140X: 5.5 x 5.5 x 1.18" (140 x 140 x 30mm)
    F240X: 9.45 x 4.7 x 1.18" (240 x 120 x 30mm)
    F280X: 11 x 5.5 x 1.18" (280 x 140 x 30mm)
    F360X: 14.17 x 4.7 x 1.18" (360 x 120 x 30mm)

  • Weight

    F120X: 9.88 oz (280g)
    F140X: 10.97 oz (311g)
    F240X: 18.34 oz (520g)
    F280X: 20.1 oz (570g)
    F360X: 26.45 oz (750g)

  • UPC Codes

    140mm Black: 810074846677 | 360mm (3x 120mm Fans) White: 810074846745 | 240mm (2x 120mm Fans) White: 810074846707 | 120mm Black: 810074846653 | 140mm White: 810074846684 | 280mm (2x 140mm Fans) White: 810074846721 | 360mm (3x 120mm Fans) Black: 810074846738 | 120mm White: 810074846660 | 240mm (2x 120mm Fans) Black: 810074846691 | 280mm (2x 140mm Fans) Black: 810074846714

About NZXT F Series Performance RGB Fan

The NZXT Performance Fans deliver powerful, quiet cooling with LCP construction, optimized blades, and a hybrid bearing system for superior airflow and durability. A reinforced core, advanced motor, and subtle RGB lighting combine performance and style for any gaming PC.

LCP Construction
Liquid-crystal polymer blades and frame maintain their shape at high speeds, resisting flex and vibration for more powerful, consistent cooling.

Optimized Blade Design
Ultra-tight tip-to-frame clearance reduces turbulence and air leakage, maximizing airflow and static pressure at every speed.

Custom Hybrid Bearing
Magnetic levitation keeps the rotor centered and stable at high speeds, while fluid dynamic lubrication reduces friction and wear for smooth, durable, and quiet operation.

Reinforced Core
A metal enclosure reinforces the motor housing, improving structural stability for reliable performance at high speeds.

Advanced Motor
3-phase, 6-pole design delivers smoother, more precise speed control for steady, efficient cooling with less noise.

Refined Design
Brushed aluminum accents and subtle RGB lighting create a clean, modern look that complements any setup.

Multi-Fan, Single-Frame
All-in-one frame design reduces screws and cables for simpler installation and a cleaner-looking build. (For F240X/F280X/F360X Fan).

Digital Control
Fine-tune fan speeds and RGB lighting effects through NZXT CAM or motherboard software. Requires NZXT Control Hub or NZXT motherboard required, sold separately.

Performance Meets Precision
With every element engineered for superior cooling, NZXT Performance fans - our most powerful yet - feature LCP construction, optimized blades, and hybrid bearings to deliver exceptional airflow and static pressure with minimal noise, accented by subtle lighting for a premium, personal touch.

NZXT F Series Performance RGB Fan Features

  • LCP Construction: Liquid-crystal polymer blades and frame resist flex and vibration for steady airflow and quiet cooling
  • Optimized Blade Design: Minimal tip-to-frame gap reduces turbulence and leakage, maximizing airflow and static pressure
  • Excels Everywhere: Whether used for intake, exhaust, radiators, or heatsinks, these fans deliver powerful cooling in any configuration
  • Reinforced Metal Core: Metal housing stabilizes the motor and bearings for greater durability and reliability
  • Custom Hybrid Bearings: Magnetic levitation and fluid dynamics combine to reduce friction, vibration, and long-term wear
  • 3-Phase 6-Pole Motor: Provides precise speed control and high efficiency to help reduce noise and power draw
  • Refined Design: Brushed aluminum sides and subtle RGB lighting add a clean, premium finish to any build
  • Digital Control: Manage with CAM or any motherboard, CAM requires NZXT Control Hub or motherboard, Not Included

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Achieve superior PC cooling with airflow options up to 116.0 CFM, ensuring your system runs optimally.
  • Experience quiet operation with a low noise level of 41.0 dBA, perfect for focused work or immersive gaming.
  • Select from various fan sizes, including 120mm, 140mm, 240mm, 280mm, and 360mm, for broad compatibility with diverse PC builds.
  • Customize your setup with vibrant RGB lighting, available in both black and white finishes to match your aesthetic.
  • Benefit from enhanced durability and a long lifespan of 60,000 hours, thanks to the advanced magnetic levitation bearing.
  • Optimize fan speed with precise control, offering up to 3,100 RPM for efficient thermal management in any scenario.

What's in the box:

  • NZXT F Series Performance RGB Fan
  • 4x Mounting Screws
  • 4x Radiator Screws
  • 4x Washers
  • Adapter Cable for F240X/F280X/F360X Only
  • NZXT 5 Year Limited Warranty
