26% Off

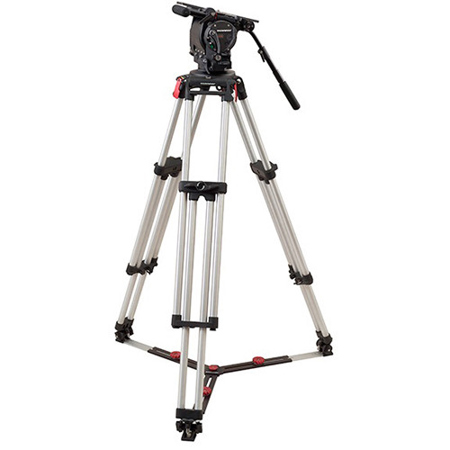

OConnor Ultimate 2575D Fluid Head with C12210001 Cine HD 2-Section Aluminum Alloy Tripod and C1221-00015 Ground Spreader

SKU: OCC2575DHCFS MFR: C2575-CINEM-F
Earn VIP Reward Points

Includes Free Gift ($8.95 Value)

ULZR015
Ulanzi UURig R015 Swivel and Tilt Fabulous Monitor Mount with Cold Shoe Mount

Key Features

  • Achieve smooth, professional footage with the OConnor fluid head's precise control.
  • Capture stable shots on any terrain using this video tripod with ground spreader.
  • Supports up to 90 lbs, perfect for cinema cameras and heavy lens configurations.
  • Enjoy a versatile height range, from 33.6" to 69.2", for varied shooting needs.
  • Durable aluminum alloy tripod ensures reliability for demanding film projects.
  • Benefit from quick setup with the Euro-style quick release platform and plate.
See More Product Details
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

OConnor 2575D + Cine HD Specifications

Fluid Head

Fluid Head

Jump to...
  • Load Capacity

    Up to 90 lbs (40.82kg)

  • Diameter/Thread

    Delivered without base and tiedown (to be bought separately)

  • Bases

    Mitchell, 150mm

  • Counter Balance System

    Continuously variable dual-axis sinusoidal

  • Platform

    OConnor Plate
    4.7" (120mm) Euro Plate
    Panavision Dovetail Plate
    Arriflex Dovetail Plate
    Arri 24" (60.96cm) Plate

  • Counter Balance Range

    At 4" (102mm): 0 to 133 lbs (60.33kg)
    At 6" (152mm): 0 to 105 lbs (47.63kg)
    At 8" (203mm): 0 to 87 lbs (39.46kg)

  • Center of Gravity

    2 to 18

  • Quick Release/Wedge Plate

    Accepts standard ARRI of Panavision dovetail plate (sold separately)

  • Balance Plate

    Sliding (sold separately)

  • Tilt Drag

    OConnor continuously variable fluid drag

  • Tilt Range

    +90 to -90 deg.

  • Tilt Lock

    Caliper brake + separate horizontal center lock

  • Pan Range

    360 deg.

  • Pan Lock

    Caliper brake

  • Leveling Bubble/Illuminated

    Illuminated

  • Handles

    30 deg.

  • Temperature Range

    -40 to 140 deg. F (-40 to 60 deg. C)

  • Load Capacity

    309 lbs (140.16kg)

  • Maximum Height

    69.2" (175.77cm)

  • Minimum Height

    33.6" (85.34cm)

  • Folded Length

    40.4" (102.62cm)

  • Head Attachment Fitting

    Mitchell

  • Collapsed Width

    28.2cm (11.10")

  • Leg Material

    Aluminum alloy

  • Leg Stages/Sections

    1/2

  • Leg Lock Type

    Rotary clamps

  • Independent Leg Spread

    Yes

  • Leg Spiked/Retractable Feet

    Spiked- Dual

  • Center Column Type

    No

General

Jump to...
  • Dimensions (HxWxD)

    Fluid Head: 8.4 x 12.4 x 8.6" (21.34 x 31.50 x 21.84cm)

  • Weight

    Fluid Head: 22.9 lbs (10.39kg)
    Tripod: 29.3 lbs (13.29kg) (with Spreader)

About OConnor 2575D + Cine HD

Because professional photography and videography require equipment that offers both stability and flexibility, the Ultimate 2575D Fluid Head with C12210001 Cine HD 2-Section Aluminum Alloy Tripod and C1221-00015 Ground Spreader stands as a top-tier choice. This sturdy and reliable product is the flagship of OConnor's Ultimate range, renowned for its high-quality features and durable construction.

The 2575D fluid head, a successor to the highly successful 2575 series, is a testament to OConnor's commitment to innovation and improvement. It boasts a patented sinusoidal counterbalance system, ensuring accurate balance at any point in the tilt range. This, combined with the stepless, ultra-smooth pan and tilt fluid drag, provides unparalleled control and stability for film-style shooting.

The fluid head also features platform controls conveniently located on the operator's side, a platform release lever with a one-touch finger-actuated safety release catch, dual platform scales, and four handle rosettes. A soft hand rest on the left side enhances user comfort, while the infinitely adjustable counterbalance, easily altered with a collapsible counterbalance crank knob and numerical readout, accommodates weights from 0-90lbs.

Complementing the fluid head is the Cine HD 2-Section Aluminum Alloy Tripod. This versatile and robust tripod is designed to safely support heavy payloads up to 309 lbs. Its two-section design allows for greater adjustability and flexibility, making it an ideal choice for various shooting scenarios.

The package also includes a C1221-00015 Ground Spreader, providing additional stability on uneven surfaces. This high-quality, reliable, and versatile combination of fluid head, tripod, and ground spreader is designed to meet the demands of professional filming and photography.

OConnor 2575D + Cine HD Features

  • Patented sinusoidal counterbalance system for precise balance control
  • Stepless pan & tilt fluid drag for smooth, stable motion
  • Ergonomic platform release lever with safety catch for quick adjustments
  • Adjustable counterbalance with collapsible crank knob for varied payloads
  • Heavy-duty Cine HD tripod supports up to 309 lbs for secure equipment handling
  • Includes ground spreader for enhanced stability on uneven terrain

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve smooth, professional footage with the OConnor fluid head's precise control.
  • Capture stable shots on any terrain using this video tripod with ground spreader.
  • Supports up to 90 lbs, perfect for cinema cameras and heavy lens configurations.
  • Enjoy a versatile height range, from 33.6" to 69.2", for varied shooting needs.
  • Durable aluminum alloy tripod ensures reliability for demanding film projects.
  • Benefit from quick setup with the Euro-style quick release platform and plate.

What's in the box:

  • Oconnor Ultimate 2575D Fluid Head
  • Euro-Style Quick Release Platform with Touch & Go Plate
  • 2575-137 Top Half of Telescoping Pan Handle (30deg. Bend)
  • 2575-135 Bottom Extension of Telescoping Pan Handle
  • 08281 Mitchell Base
  • 08402 Mitchell Base Tiedown
  • 08414 150mm Ball Base Adapter
  • 08417 Tiedown
  • C12210001 Cine HD Aluminum Alloy Tripod
  • C1221-00015 Ground-Level Spreader
  • OConnor 1 Year Limited Warranty (Extended 1 Year Limited Warranty with Registration)
